Stackable Bin

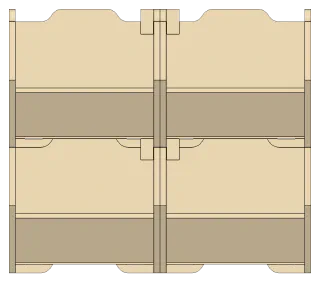

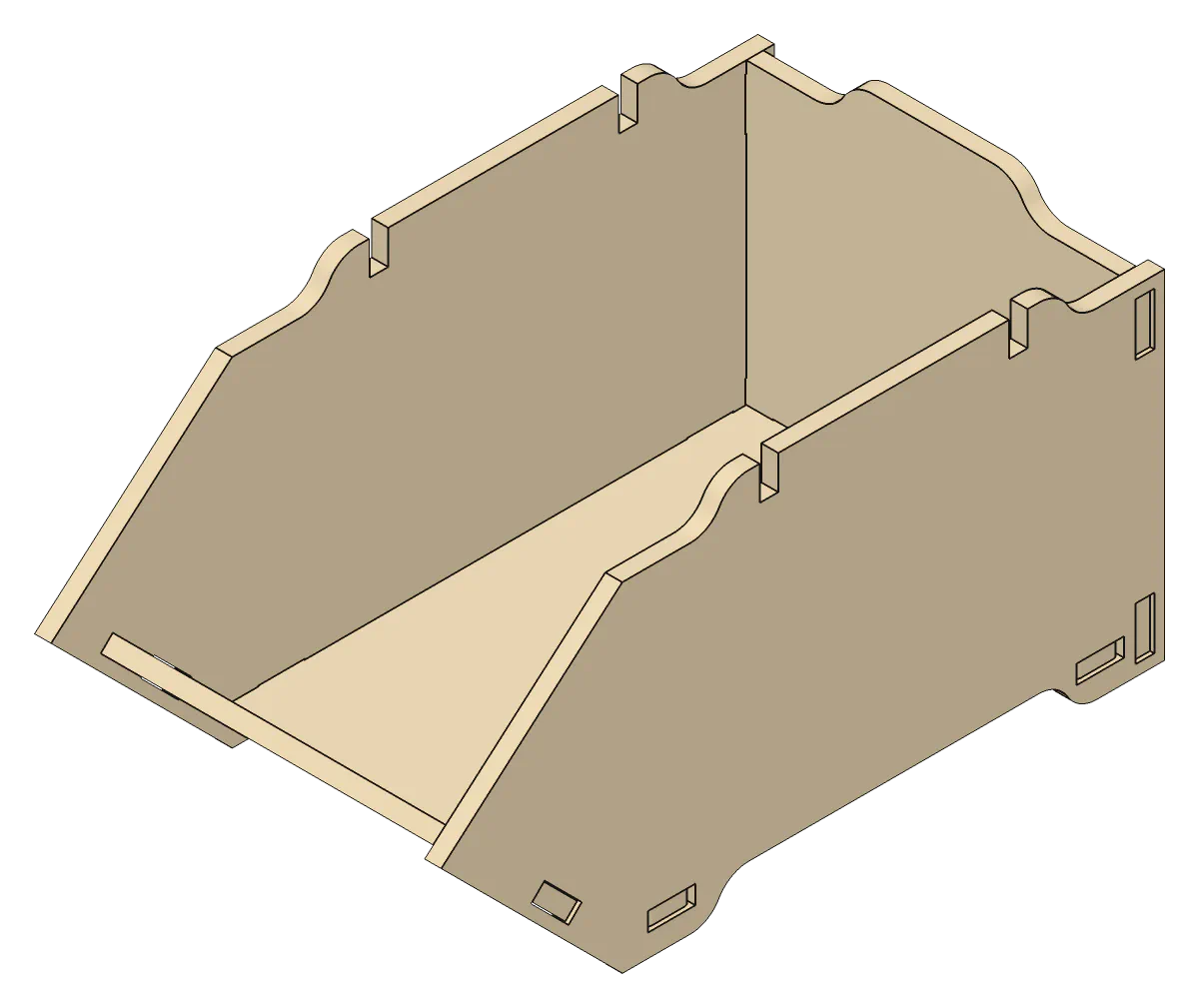

An open-front parts bin with a low sloped front that keeps small parts in. Bins stack: the walls' bottom edges fit over the top edges of the bin below, which holds the bin on it in place. Small clips, cut with it, push onto the touching walls at the back and across the open fronts and link bins side by side.

Pieces5
Outside112 × 141 × 90 mm
PartCount
Bottom1
Back1
Retainer1
Left side1
Right side1

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

Cut by us by the sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Link notches

Notches in the back's top corners for the legs of the Stackable Bin Clip that links the bin at the back to the one beside it.

Clips

Cut a pair of the Stackable Bin Clip with the bin, one for the back and one for the open fronts; the back's notches are cut whatever the link notches say.

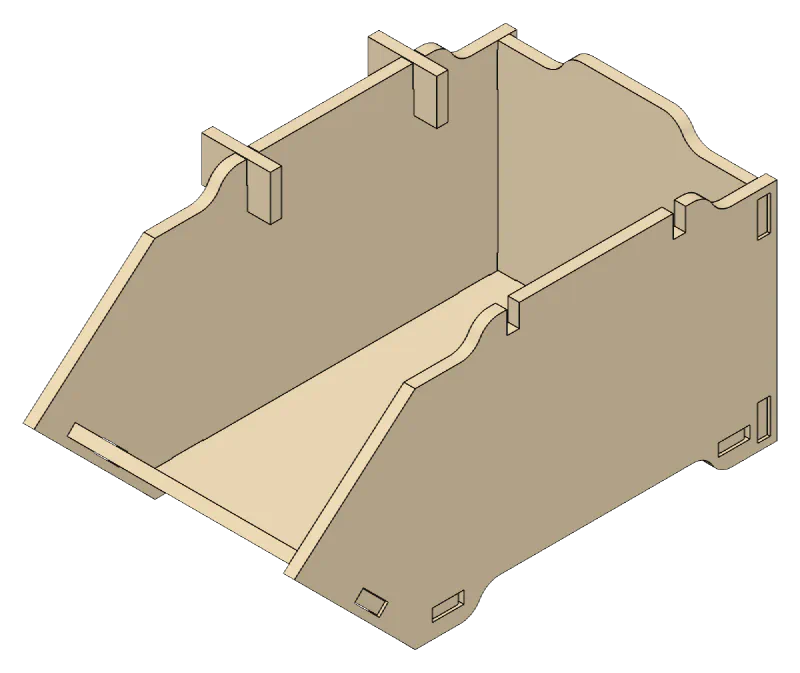

Stackable Bin, clips: A pair

A pair

Outside 112 × 141 × 90 mm

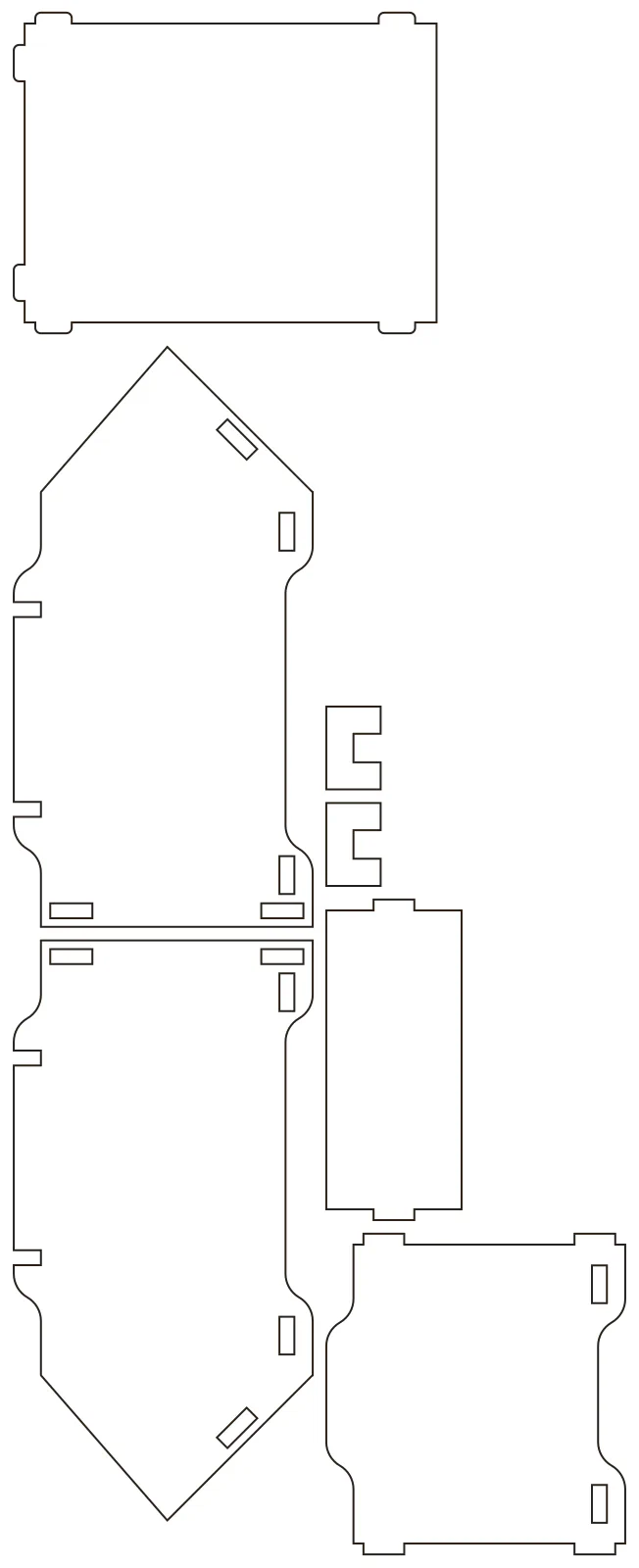

PartsFlat part layout for the Stackable Bin, clips: A pair
