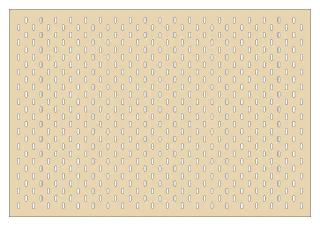

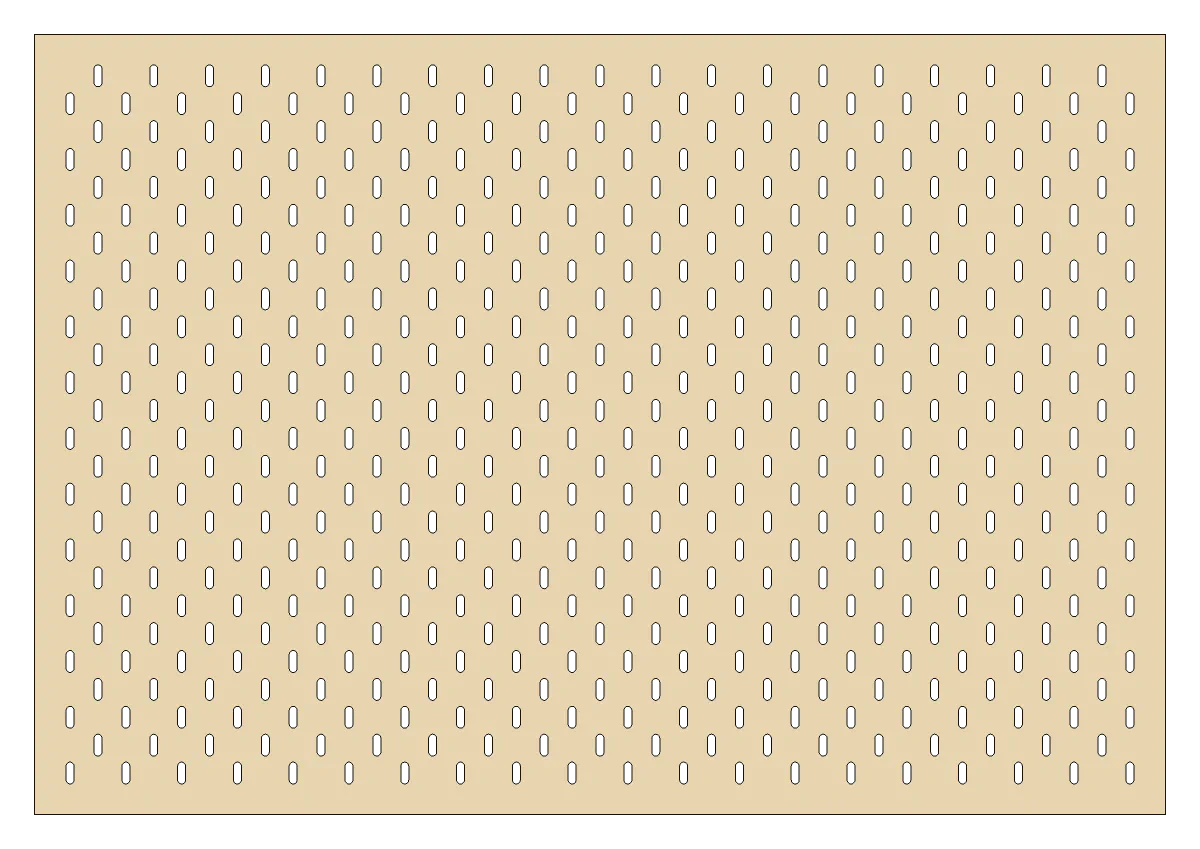

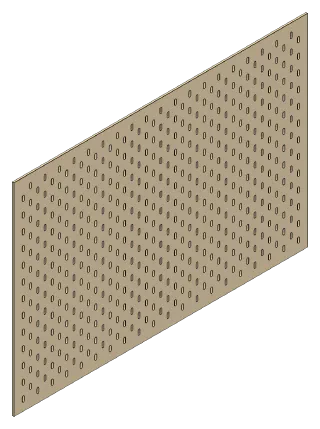

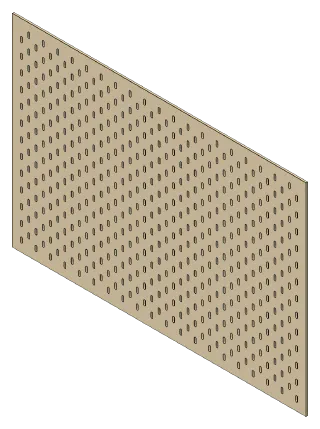

Skadis Panel

A pegboard panel cut with the IKEA Skadis slot pattern. Standard Skadis hooks and accessories clip straight in. Aligned panels hang side by side or stacked as one continuous pegboard, screwed through the gaps between the slots to strapping on the wall.

Pieces1
Size1160 × 560 mm, 5 mm thick
Panel560 × 1160 mm
Slots728
BordersL 27.5 · R 27.5 · B 22.5 · T 22.5 mm

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

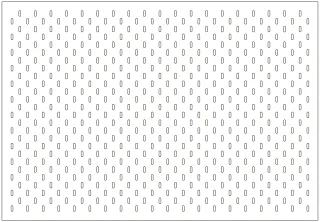

Cut by us by the sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Screw holes

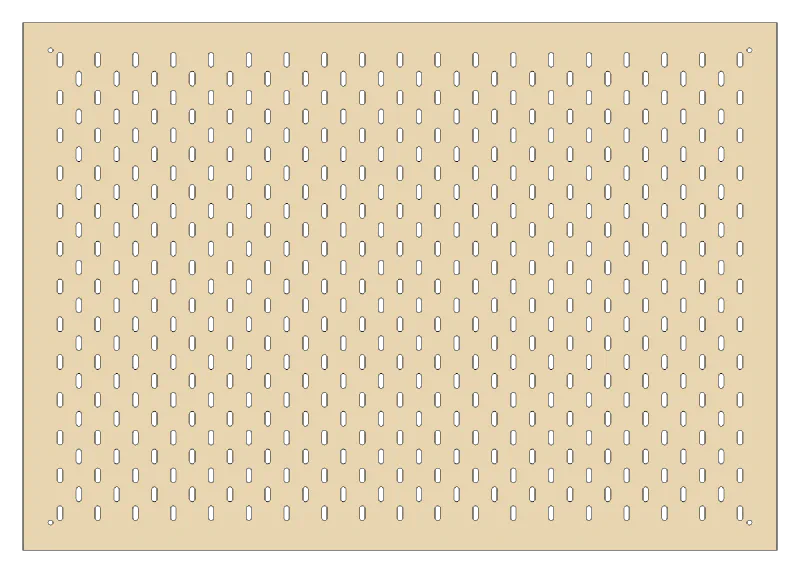

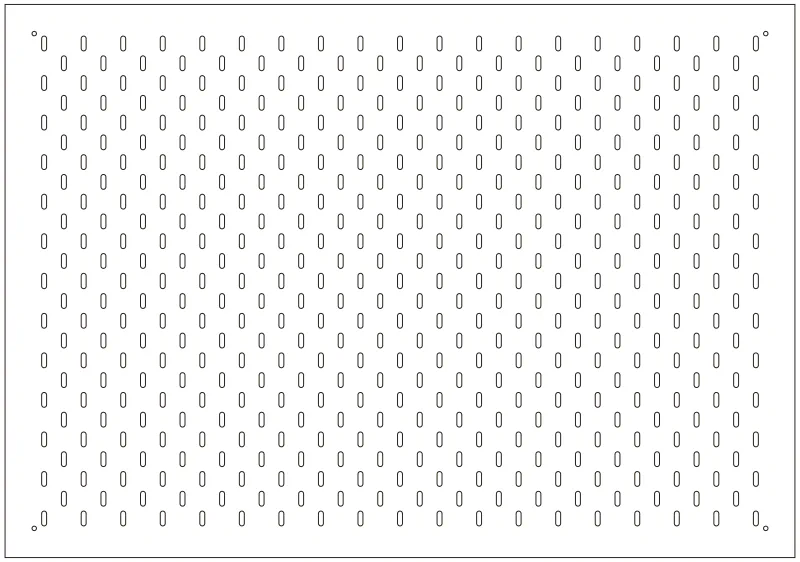

Lines of screw holes through the gaps between the slots, for strapping run across the wall behind the panel; or a row of screw holes along the top and bottom borders, for backing strips. A panel hung on stud spacers needs none: it hangs by its own slots.

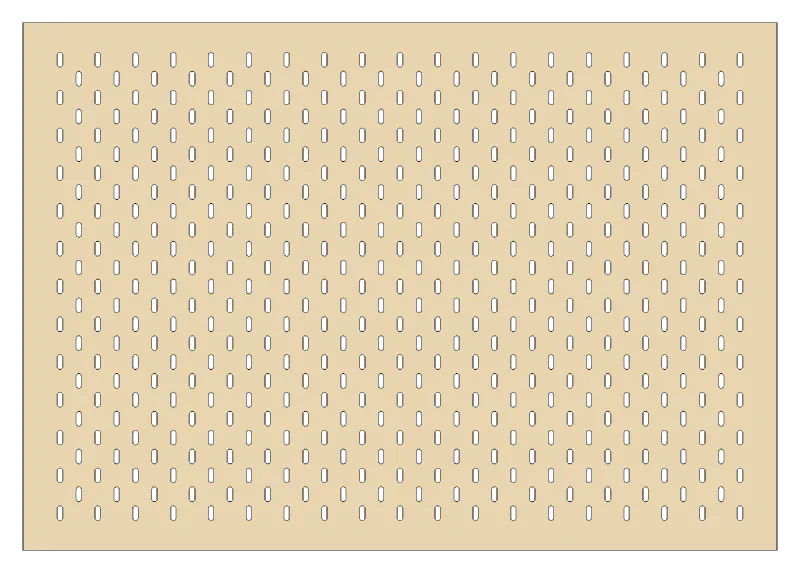

Skadis Panel, screw holes: None

None

Size 1160 × 560 mm, 5 mm thick · Panel 560 × 1160 mm · Slots 812 · Borders L 7.5 · R 7.5 · B 2.5 · T 2.5 mm

PartsFlat part layout for the Skadis Panel, screw holes: None
Skadis Panel, screw holes: For strapping

For strapping

Size 1160 × 560 mm, 5 mm thick · Panel 560 × 1160 mm · Slots 812 · Borders L 7.5 · R 7.5 · B 2.5 · T 2.5 mm · Strapping screw holes 21, in 3 lines of 7

PartsFlat part layout for the Skadis Panel, screw holes: For strapping
