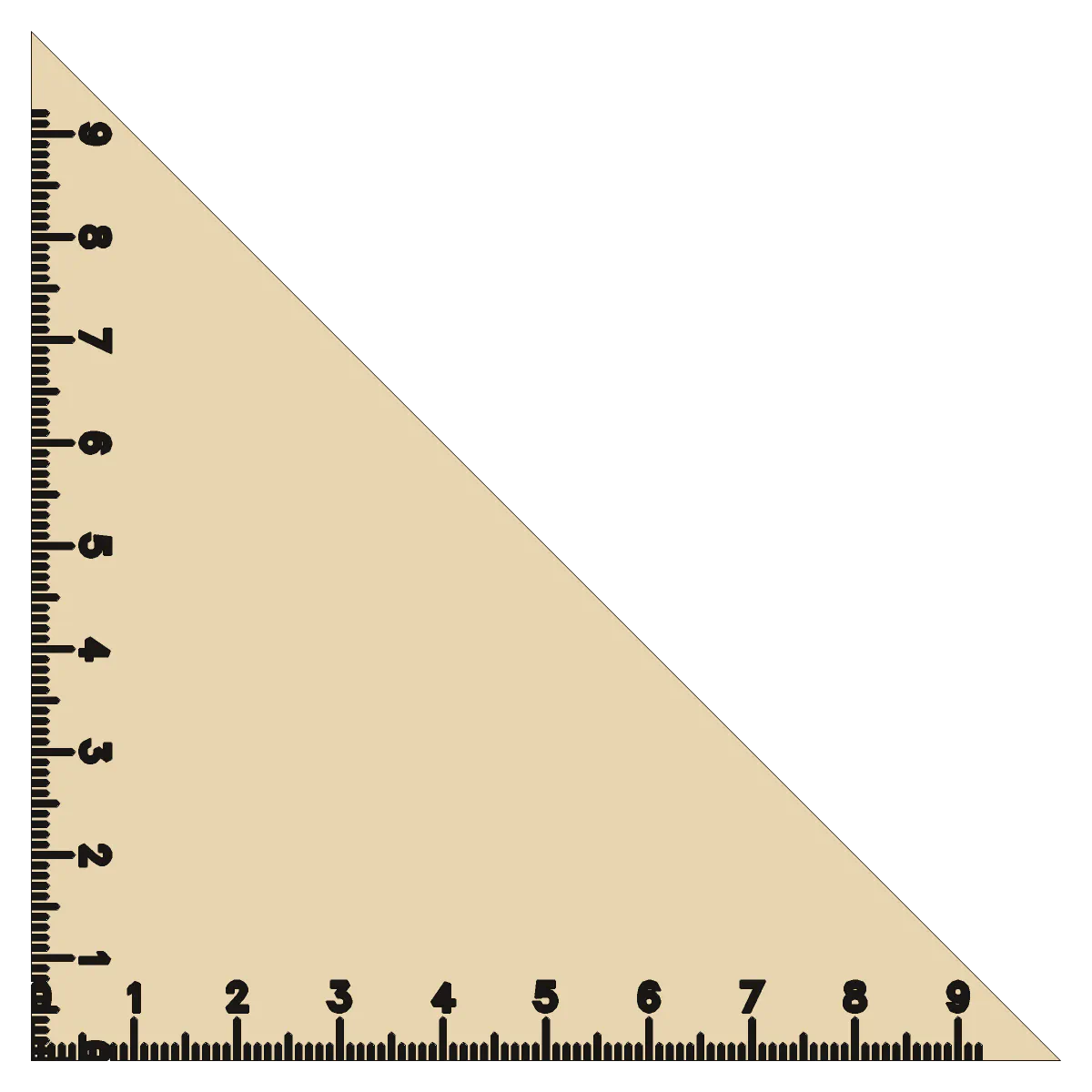

Set square

A drafting set square in 45-45-90 or 30-60-90 form, engraved with millimetre ticks along both legs and degrees along the hypotenuse, a ticked triangular cutout in the middle.

Pieces1
Size80 × 80 mm, 5 mm thick

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

Cut by us by the sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Angles

Which right-triangle to cut.

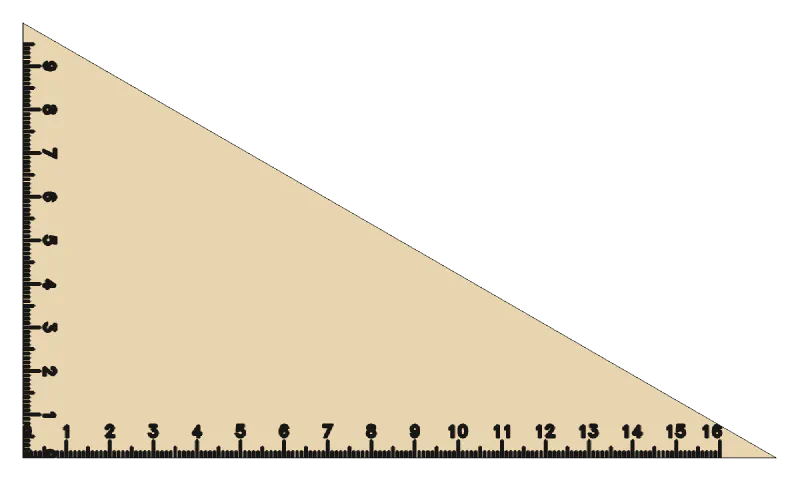

Set square, angles: 30 / 60 / 90

30 / 60 / 90

Size 139 × 80 mm, 5 mm thick

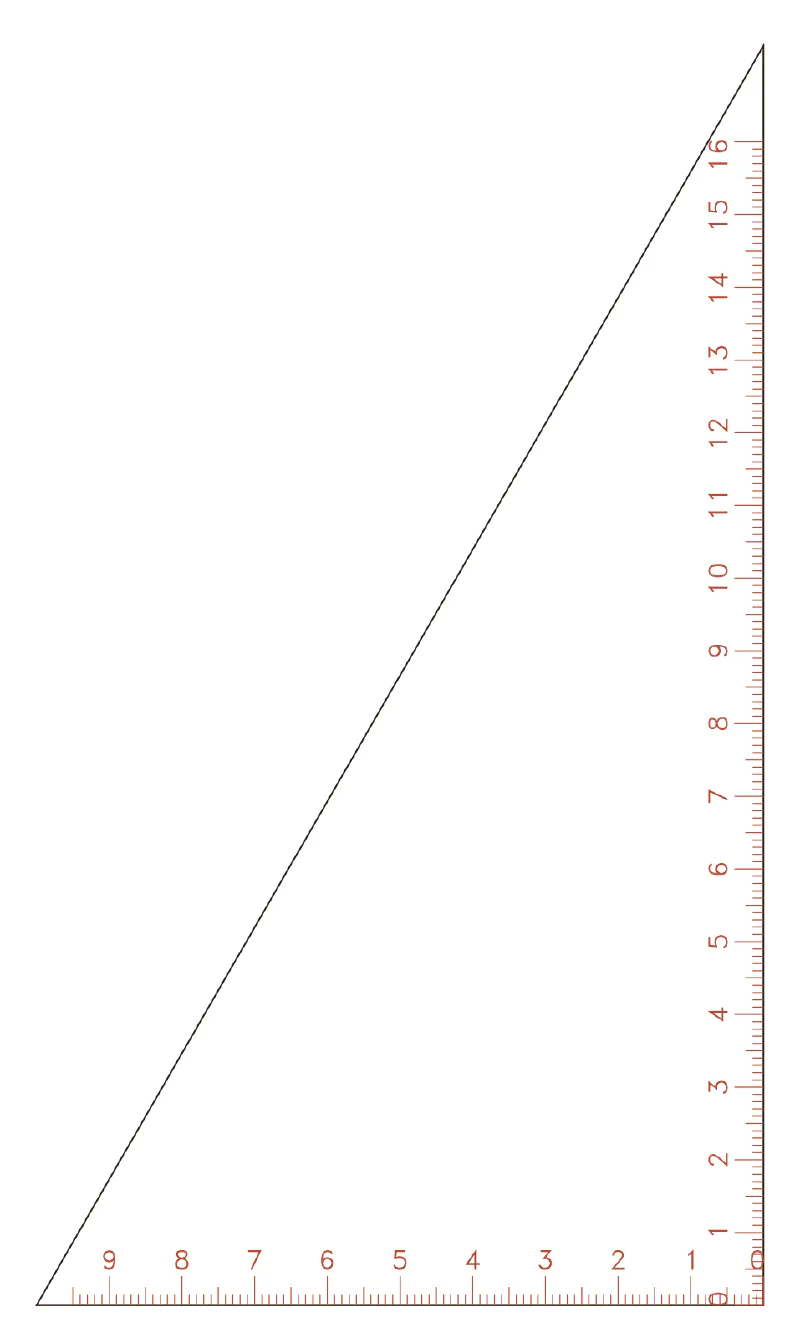

PartsFlat part layout for the Set square, angles: 30 / 60 / 90

Hypotenuse marks

Degrees read from the right angle, a mm scale, or a clean edge.

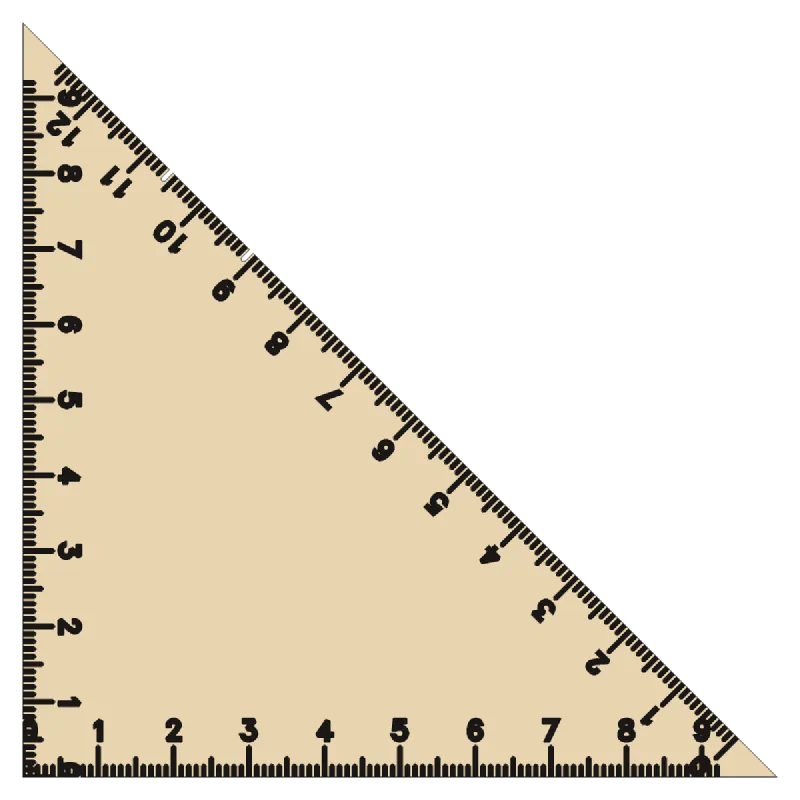

Set square, hypotenuse marks: Cm

Cm

Size 80 × 80 mm, 5 mm thick

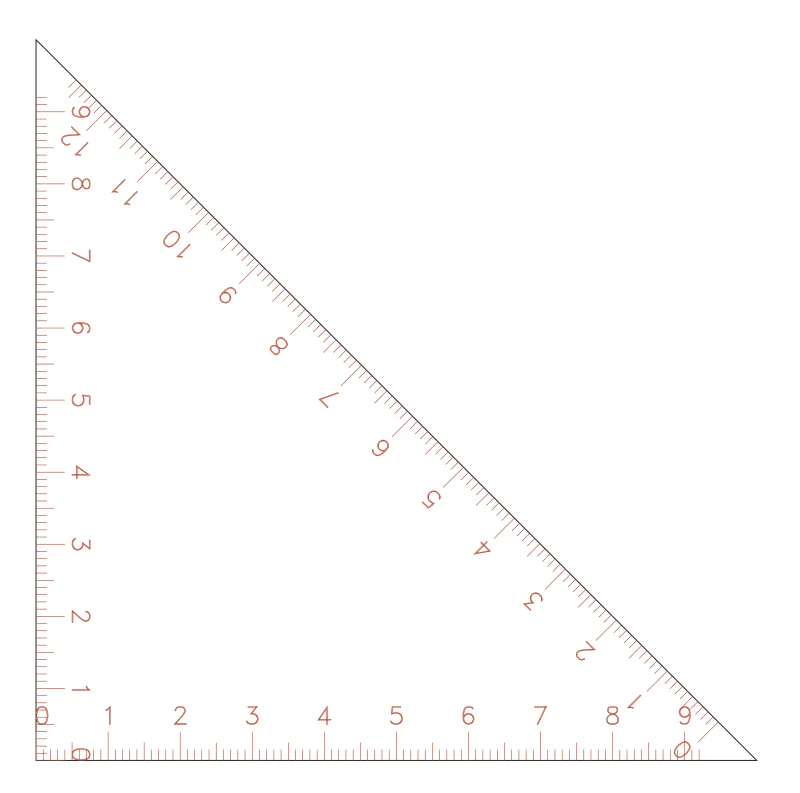

PartsFlat part layout for the Set square, hypotenuse marks: Cm
Set square, hypotenuse marks: None

None

Size 80 × 80 mm, 5 mm thick

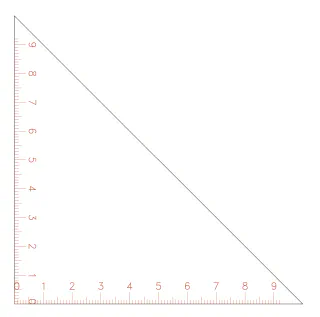

PartsFlat part layout for the Set square, hypotenuse marks: None

Cutout

A triangular cutout in the middle.

Set square, cutout: Solid

Solid

Size 80 × 80 mm, 5 mm thick

PartsFlat part layout for the Set square, cutout: Solid
