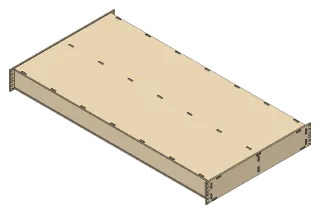

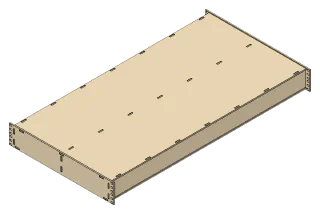

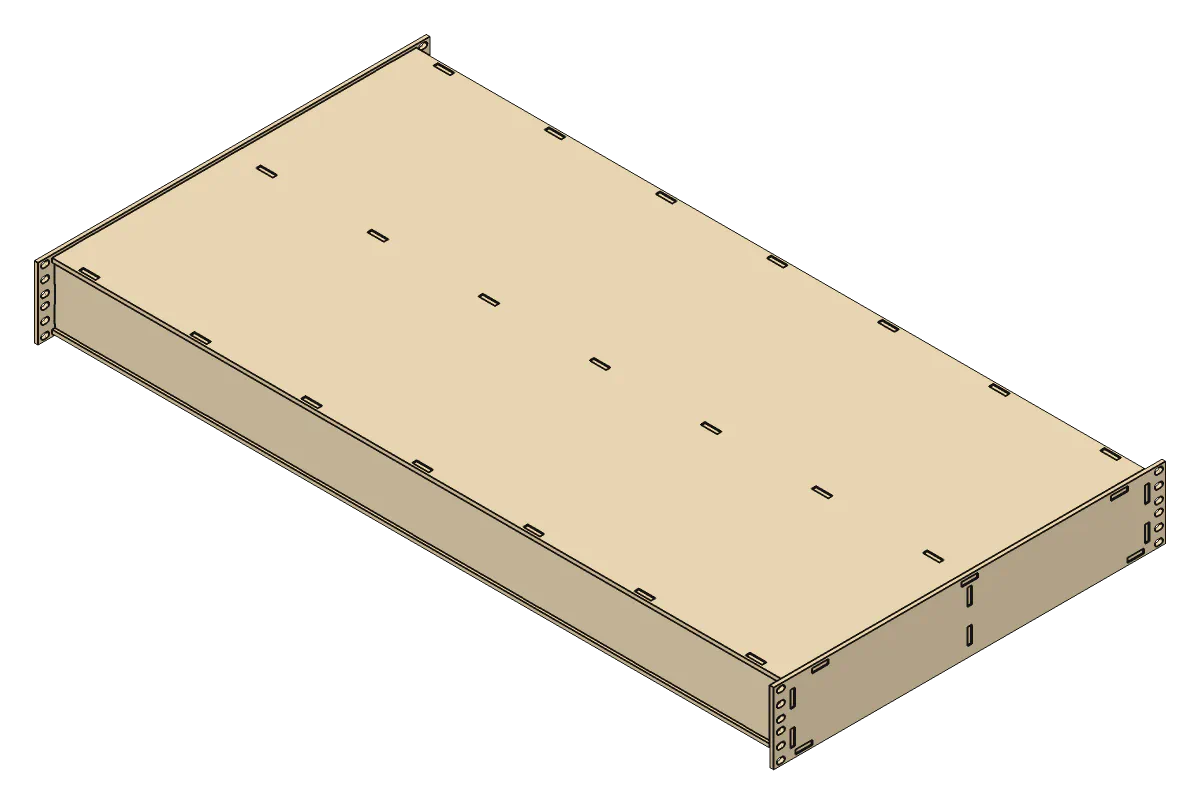

Full-Depth Rack Shelf

A shelf bolted to all four rails of a 19" or 10" rack: a top on side rails, centre supports and bottom straps, all tabbed into both faces, with optional vents; the top may overhang either side, as a desk off the rack's open side.

Pieces8
Size910 W × 483 D × 88 H mm
Panel482.6 × 88.1 mm
Screws24 slots for M6 × 16 mm
Top448 × 900 mm
Supports1
PartCount
Front1
Rear1
Top1
Side2
Support1
Strap2

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

Cut by us on a flat-rate sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Vent the faces

Cut a vent grille in both faces.

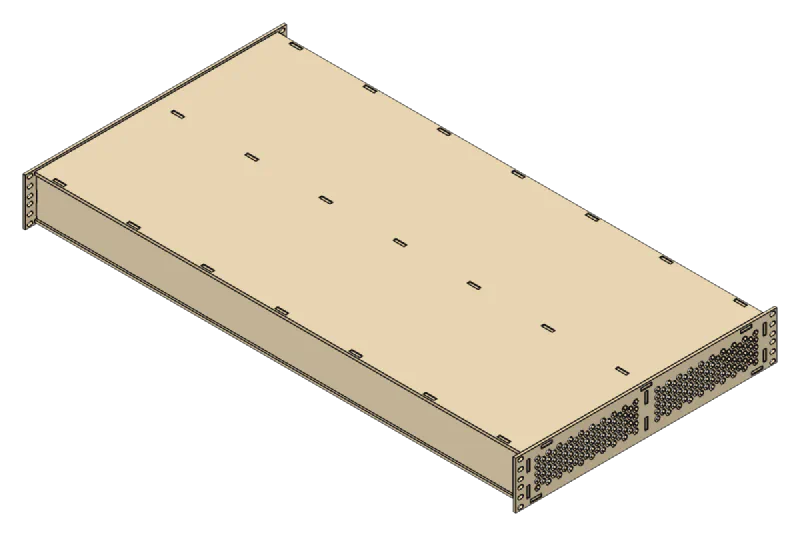

Full-Depth Rack Shelf, vent the faces: Yes

Yes

Size 910 W × 483 D × 88 H mm · Panel 482.6 × 88.1 mm · Screws 24 slots for M6 × 16 mm · Top 448 × 900 mm · Supports 1

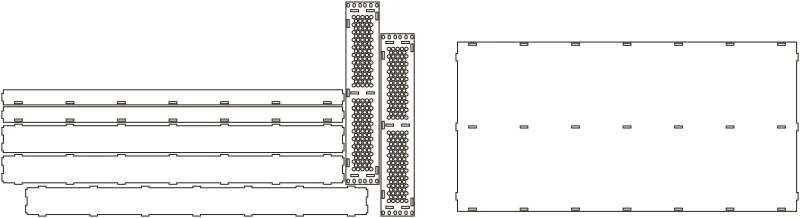

PartsFlat part layout for the Full-Depth Rack Shelf, vent the faces: Yes

Vent the top

Cut a vent grille in the top.

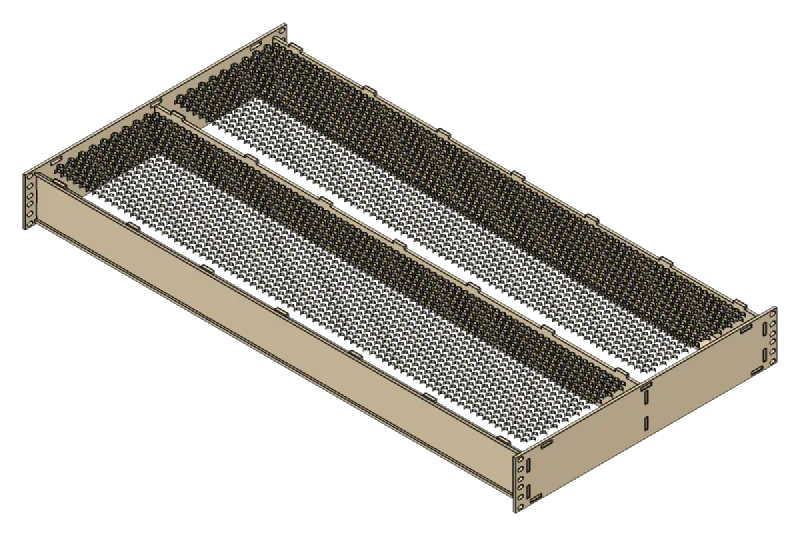

Full-Depth Rack Shelf, vent the top: Yes

Yes

Size 910 W × 483 D × 88 H mm · Panel 482.6 × 88.1 mm · Screws 24 slots for M6 × 16 mm · Top 448 × 900 mm · Supports 1

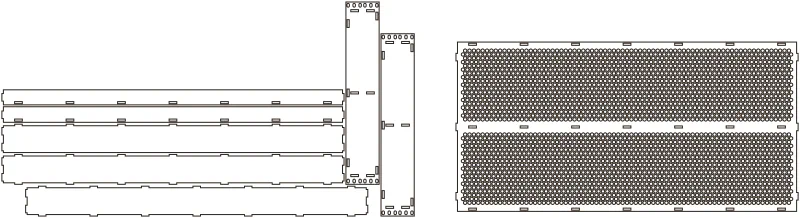

PartsFlat part layout for the Full-Depth Rack Shelf, vent the top: Yes

Height (U)

The product built 3 rack units tall.

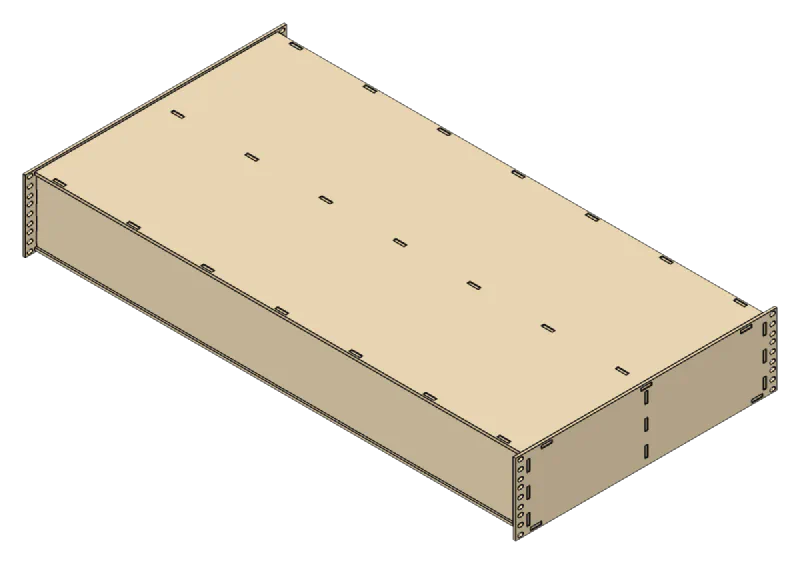

Full-Depth Rack Shelf, height (u): 3U

3U

Size 910 W × 483 D × 133 H mm · Panel 482.6 × 132.6 mm · Screws 36 slots for M6 × 16 mm · Top 448 × 900 mm · Supports 1

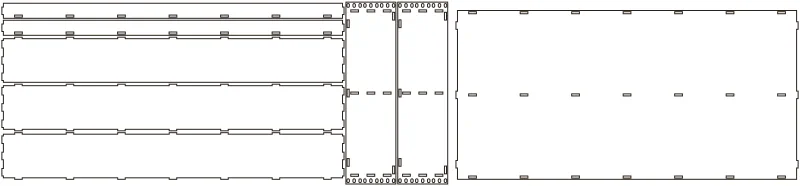

PartsFlat part layout for the Full-Depth Rack Shelf, height (u): 3U

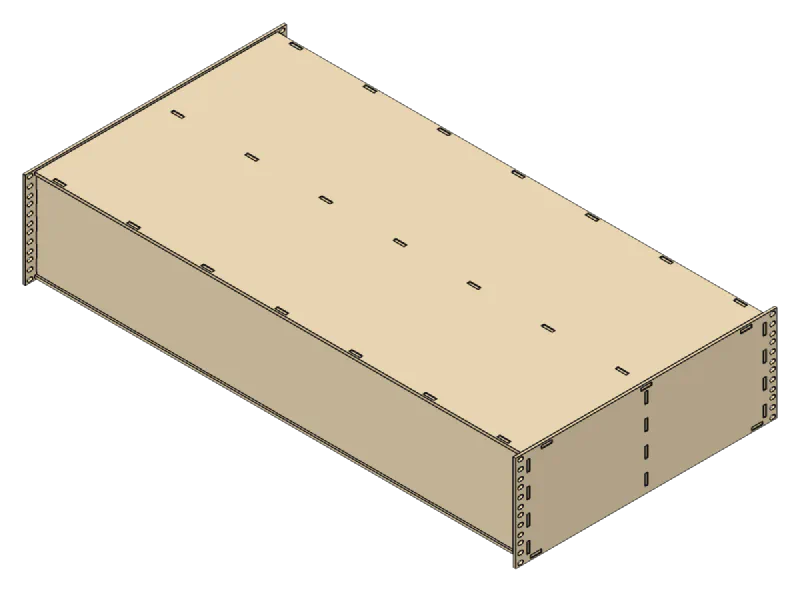

Full-Depth Rack Shelf, height (u): 4U

4U

Size 910 W × 483 D × 177 H mm · Panel 482.6 × 177.0 mm · Screws 48 slots for M6 × 16 mm · Top 448 × 900 mm · Supports 1

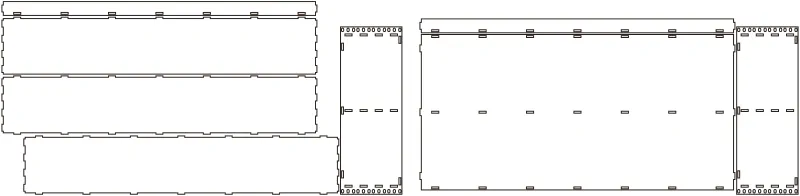

PartsFlat part layout for the Full-Depth Rack Shelf, height (u): 4U
