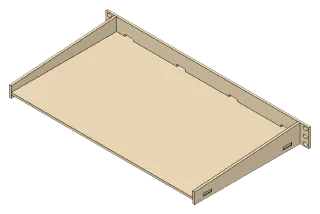

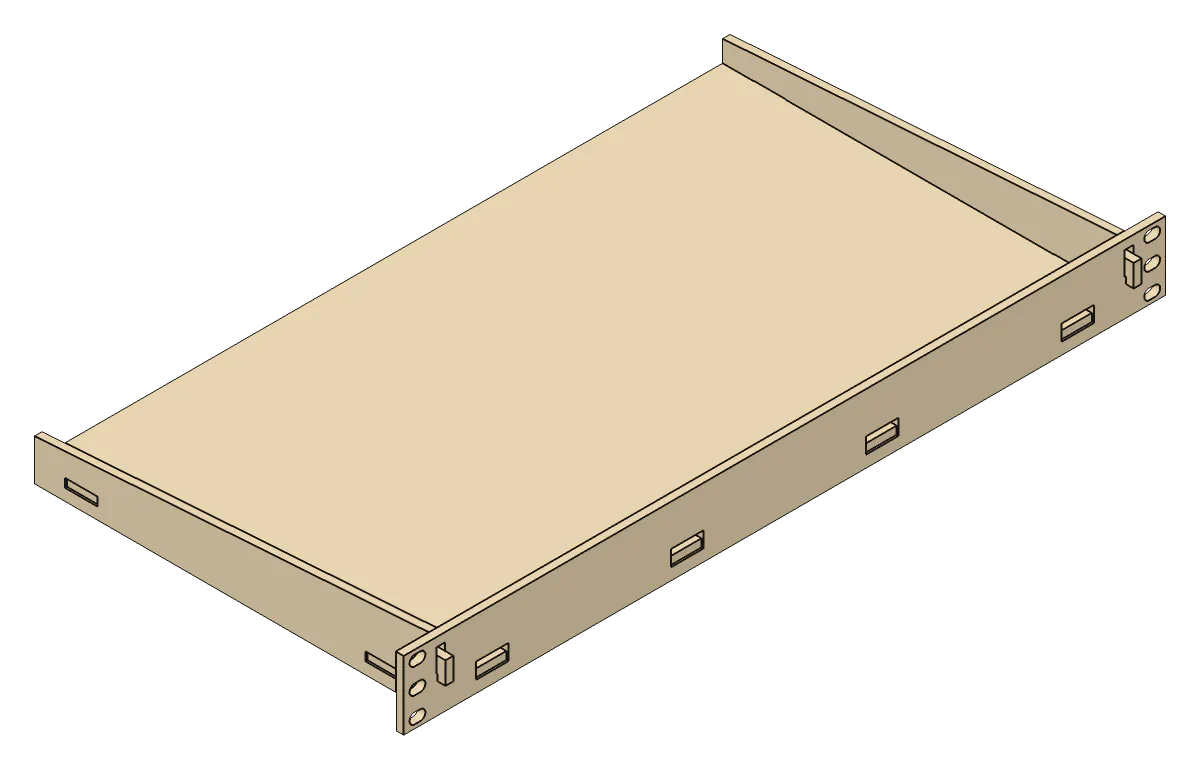

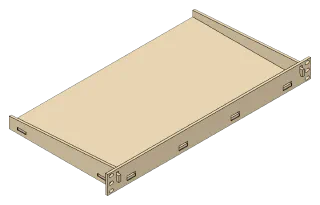

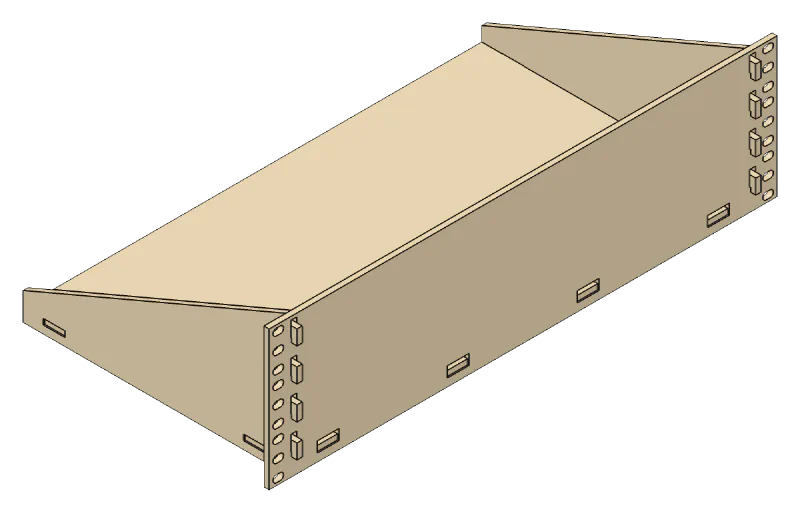

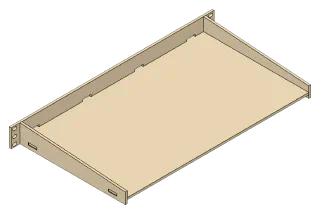

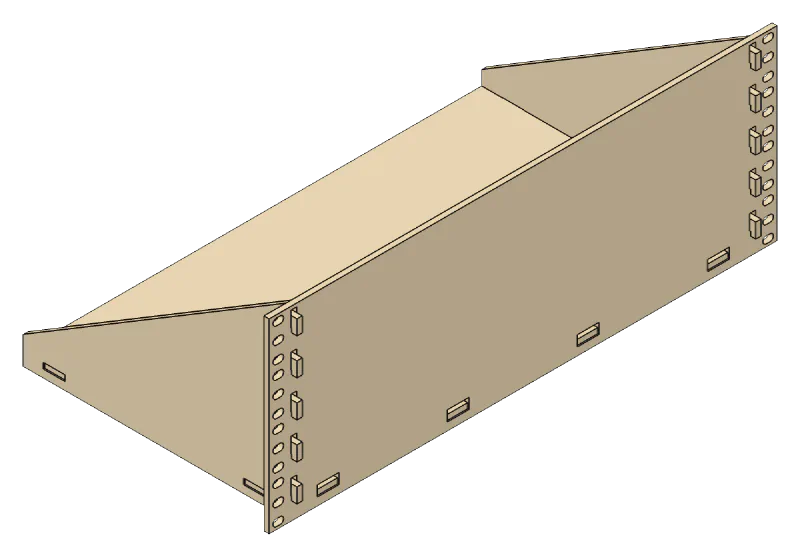

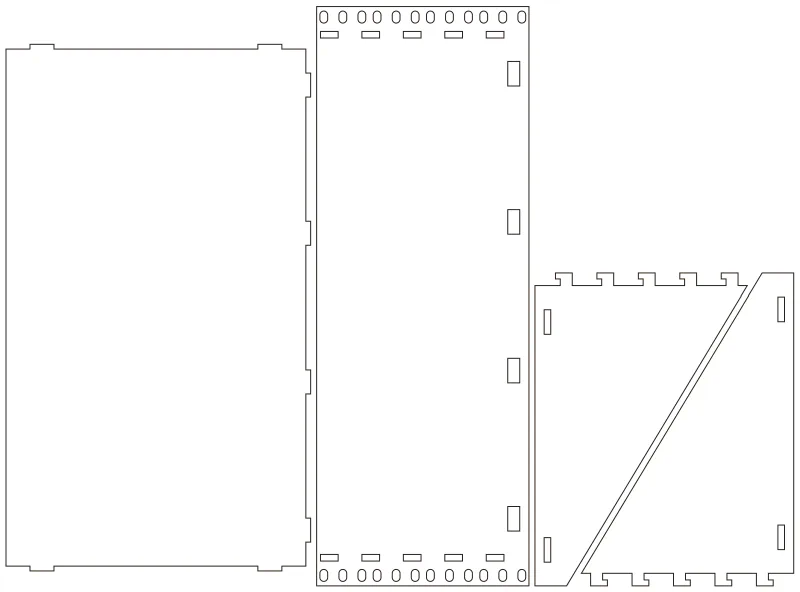

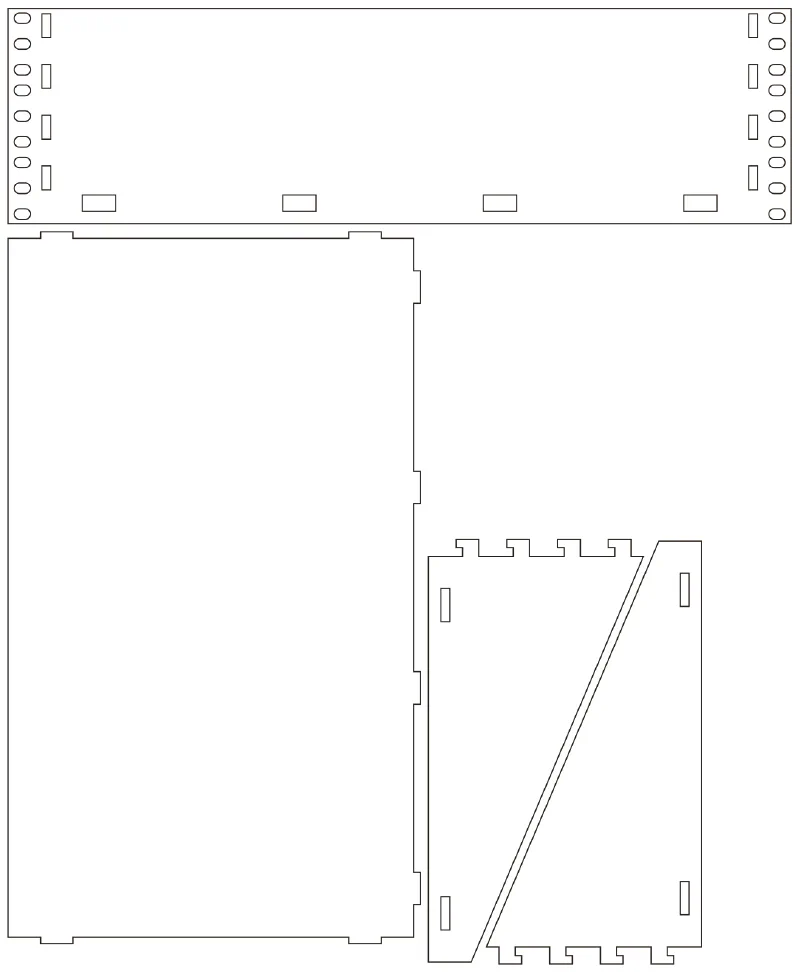

Cantilever Rack Shelf

A 19" or 10" rack shelf hung from the front rails: a deck between two sides that hook onto the face, with an optional back, openings and vents. For light gear such as a modem, a Pi or a small switch.

Pieces4
Size260 W × 483 D × 44 H mm
Panel482.6 × 43.7 mm
Screws6 slots for M6 × 16 mm
Deck431 × 250 mm
PartCount
Face1
Deck1
Side2

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

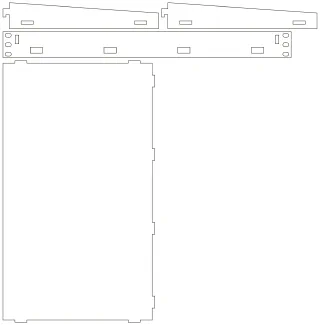

Cut by us by the sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Vent the deck

Cut a vent grille in the deck.

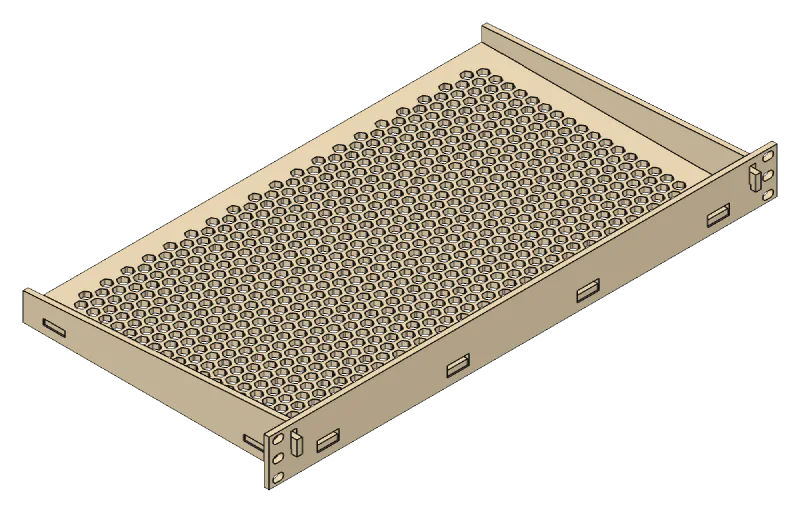

Cantilever Rack Shelf, vent the deck: Yes

Yes

Size 260 W × 483 D × 44 H mm · Panel 482.6 × 43.7 mm · Screws 6 slots for M6 × 16 mm · Deck 431 × 250 mm

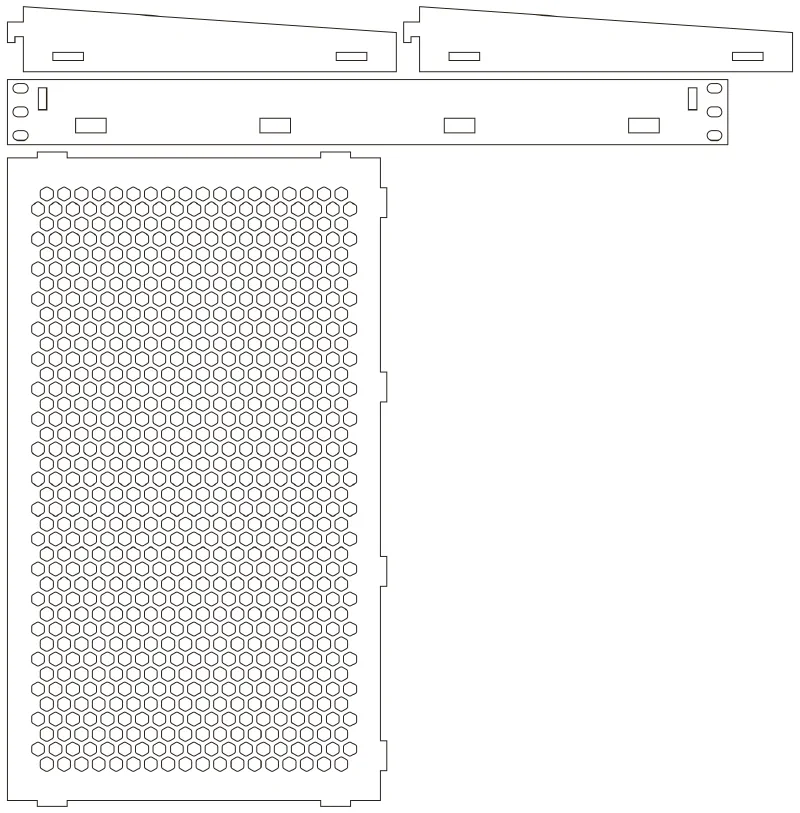

PartsFlat part layout for the Cantilever Rack Shelf, vent the deck: Yes
