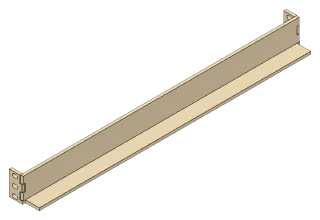

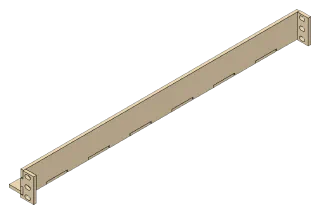

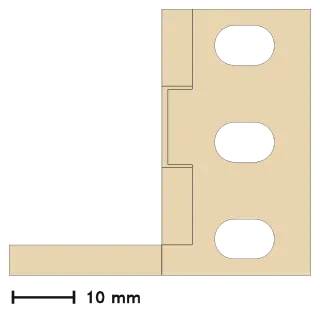

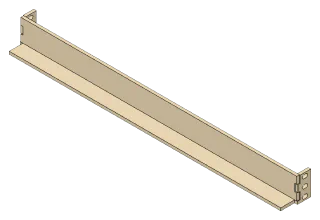

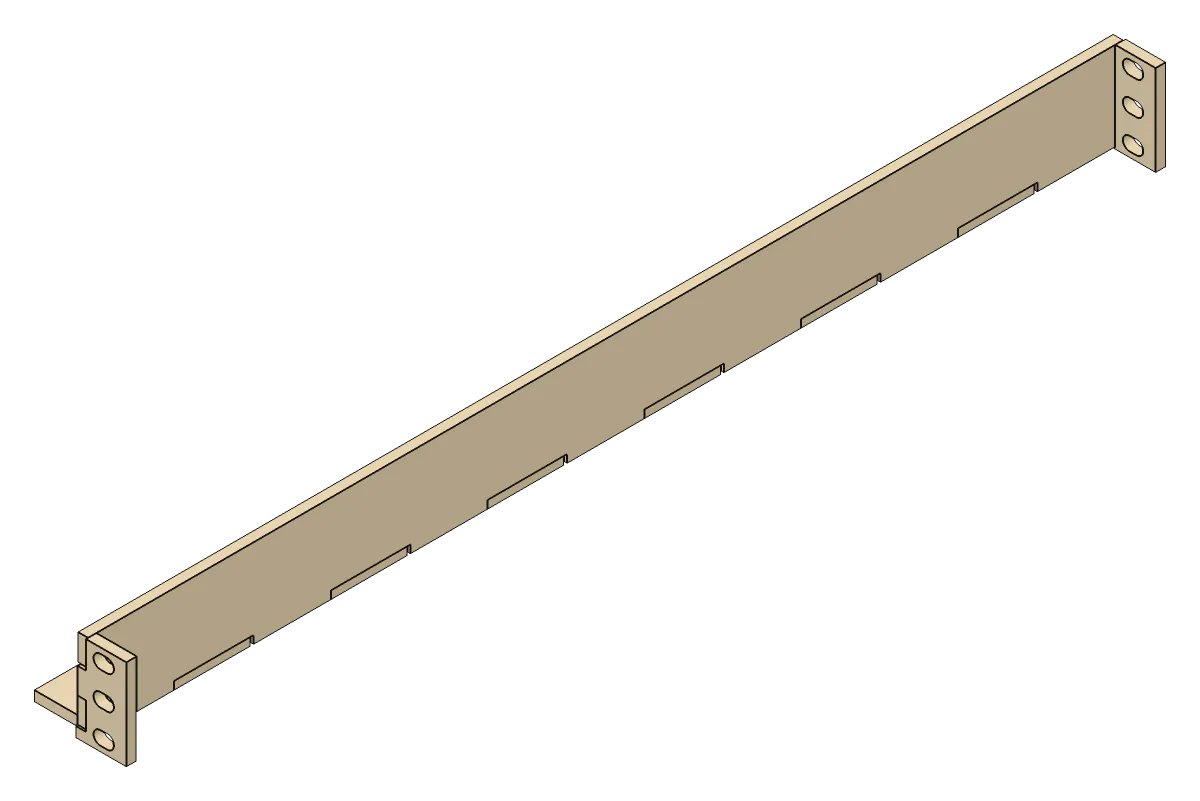

A shelf rail for a four-post rack: a finger-jointed web and ledge with an ear at each end that screws to the posts through three M6 or 10-32 slots a unit. Cut two for a set.
| Pieces | 4 |
|---|---|
| Size | 49 W × 500 D × 44 H mm |
| Rail | 500 mm deep, 1U |
| Screws | 6 a rail, M6 or 10-32 |
| Part | Count |
|---|---|
| Web | 1 |
| Ledge | 1 |
| Ear | 2 |
Sizes are the design's defaults. Most dimensions can be changed.

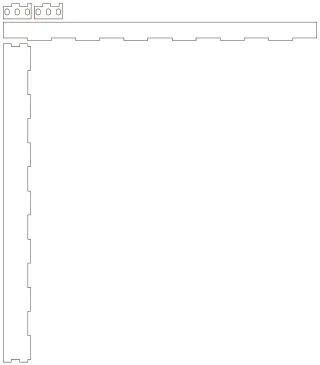

Request a QuoteCut by us on a flat-rate sheet, or buy the SVG for your own machine.
Options
Each option is shown changed on its own, with everything else at the defaults above.
Height (U)
The product built 2 rack units tall.

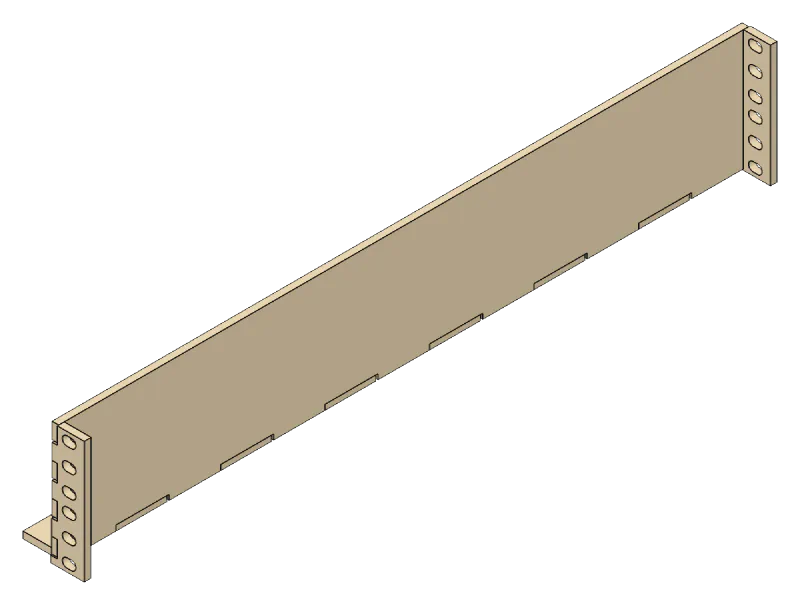

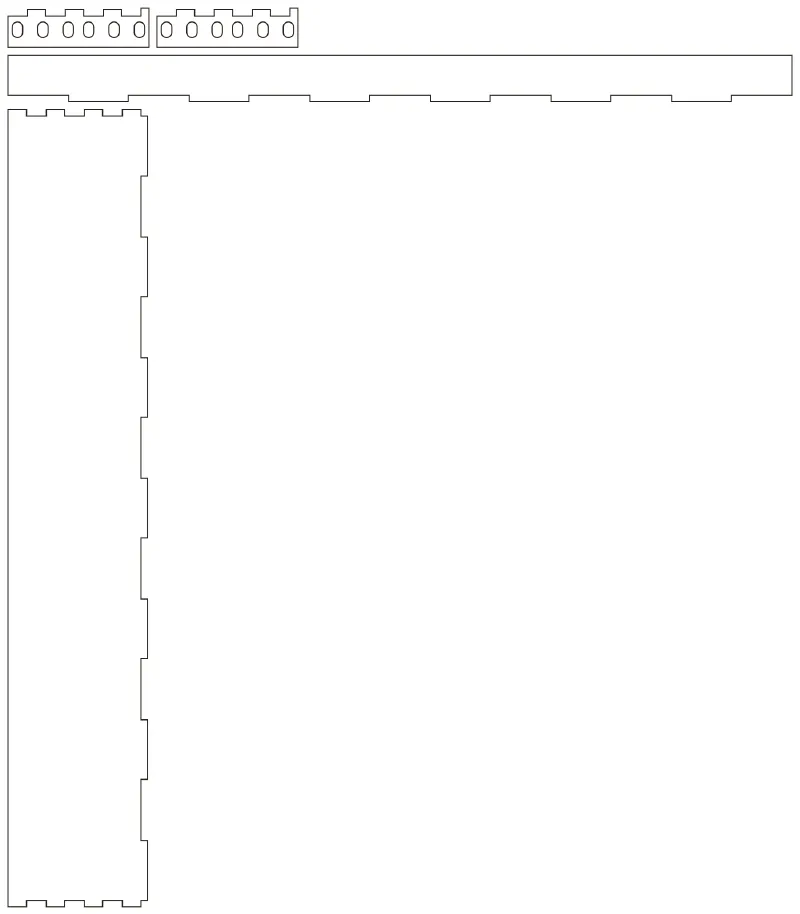

2U
Parts

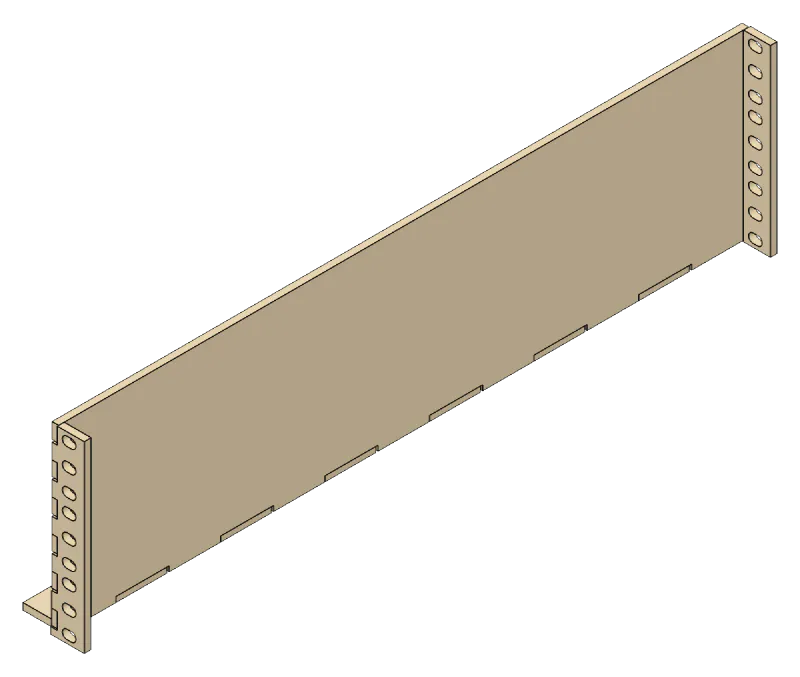

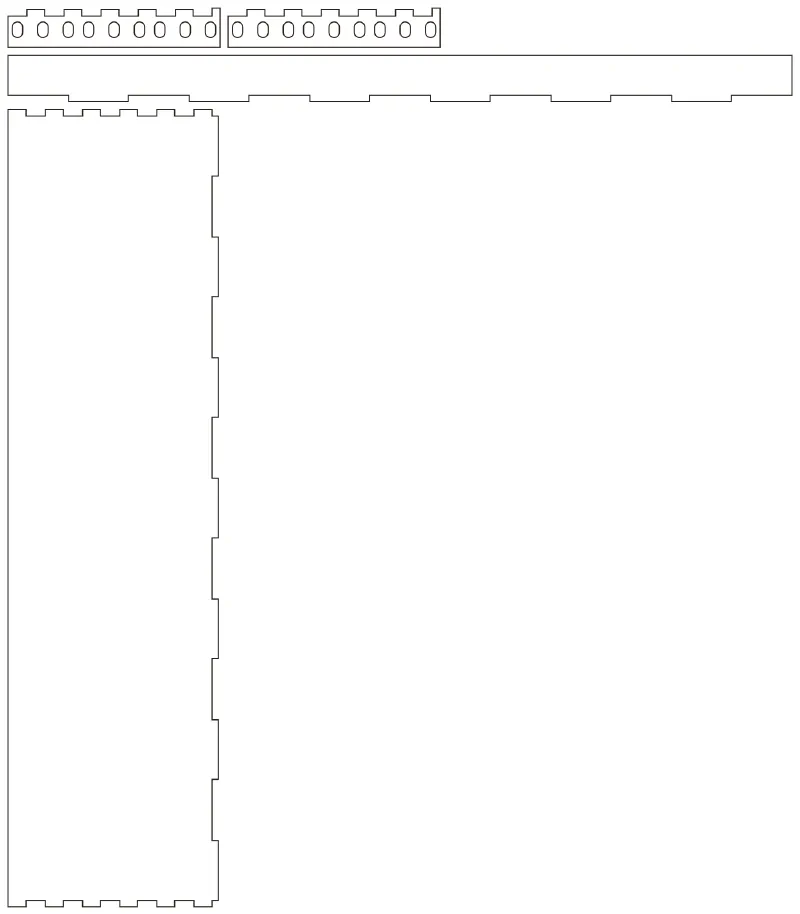

3U
