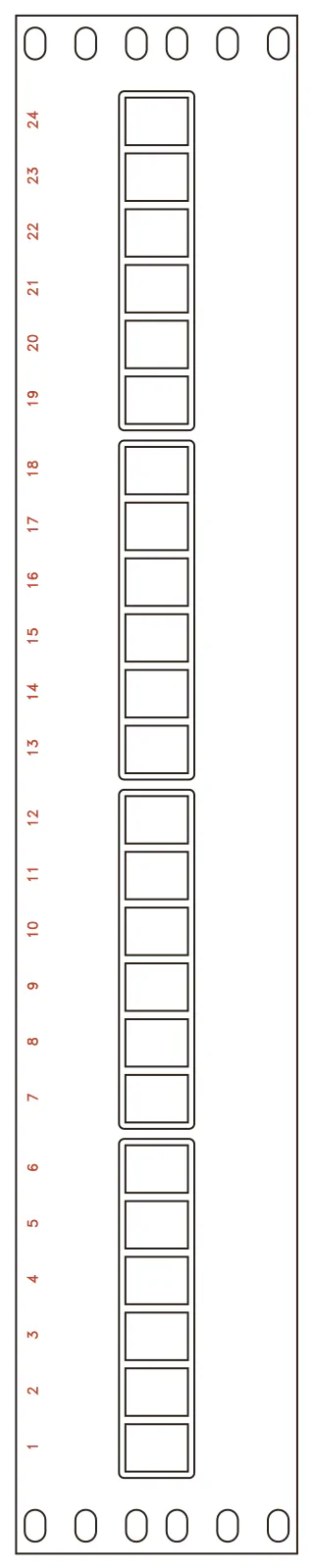

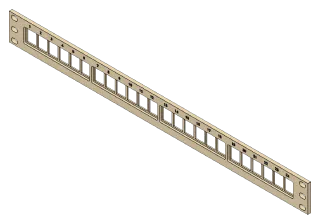

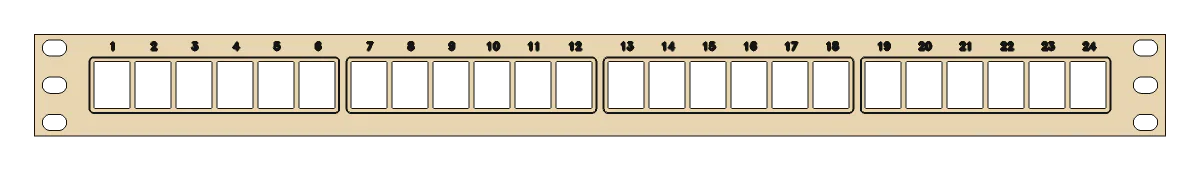

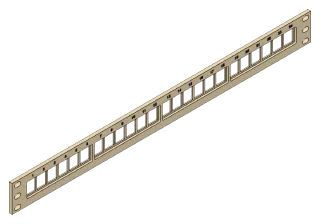

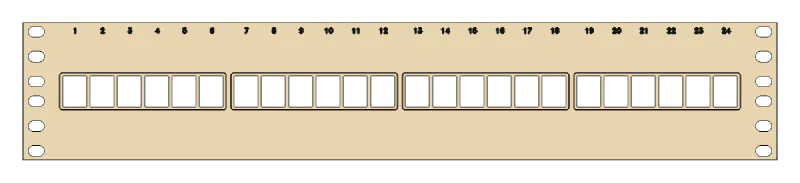

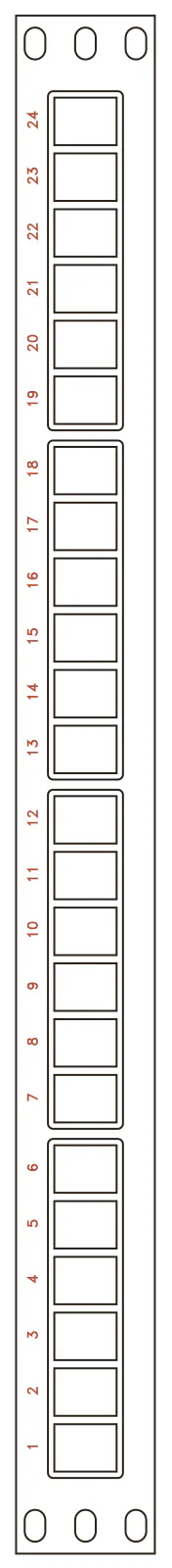

A 19" or 10" keystone patch panel, each group of jack openings sunk in a pocket so the jacks latch on a thin web. Cut on a router.
| Pieces | 1 |
|---|---|
| Size | 483 × 44 mm, 5 mm thick |
| Panel | 482.6 × 43.7 mm |
| Screws | 6 slots for M6 × 16 mm |
| Ports | 24 in 4 groups |
| Pocket depth | 3.0 mm |
Sizes are the design's defaults. Most dimensions can be changed.
Request a QuoteCut by us by the sheet, or buy the SVG for your own machine.
