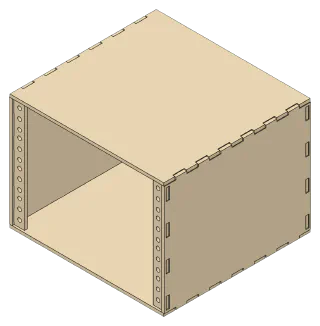

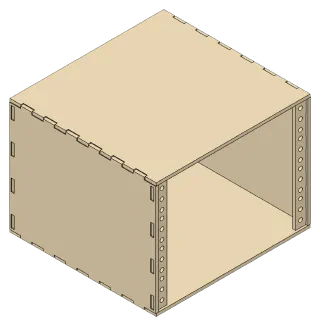

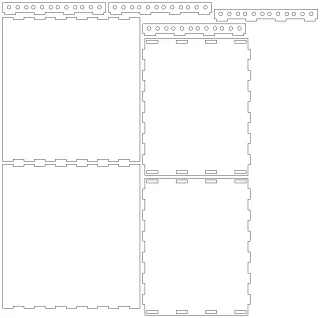

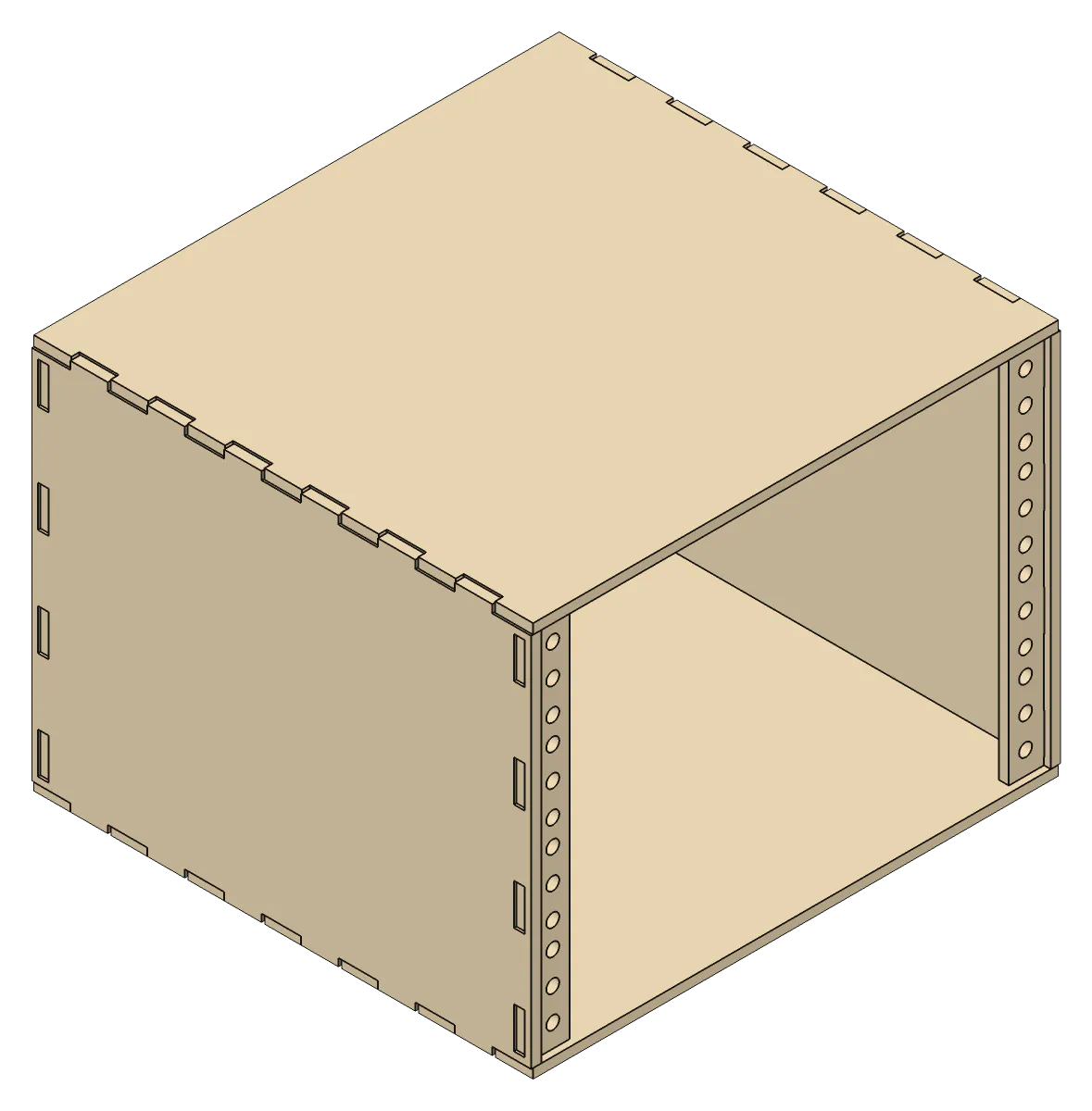

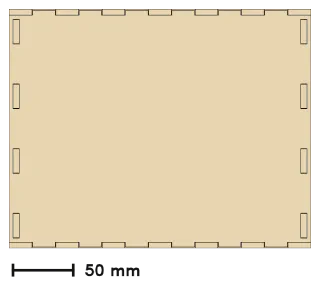

A small 10" rack: a finger-jointed box open front and back, with two rails drilled at every rack hole for 10" gear to bolt to.
| Pieces | 8 |
|---|---|
| Rack | 4U, 10" |
| Outside | 265 × 198 × 250 mm |
| Rail holes | 48 × M6, nuts behind |
| Part | Count |
|---|---|
| Top bottom | 2 |
| Side | 2 |
| Rail | 4 |
Sizes are the design's defaults. Most dimensions can be changed.
Request a QuoteCut by us on a flat-rate sheet, or buy the SVG for your own machine.
Options
Each option is shown changed on its own, with everything else at the defaults above.

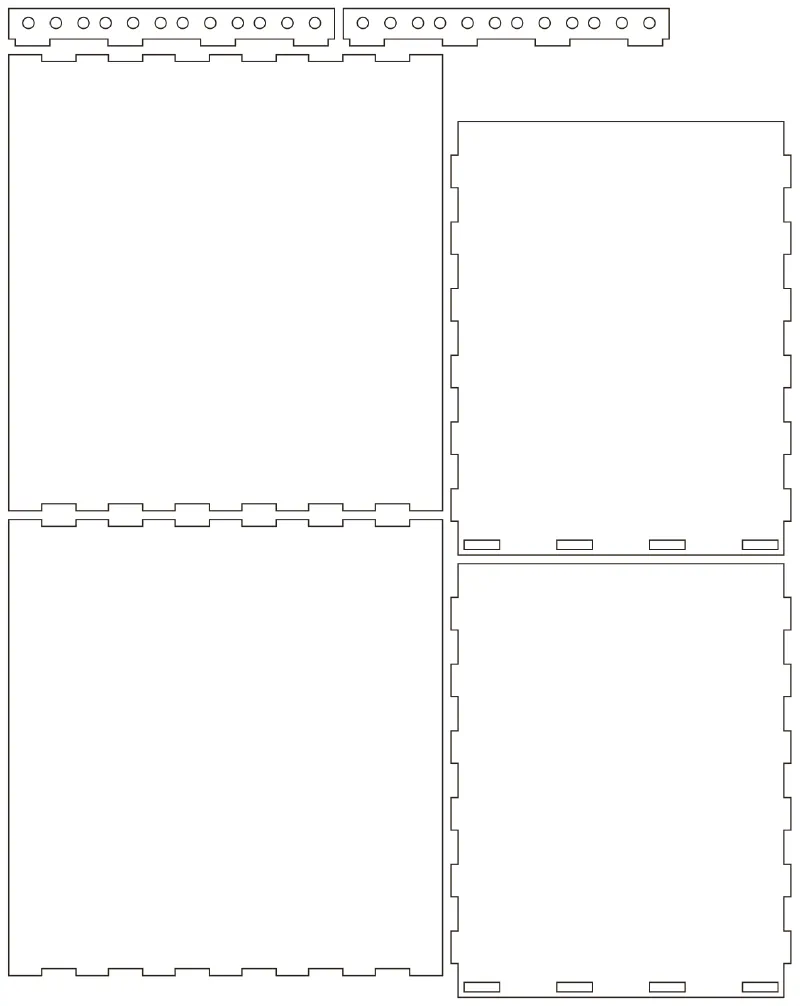

Rear rails
Rails at the back as well as the front.

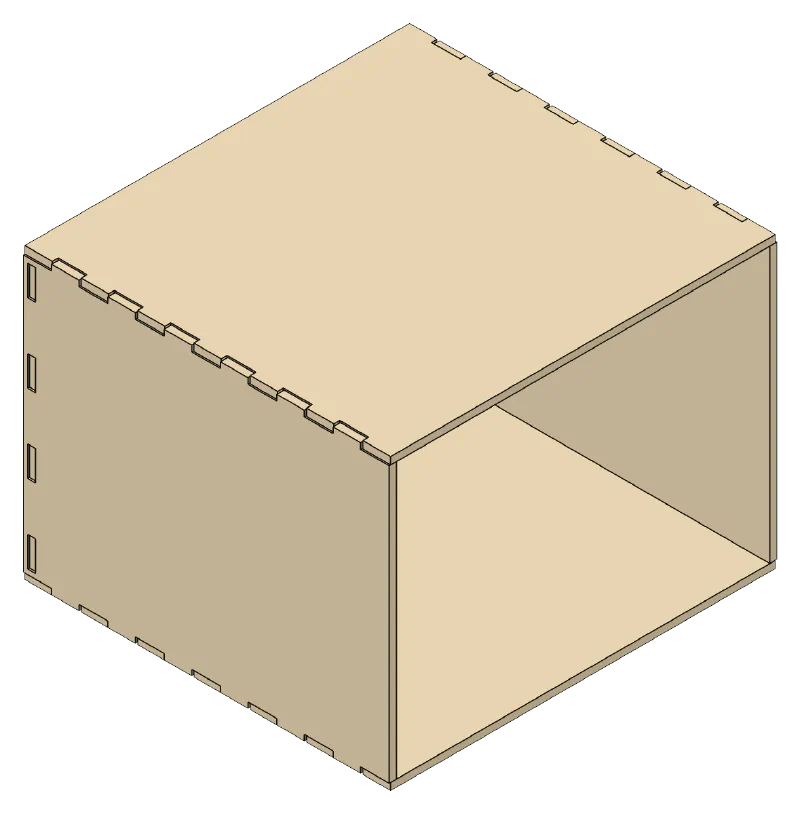

Front only
Parts
Rail holes

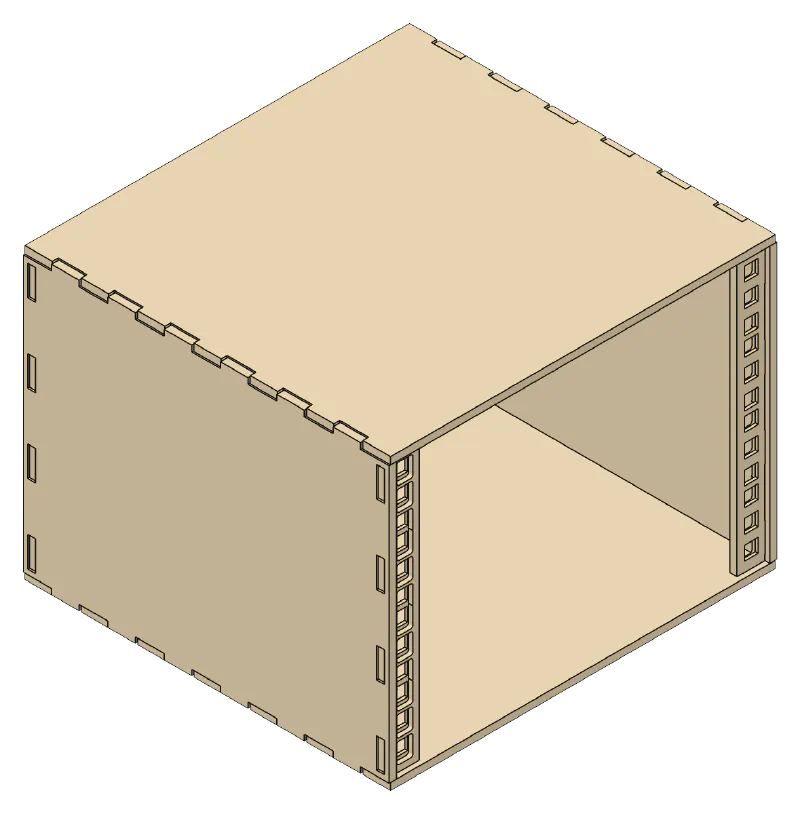

Round M6 holes with nuts behind, or square holes pocketed for cage nuts.

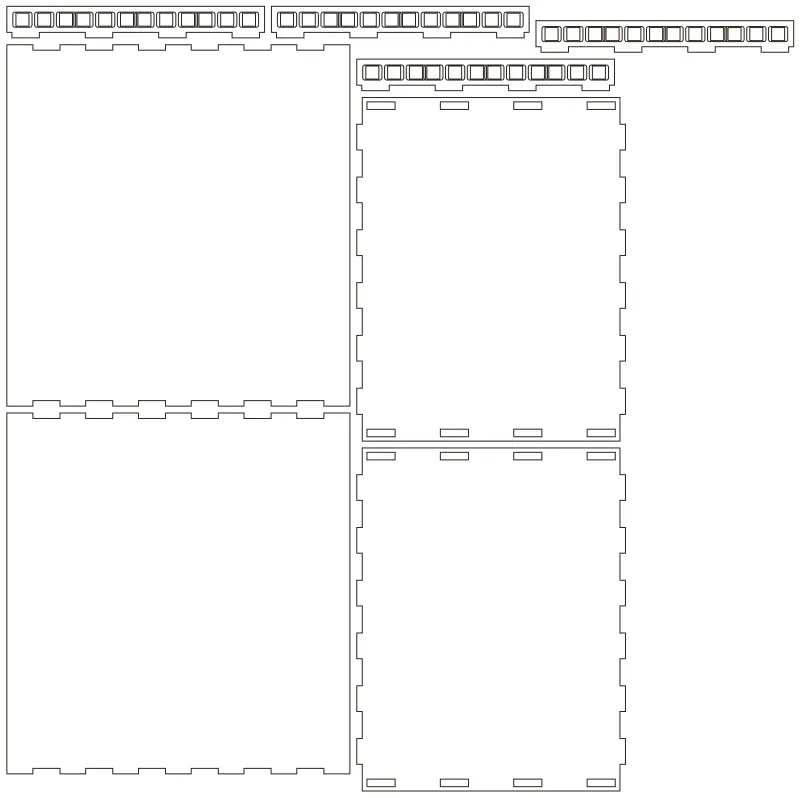

Square (cage nut)
Parts
Handles

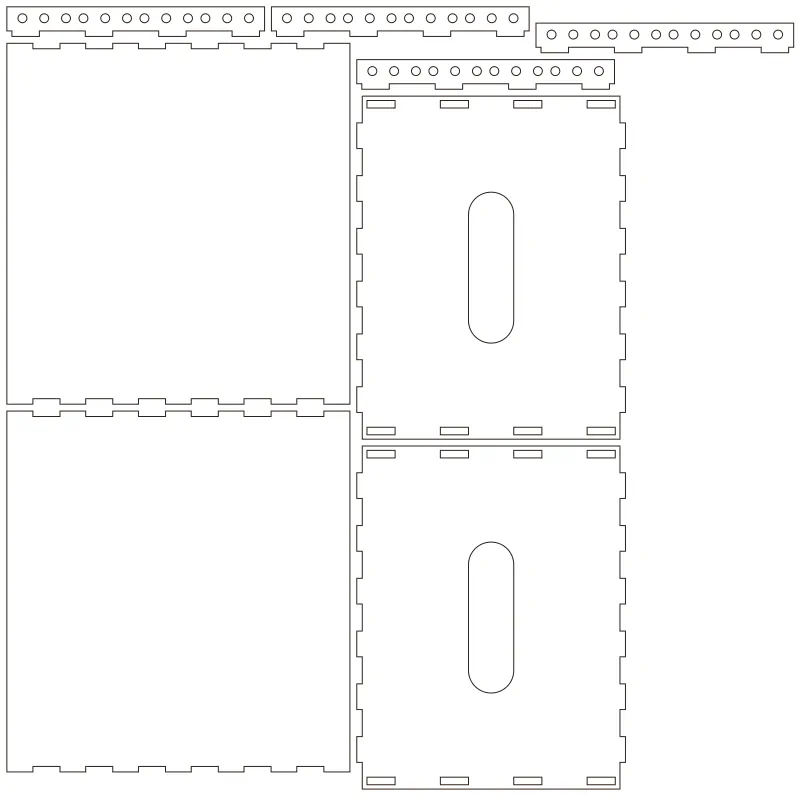

A hand hold through each side; nothing stands proud, so racks stack.

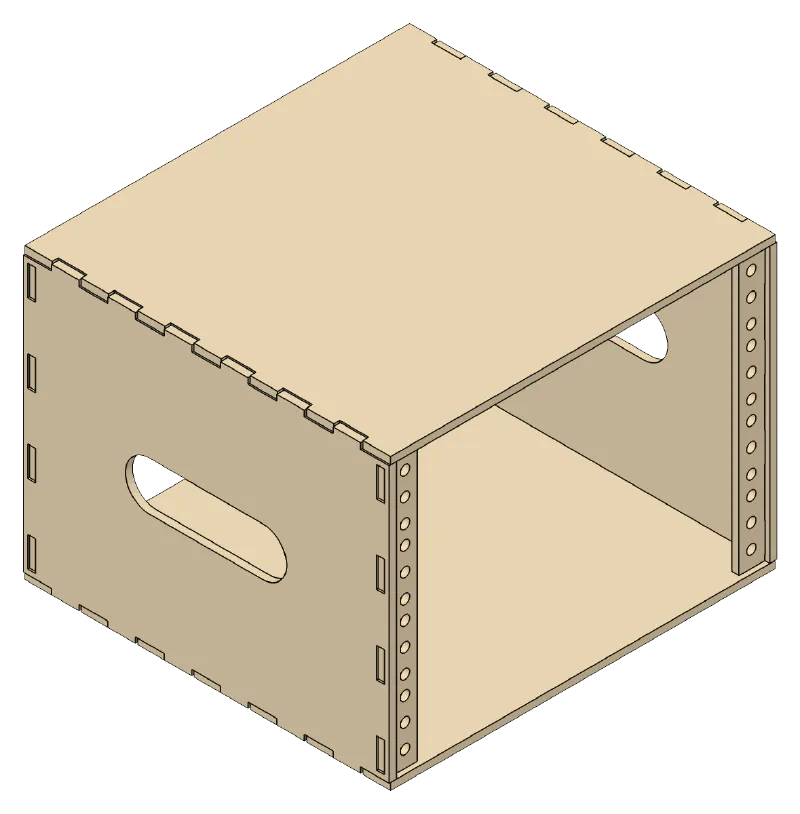

Hand holds
Parts
Mount

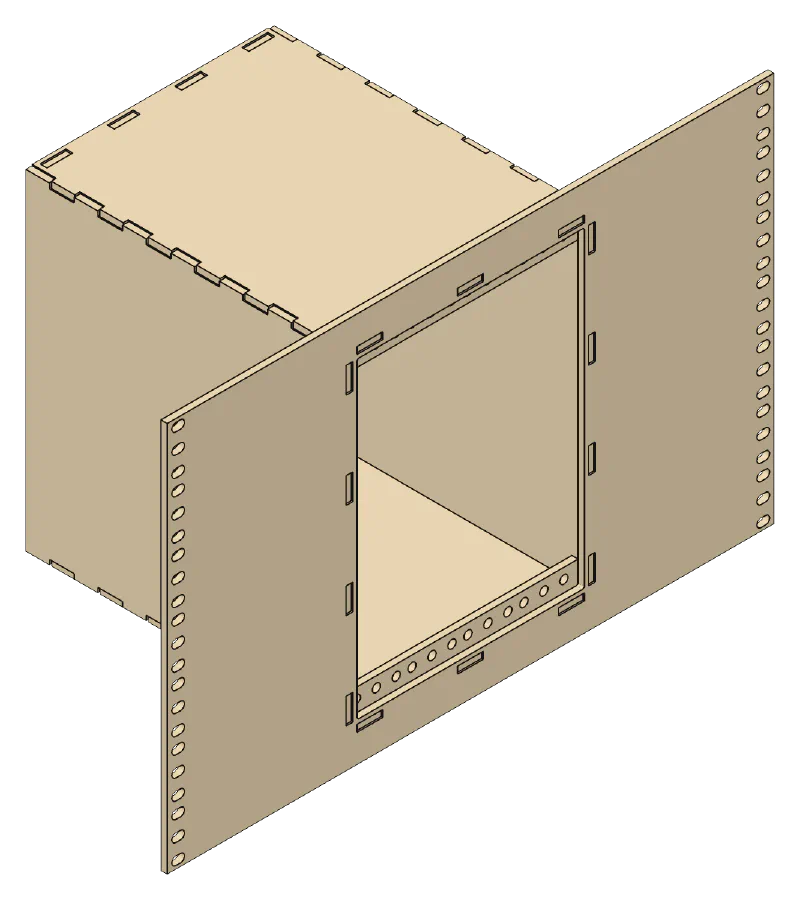

Stand alone, or on its side in a 19" rack, tabbed into a 19" faceplate so 10" gear stands on end.

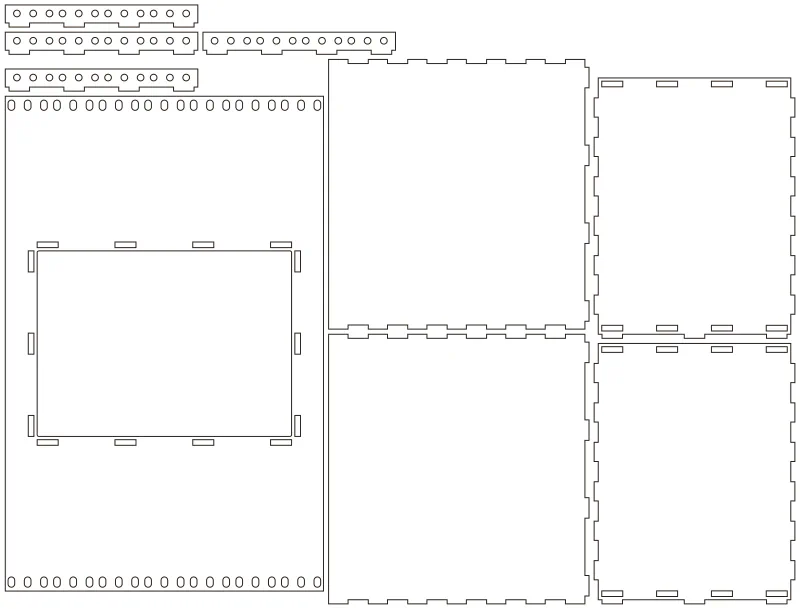

On its side in a 19" rack
Parts
Height (U)

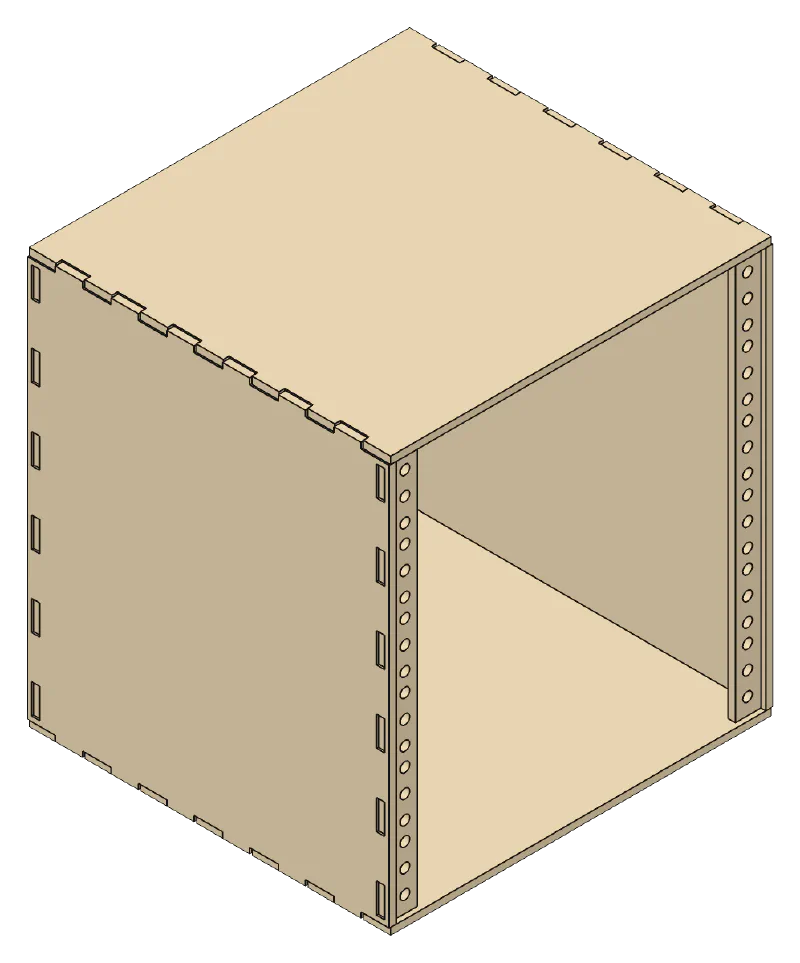

The product built 6 rack units tall.

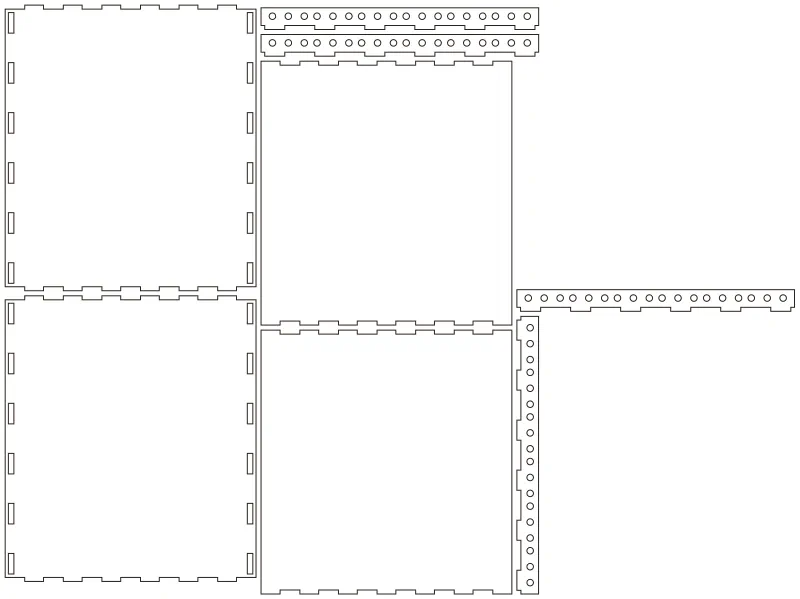

6U
Parts

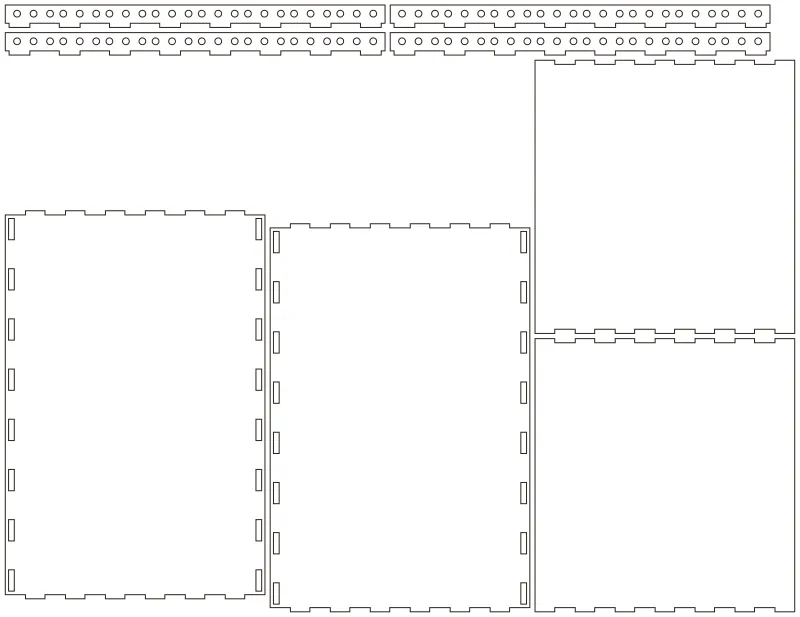

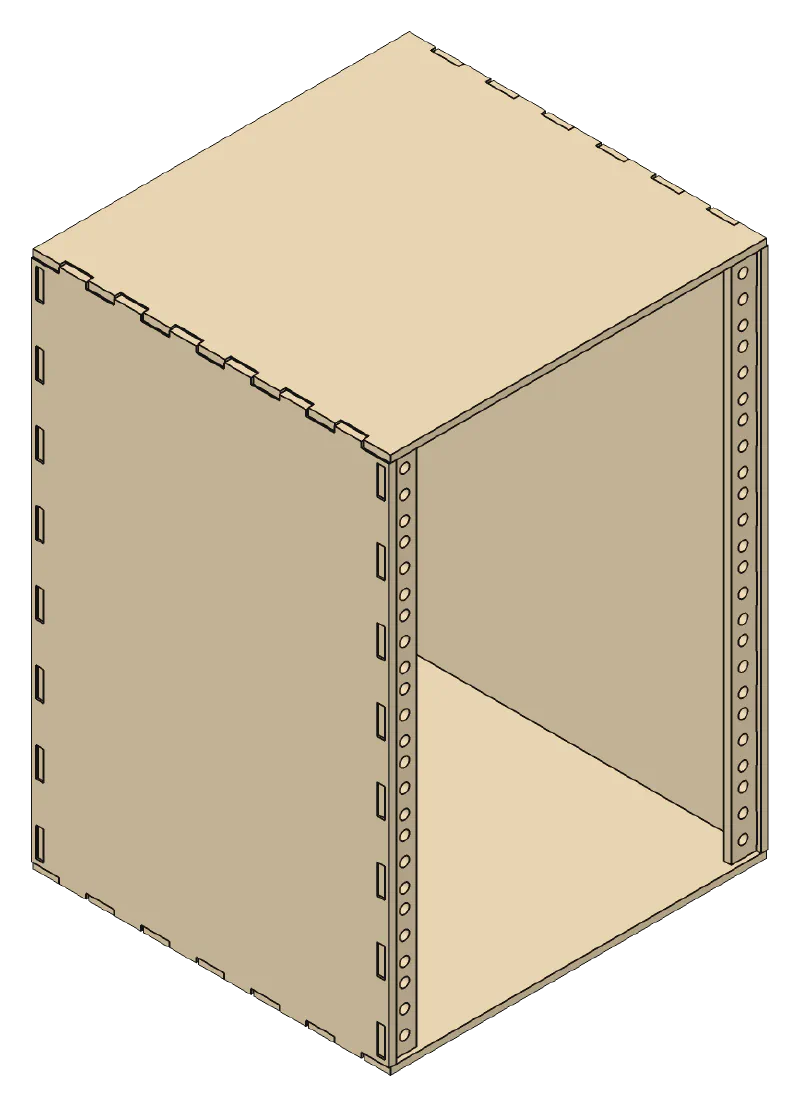

8U
Parts
