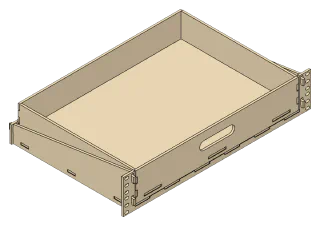

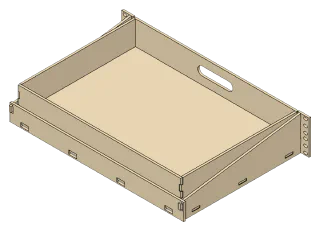

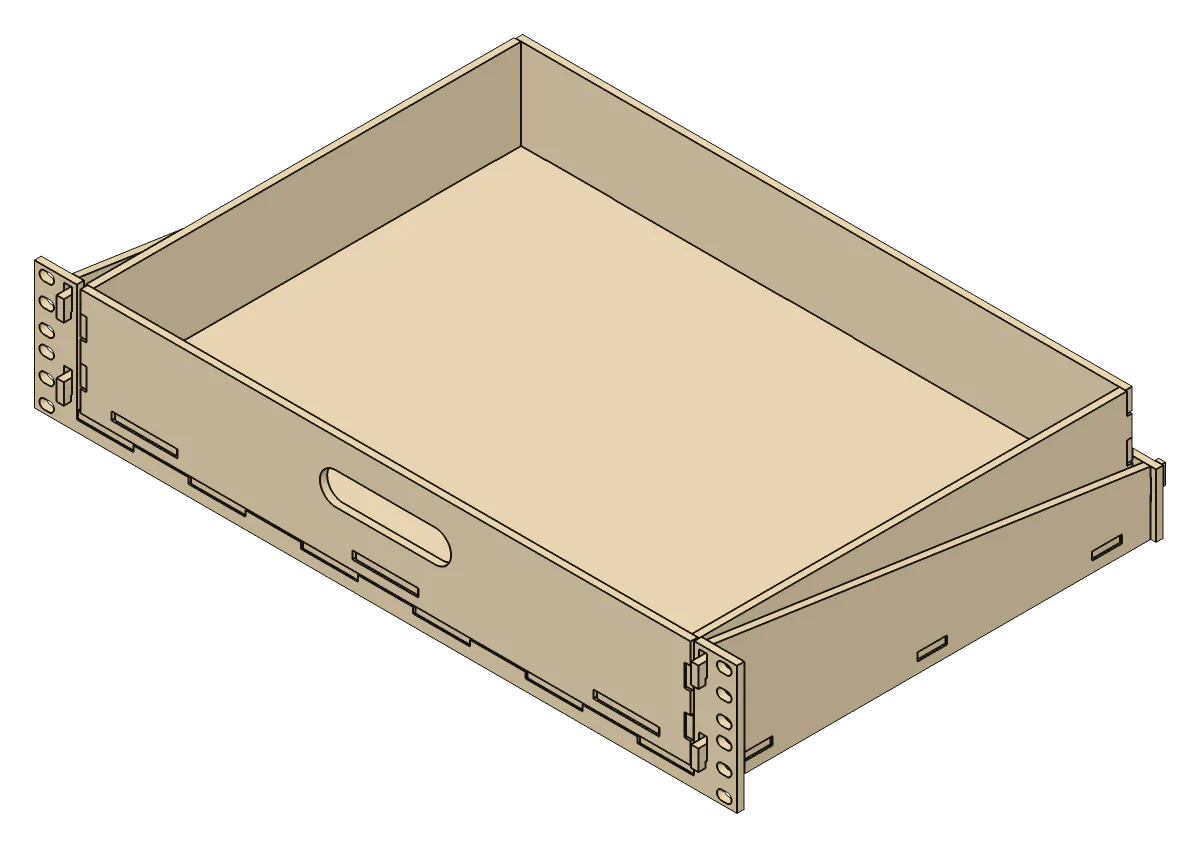

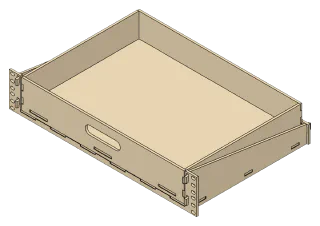

A 19" or 10" rack drawer: a drawer box sitting in a cantilever rack shelf hung on the front posts, the shelf's face open at the top so the box shows its full height, and a back that catches it.
| Pieces | 10 |
|---|---|
| Size | 483 W × 321 D × 88 H mm |
| Panel | 482.6 × 88.1 mm |
| Screws | 12 slots for M6 × 16 mm |
| Deck | 431 × 300 mm |
| Drawer box | 421 × 304 × 74 mm |
| Part | Count |
|---|---|
| Shelf face | 1 |
| Shelf deck | 1 |
| Shelf side | 2 |
| Shelf back | 1 |
| Drawer bottom | 1 |
| Drawer front | 1 |
| Drawer back | 1 |
| Drawer side | 2 |
Sizes are the design's defaults. Most dimensions can be changed.

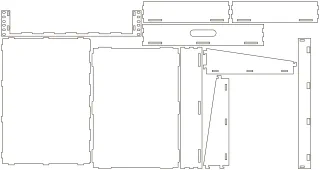

Request a QuoteCut by us on a flat-rate sheet, or buy the SVG for your own machine.
Options
Each option is shown changed on its own, with everything else at the defaults above.
Height (U)

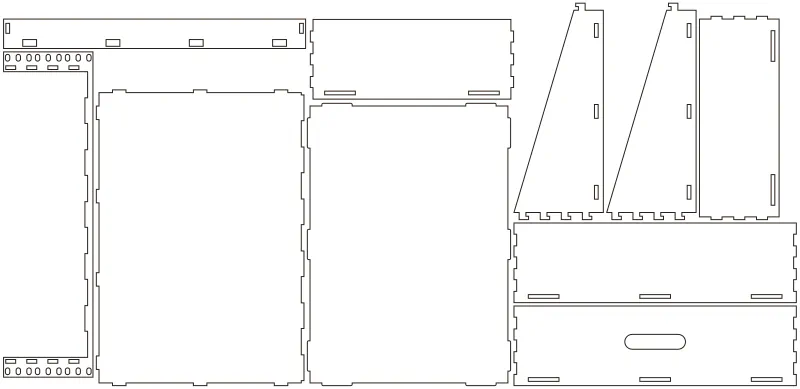

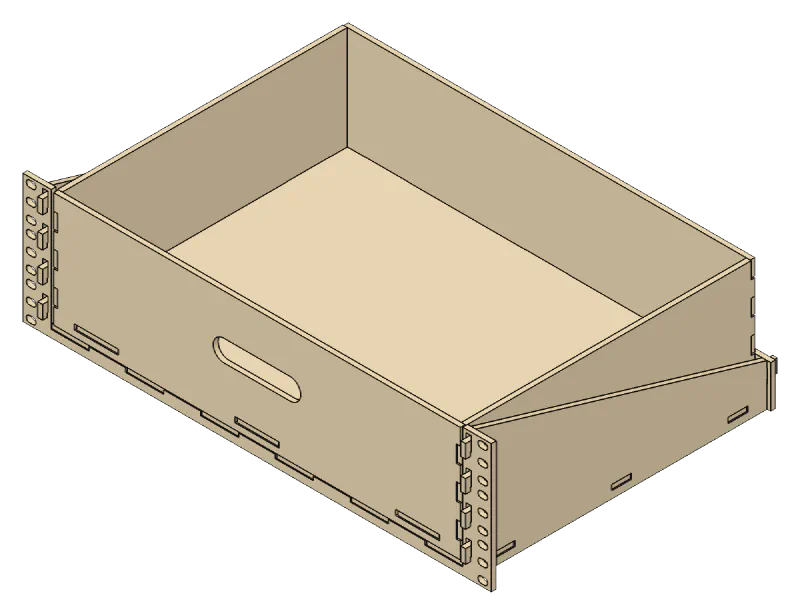

The product built 3 rack units tall.
3U

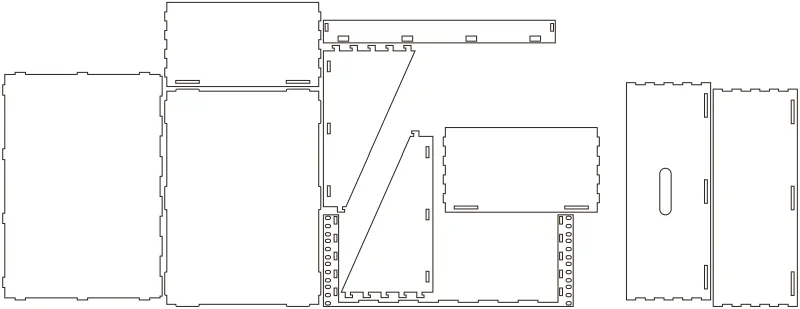

Parts

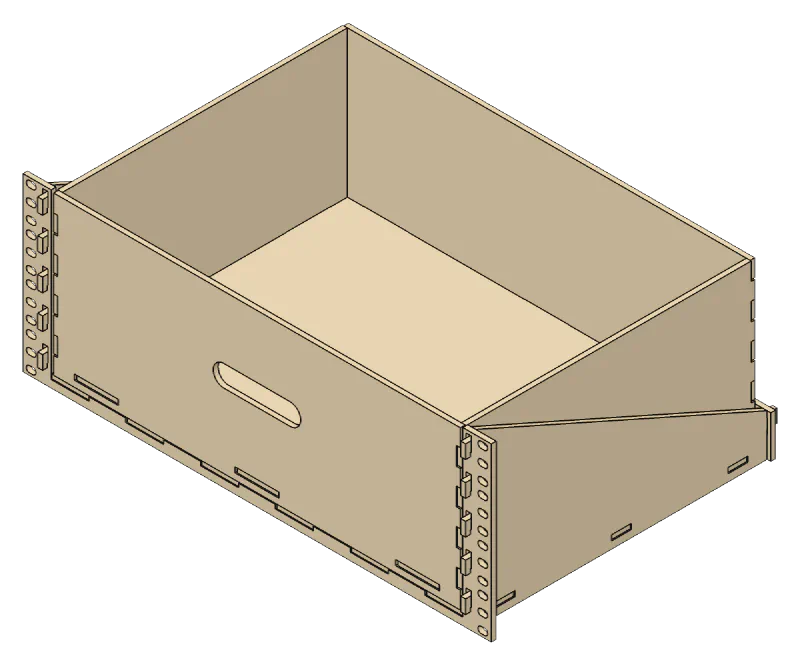

4U
Parts
