Drag to turn, scroll or pinch to zoom.
The assembly plays on a loop. Pause holds it at any step, and it still turns and zooms while paused.

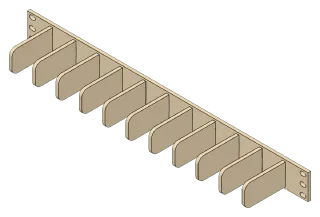

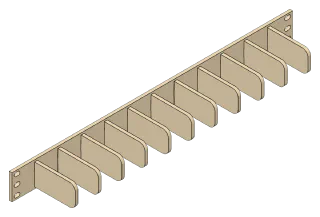

A 19" or 10" rack panel with a row of rounded fingers hooked on in front, so patch cords drop between them and run sideways.
| Pieces | 12 |
|---|---|
| Size | 483 W × 81 D × 44 H mm |
| Panel | 482.6 × 43.7 mm |
| Screws | 6 slots for M6 × 16 mm |
| Fingers | 11 × 70 mm |
| Part | Count |
|---|---|
| Face | 1 |
| Finger | 11 |
Sizes are the design's defaults. Most dimensions can be changed.
Request a QuoteCut by us on a flat-rate sheet, or buy the SVG for your own machine.
Options
Each option is shown changed on its own, with everything else at the defaults above.
Height (U)

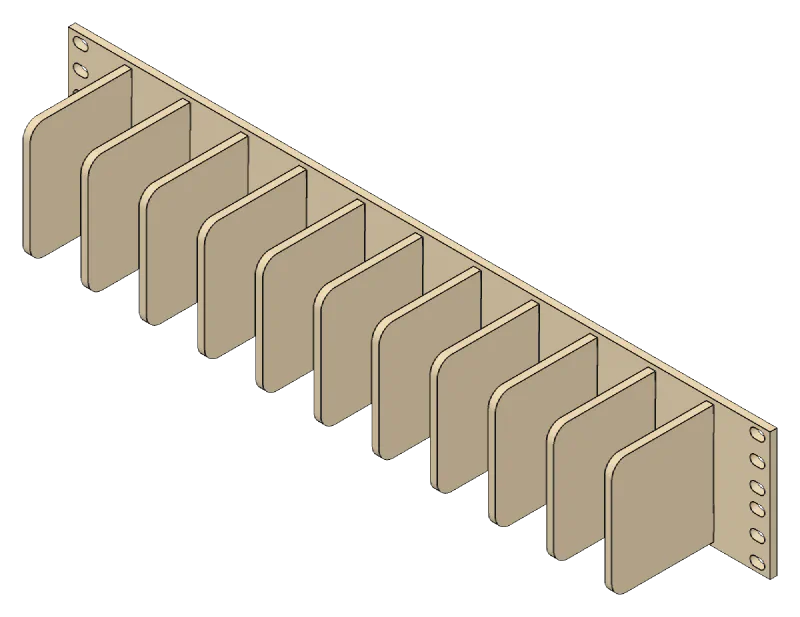

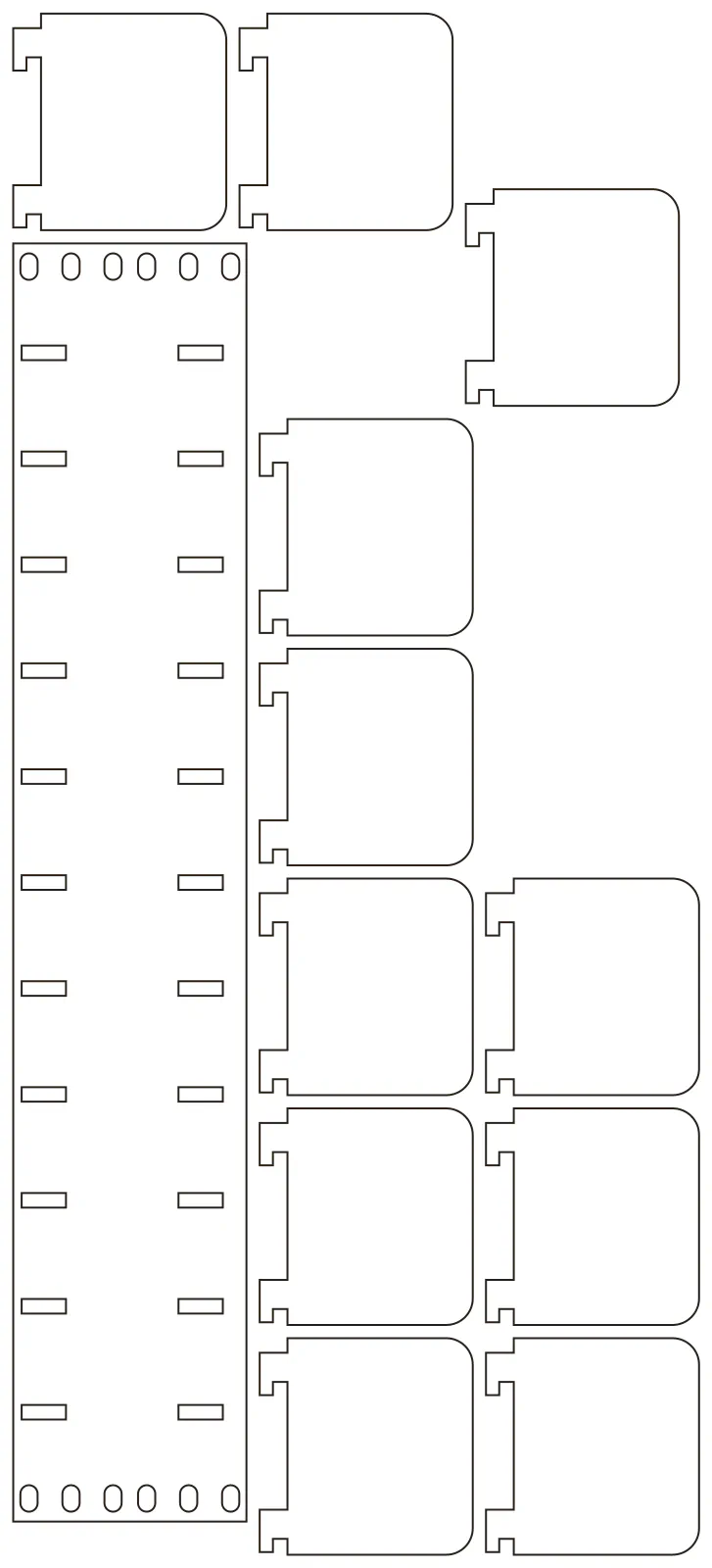

The product built 2 rack units tall.
2U
Parts
