Protractor

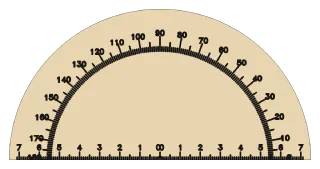

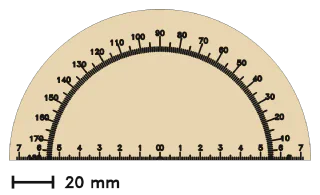

A semicircular protractor engraved with degree ticks around its arc.

Pieces1
Size100 × 56 mm, 5 mm thick

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

Cut by us by the sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Centre notch

A V notch up into the straight edge, its rounded tip on the point the degrees are read from, for a pencil or a marker's point.

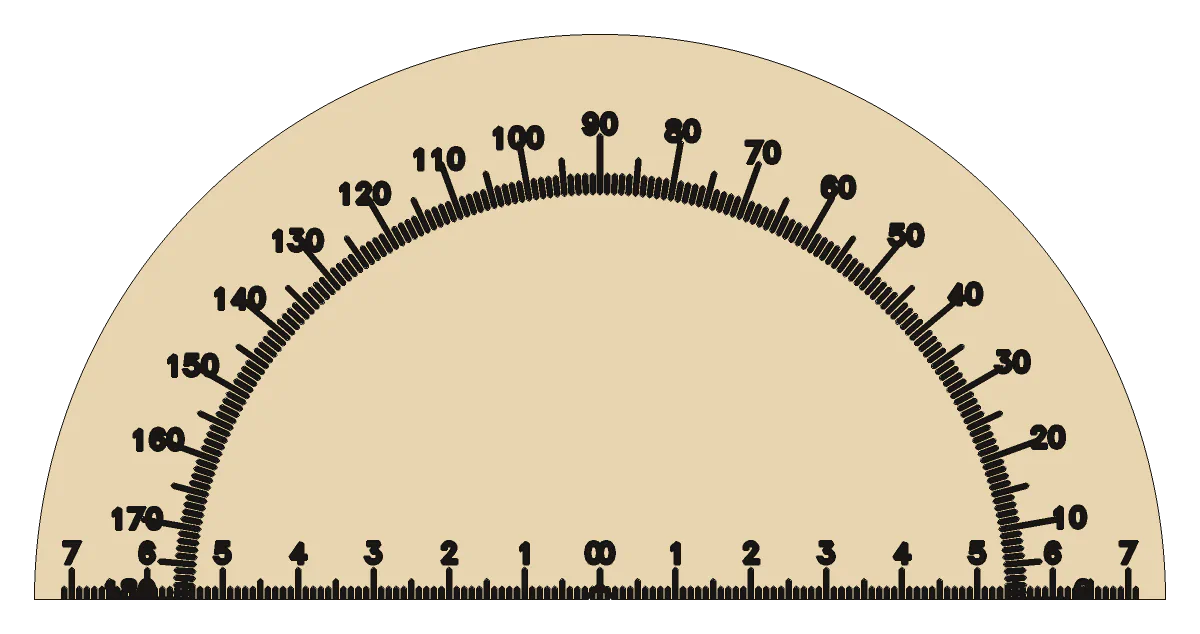

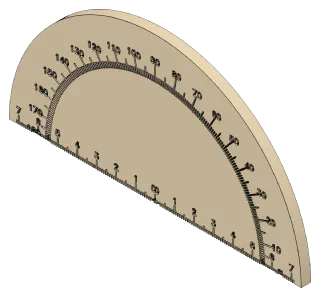

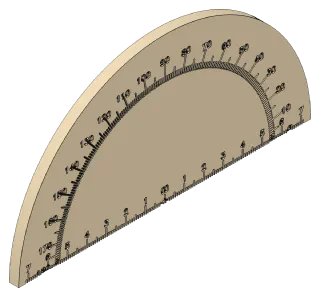

Protractor, centre notch: None

None

Size 100 × 56 mm, 5 mm thick

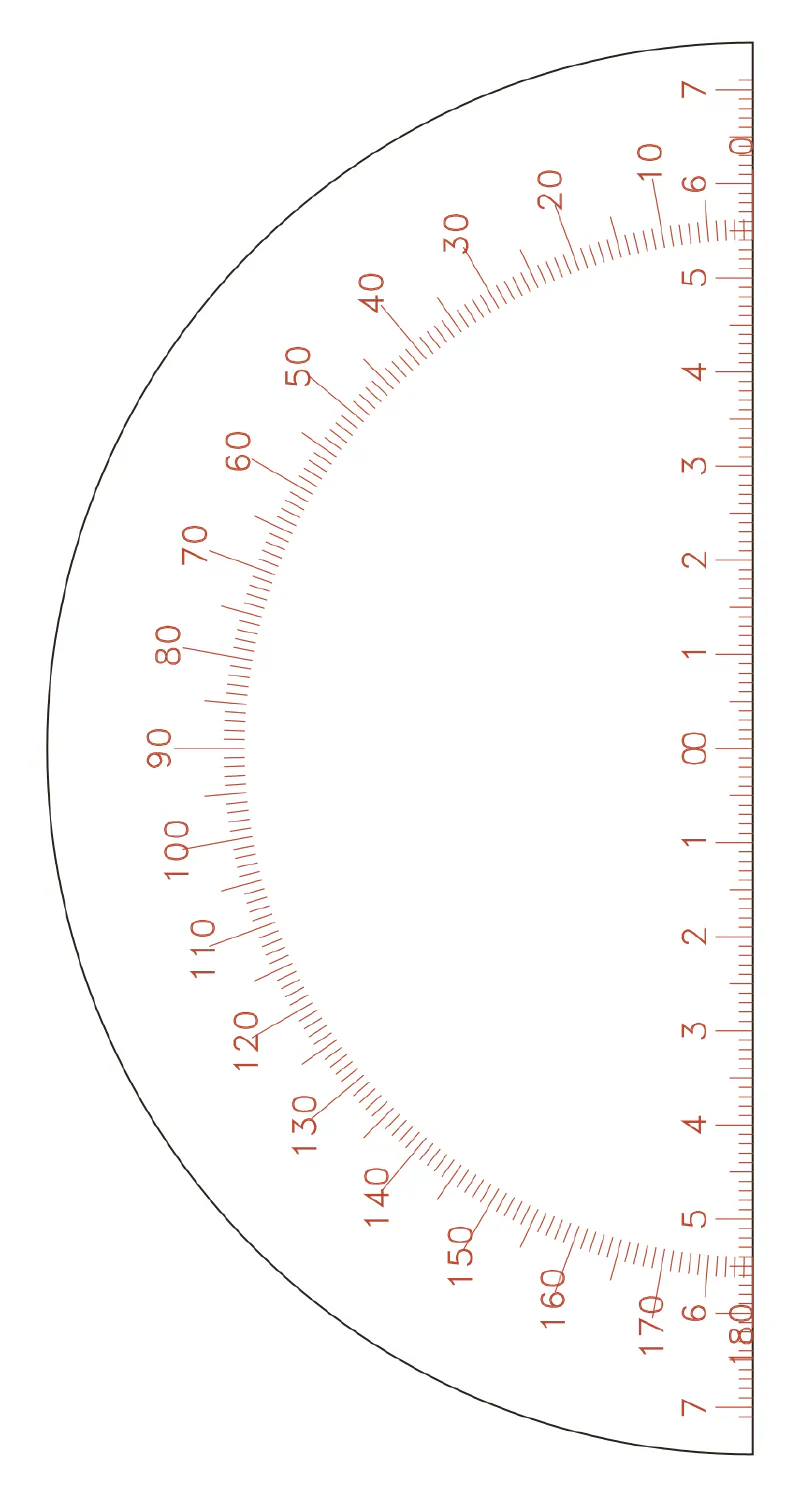

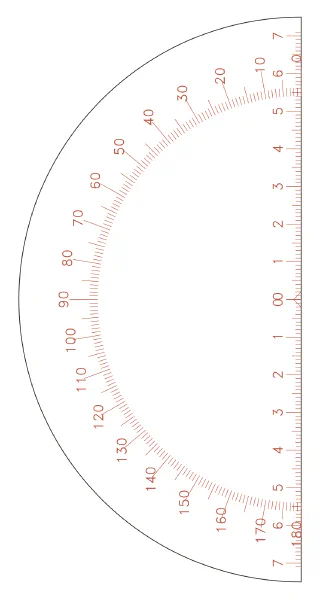

PartsFlat part layout for the Protractor, centre notch: None
