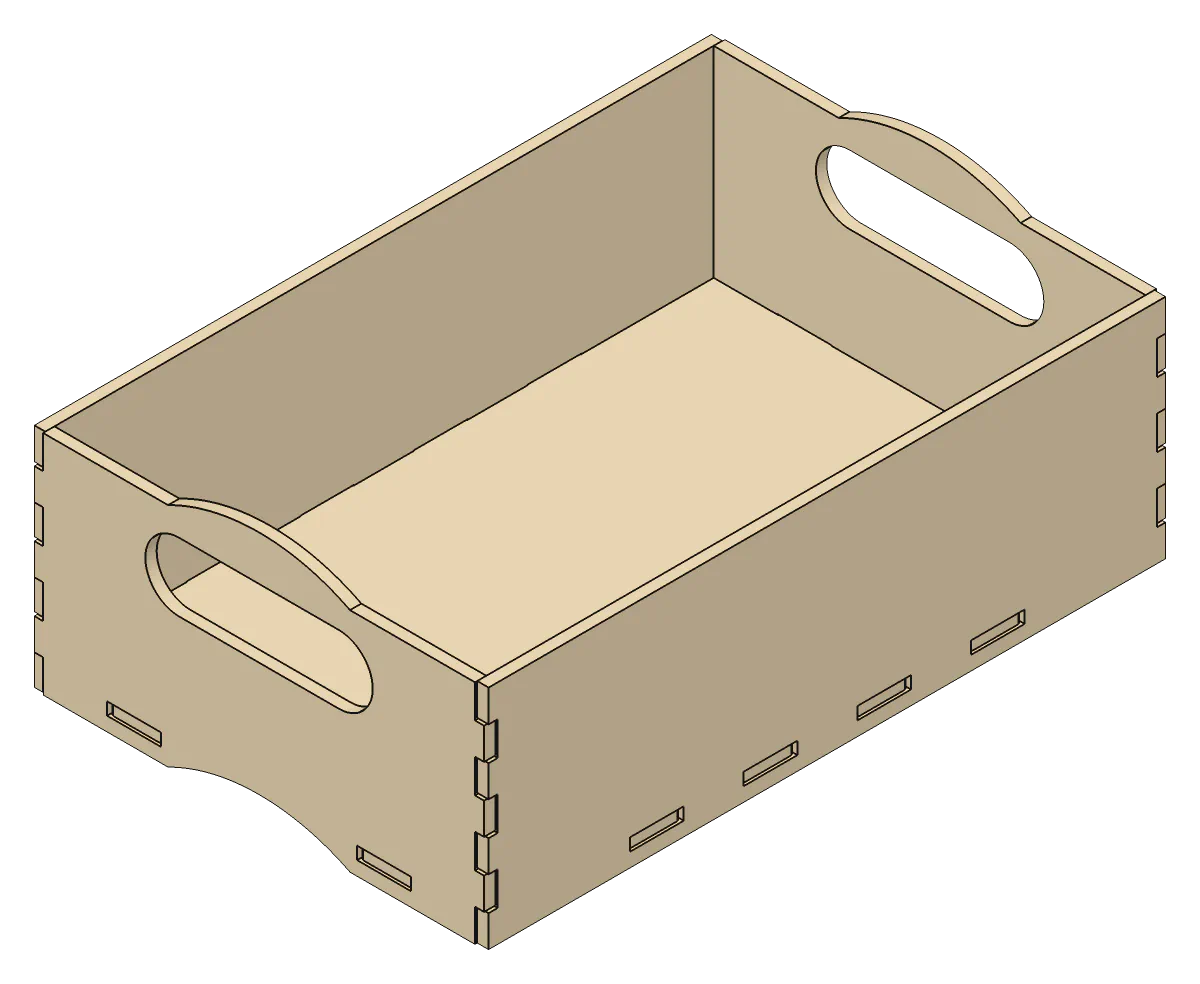

Project Box

A glued storage box with finger-jointed corners and a captured bottom. It can take a drop-in lid, a stacking crown and end handles.

Pieces5
Outside340 × 205 × 89 mm
Inside330 × 195 × 78 mm
Capacity4.5 L
PartCount
Bottom1
Long wall2
End wall2

Sizes are the design's defaults. Most dimensions can be changed.

Also sold as a product: Flatpak Project Box.

Request a Quote

Cut by us by the sheet, or buy the SVG for your own machine.

How it's made

The boxes in the video are a larger size with vents cut in the sides for more airflow.

Laser engraving the prototype run

The laser on our CNC engraving logos and QR codes onto a sheet of box parts.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Handle

Cut a handle hole in the end walls.

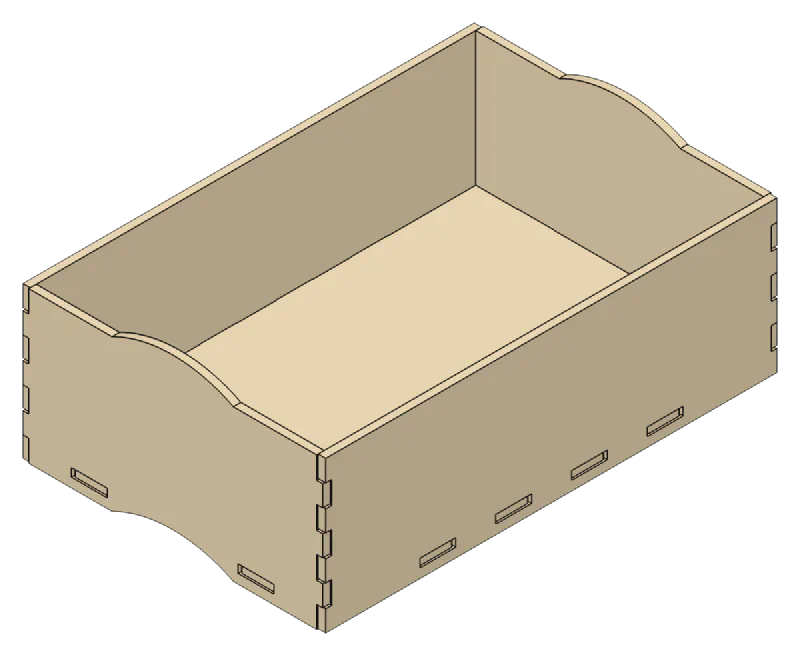

Project Box, handle: No handle

No handle

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Project Box, handle: No handle

Lid

Lid style.

Project Box, lid: Cover slots

Cover slots

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Project Box, lid: Cover slots

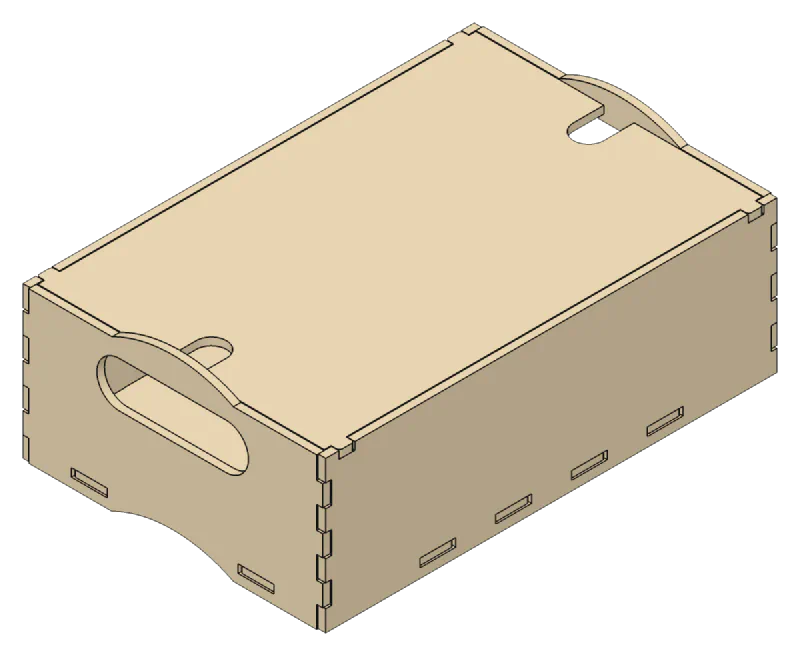

Project Box, lid: Full cover

Full cover

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Project Box, lid: Full cover

Assembly jig

Cut a grid of four bars that slot together with the box: dropped over the tops of its walls, it holds them square and the right size while the box is glued, then lifts off.

Project Box, assembly jig: Slotted grid

Slotted grid

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Project Box, assembly jig: Slotted grid

Size table

Engrave the outside/inside dimension table on the bottom.

Project Box, size table: None

None

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

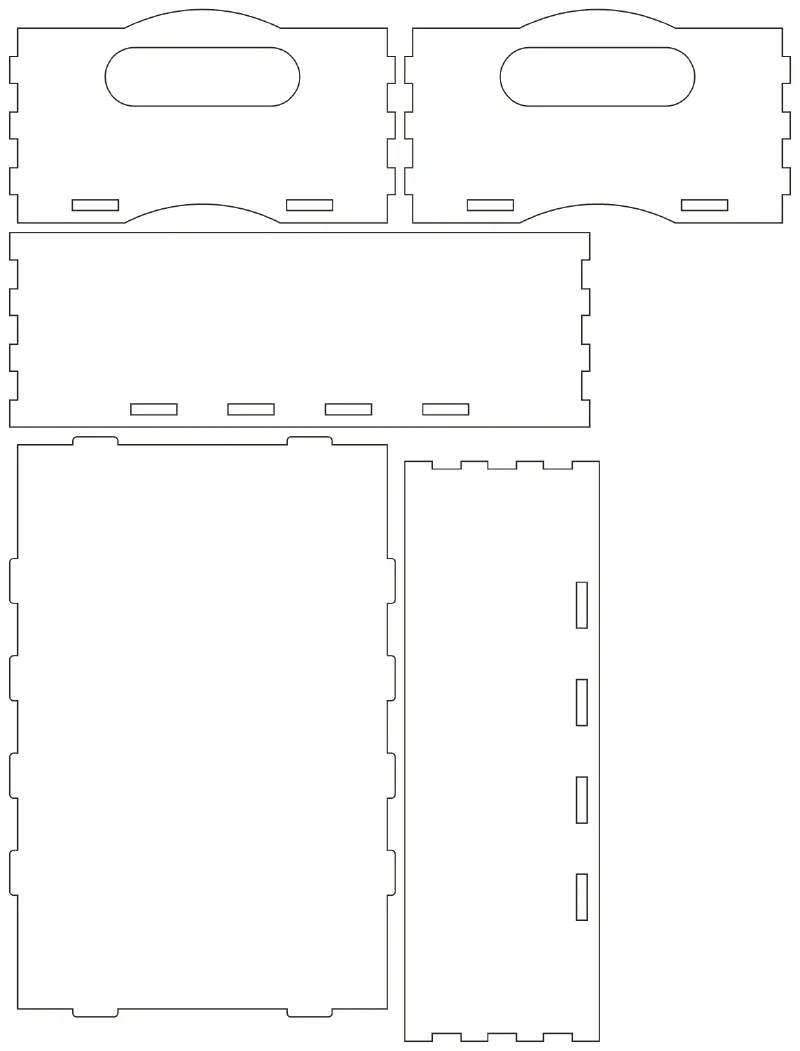

PartsFlat part layout for the Project Box, size table: None
