Produce Box

A vented crate for produce and market goods. Its sides and bottom are cut with a strong lattice of vent holes, and its corners are finger-jointed.

Pieces5
Outside340 × 205 × 89 mm
Inside330 × 195 × 78 mm
Capacity4.5 L
PartCount
Bottom1
Long wall2
End wall2

Sizes are the design's defaults. Most dimensions can be changed.

Also sold as a product: Quarter-Bushel Produce Box.

Request a Quote

Cut by us by the sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Handle

Cut a handle hole in the end walls.

Produce Box, handle: No handle

No handle

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

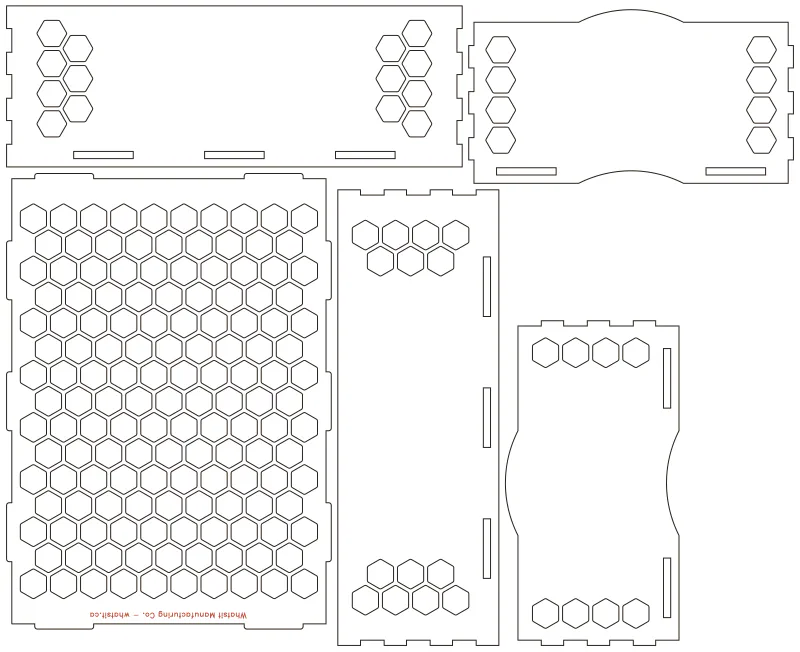

PartsFlat part layout for the Produce Box, handle: No handle

Assembly jig

Cut a grid of four bars that slot together with the box: dropped over the tops of its walls, it holds them square and the right size while the box is glued, then lifts off.

Produce Box, assembly jig: Slotted grid

Slotted grid

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, assembly jig: Slotted grid

Grille round the box

One grille laid over the four walls end to end and carried on across the corners, so the walls differ and go in numbered order; or the same grille on each wall. The grille starts over at one corner, where the last wall meets the first.

Produce Box, grille round the box: Carried on round

Carried on round

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, grille round the box: Carried on round

Vent pattern

The vent holes' tiling.

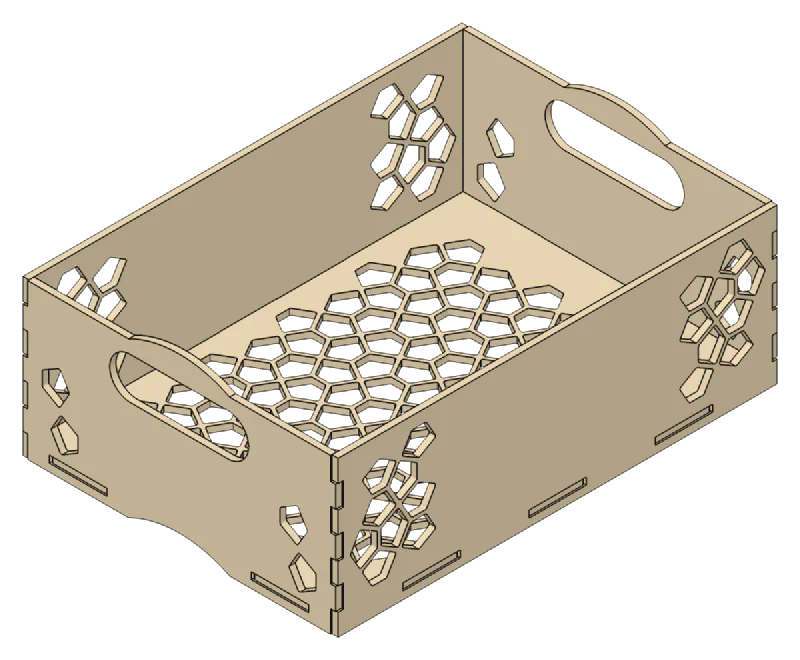

Produce Box, vent pattern: Cairo (pentagons)

Cairo (pentagons)

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

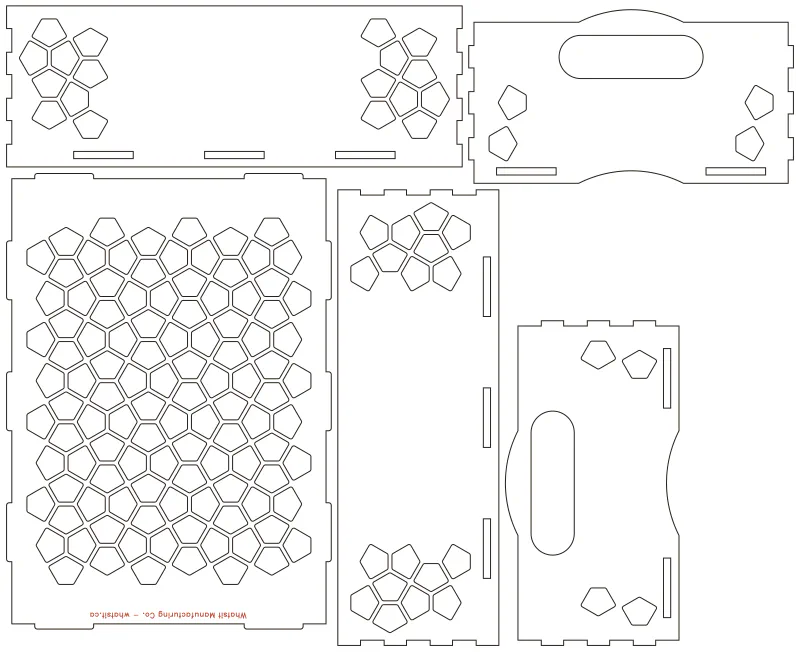

PartsFlat part layout for the Produce Box, vent pattern: Cairo (pentagons)
Produce Box, vent pattern: Triangles

Triangles

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

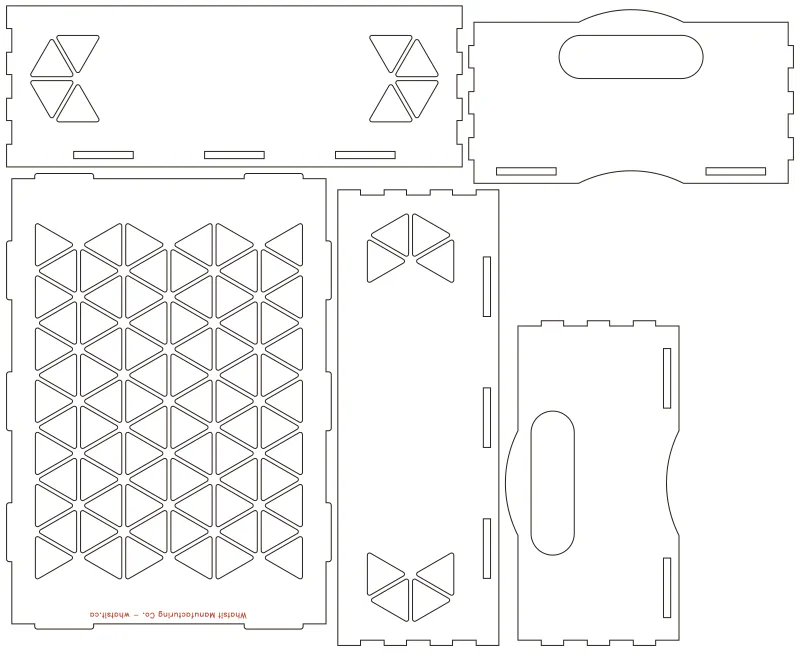

PartsFlat part layout for the Produce Box, vent pattern: Triangles

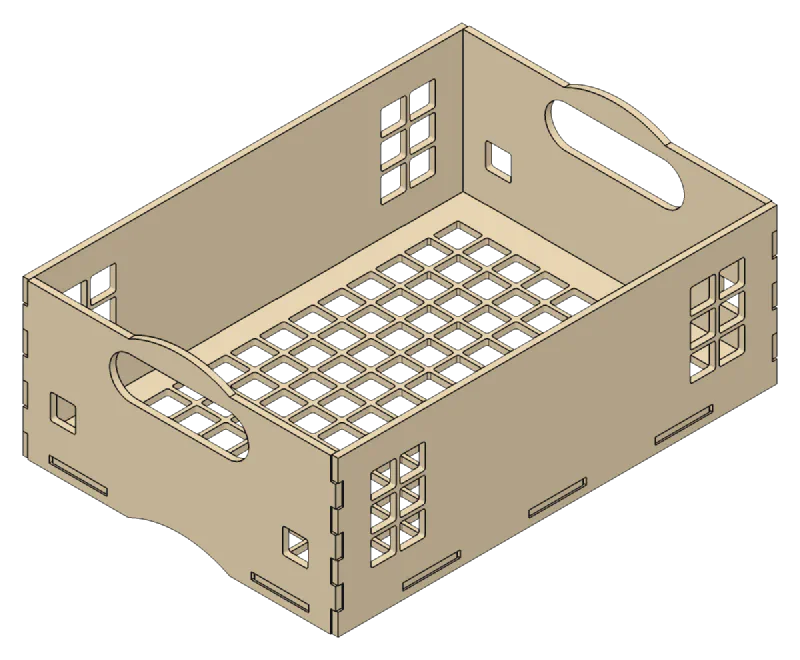

Produce Box, vent pattern: Squares

Squares

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

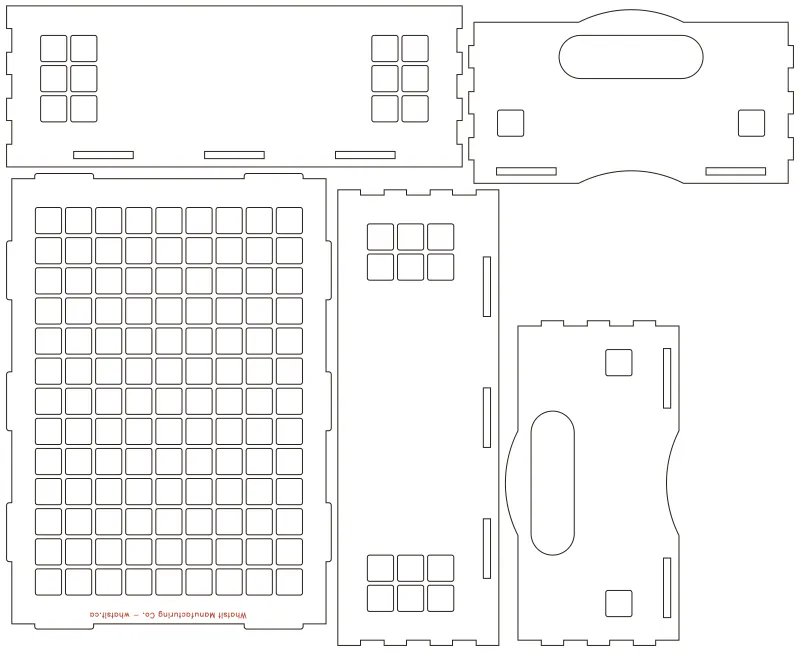

PartsFlat part layout for the Produce Box, vent pattern: Squares
Produce Box, vent pattern: Tumbling blocks

Tumbling blocks

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Tumbling blocks
Produce Box, vent pattern: Asanoha (hemp leaf)

Asanoha (hemp leaf)

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Asanoha (hemp leaf)
Produce Box, vent pattern: Kisrhombille (hex rays)

Kisrhombille (hex rays)

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Kisrhombille (hex rays)
Produce Box, vent pattern: Hexagons and triangles

Hexagons and triangles

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Hexagons and triangles
Produce Box, vent pattern: Octagons and squares

Octagons and squares

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Octagons and squares
Produce Box, vent pattern: Brick

Brick

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Brick
Produce Box, vent pattern: Basketweave

Basketweave

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, vent pattern: Basketweave

Pattern edge

Vent holes crossing the vented field's edge, cut off at it so the grille fills the field to its border, or left out.

Produce Box, pattern edge: Whole holes only

Whole holes only

Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

PartsFlat part layout for the Produce Box, pattern edge: Whole holes only
