Lantern

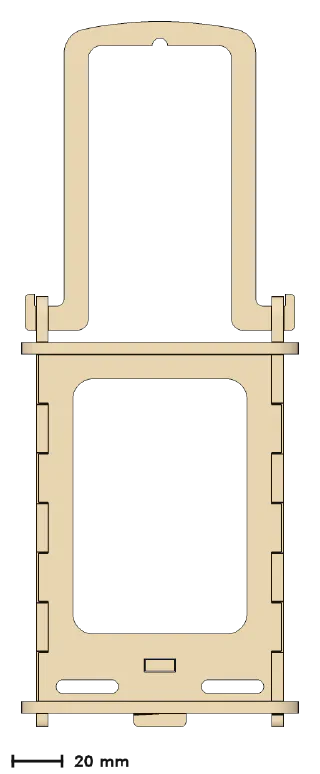

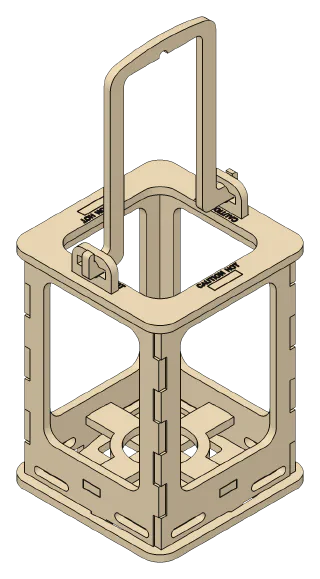

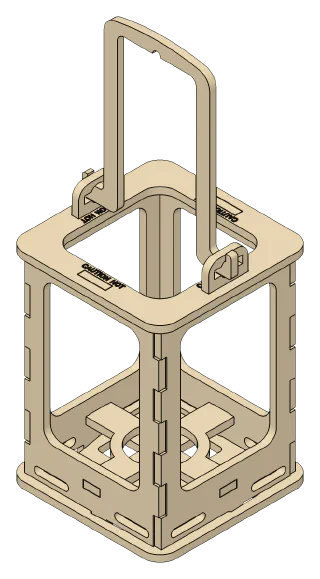

An open-topped tealight lantern that goes together without glue. Its panels finger together and twist-lock into the base, a skeleton deck holds the candle, and a captive bail carries it.

Pieces8
Size112 W × 112 D × 285 H mm
Panels4 × 95 × 140 mm
Opening78 mm across
Candle to panel26 mm
Lock turn13.5°

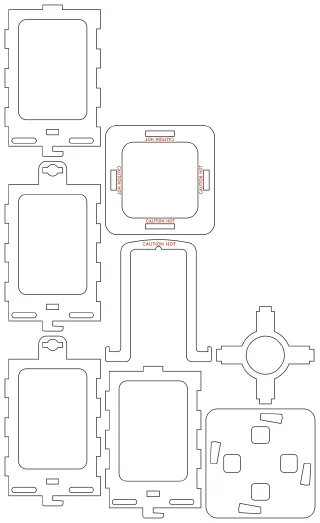

PartCount
Panel2
Ear panel2
Base1
Ring1
Deck1
Bail1

Sizes are the design's defaults. Most dimensions can be changed.

Request a Quote

Cut by us on a flat-rate sheet, or buy the SVG for your own machine.

Options

Each option is shown changed on its own, with everything else at the defaults above.

Sides

Square, hexagonal or octagonal plan (the bail needs opposite faces); an octagon needs a WIDTH of about 131 or more.

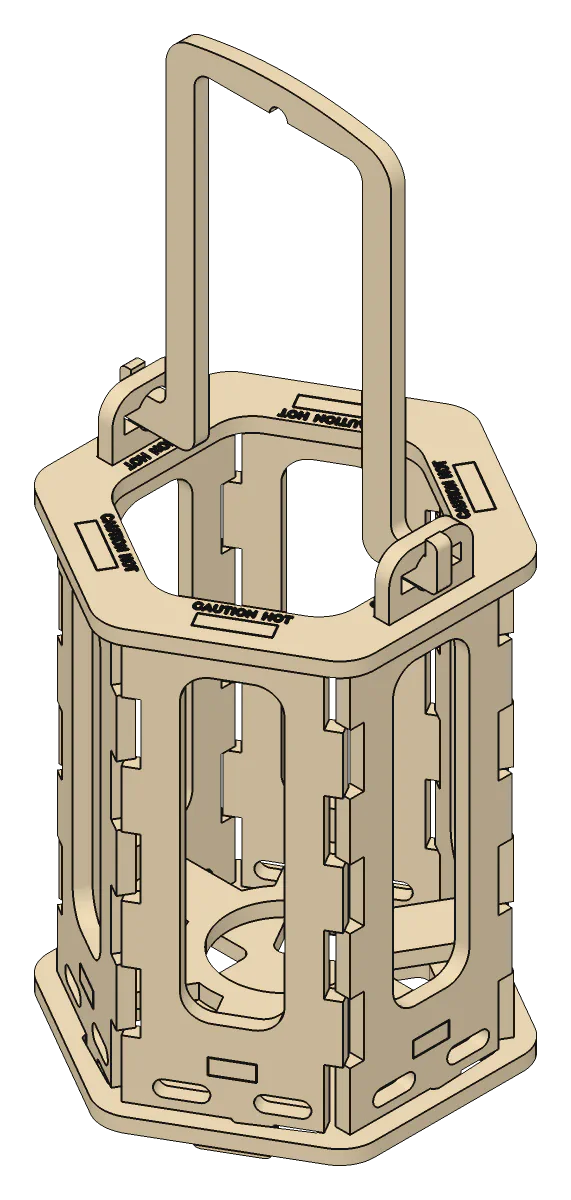

Lantern, sides: Hexagonal

Hexagonal

Size 112 W × 126 D × 285 H mm · Panels 6 × 52 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.1°

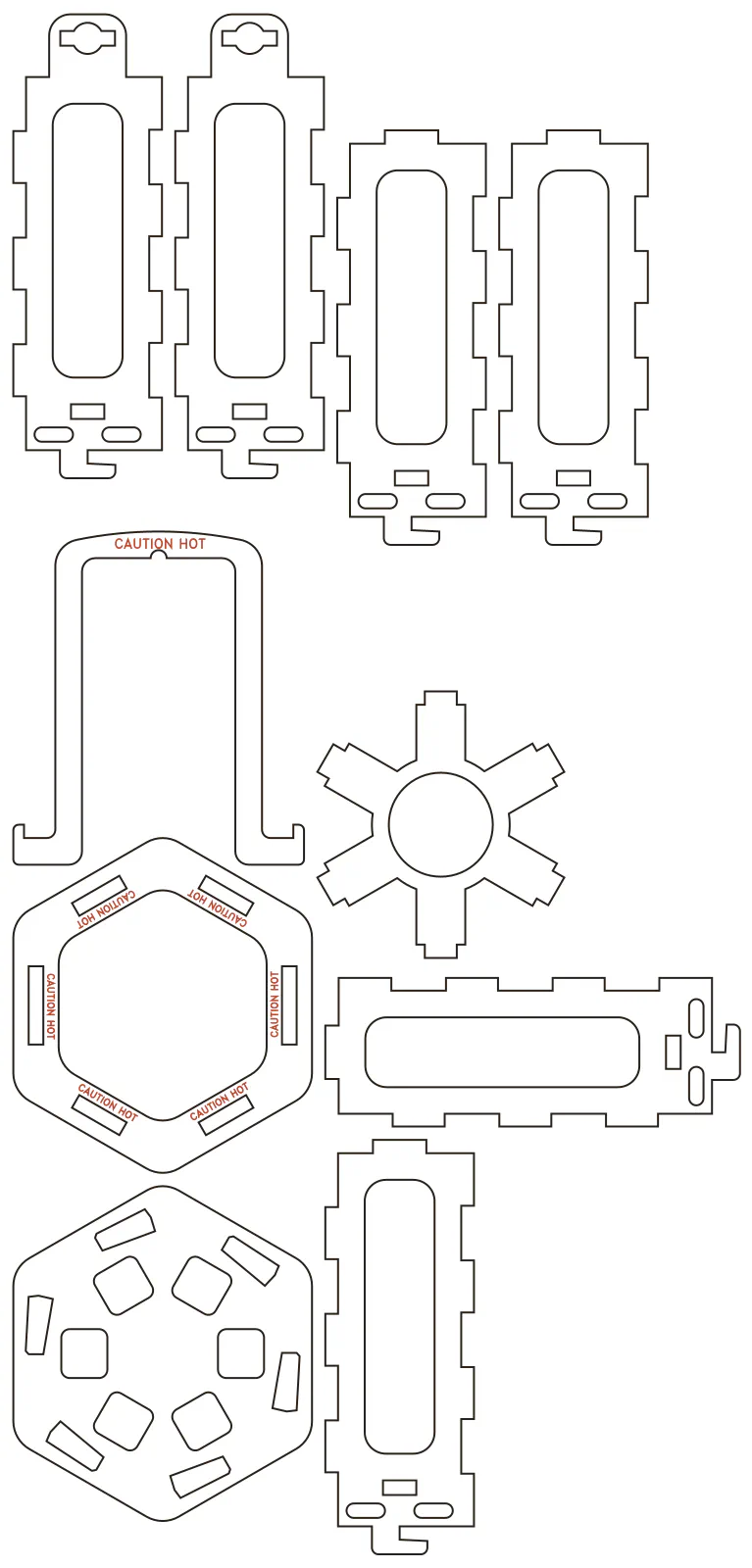

PartsFlat part layout for the Lantern, sides: Hexagonal

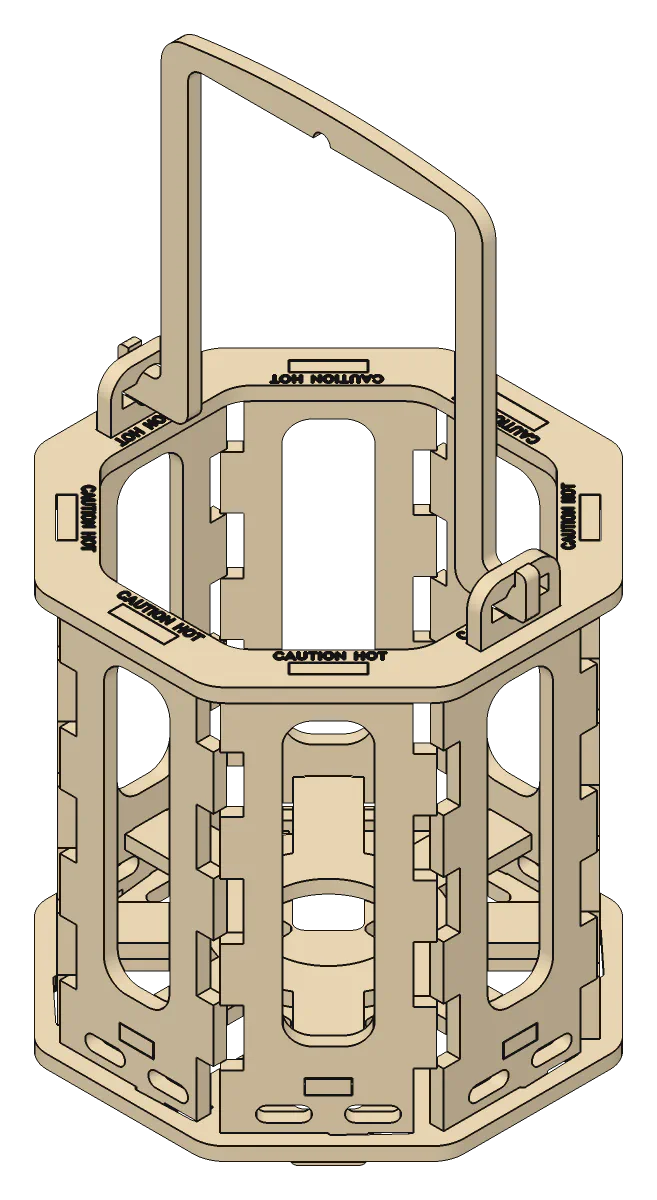

Lantern, sides: Octagonal

Octagonal

Size 152 W × 152 D × 285 H mm · Panels 8 × 51 × 140 mm · Opening 118 mm across · Candle to panel 46 mm · Lock turn 8.9°

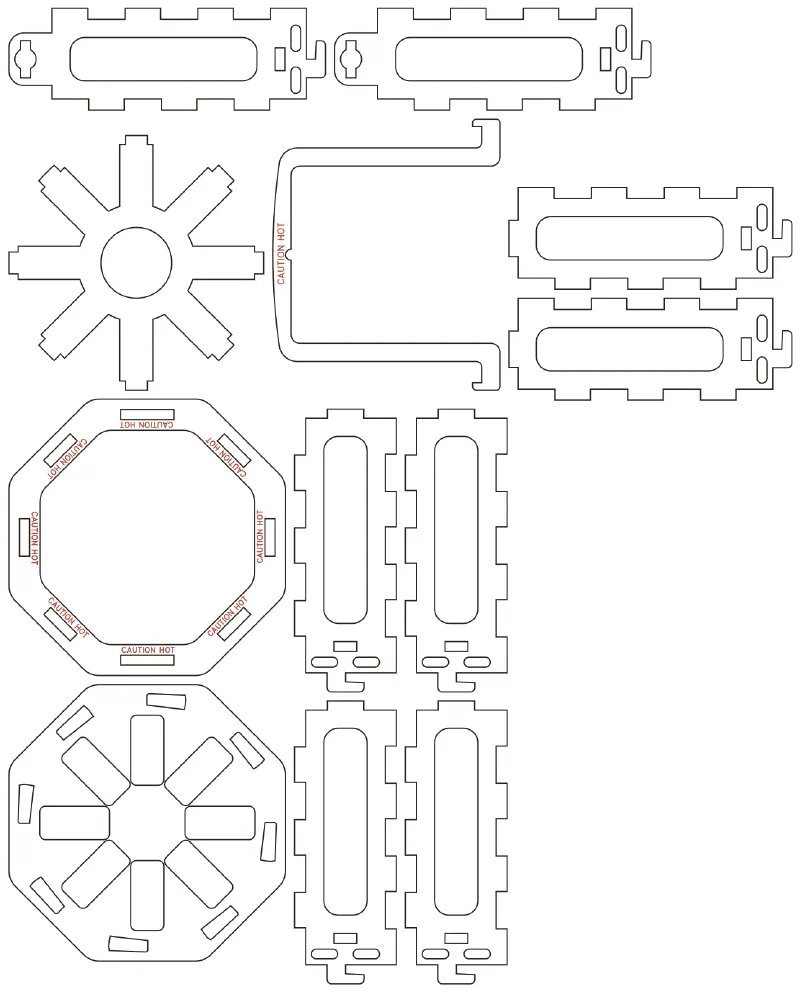

PartsFlat part layout for the Lantern, sides: Octagonal

Window

One rounded opening for the tissue, a lattice, or a fretwork pattern behind it.

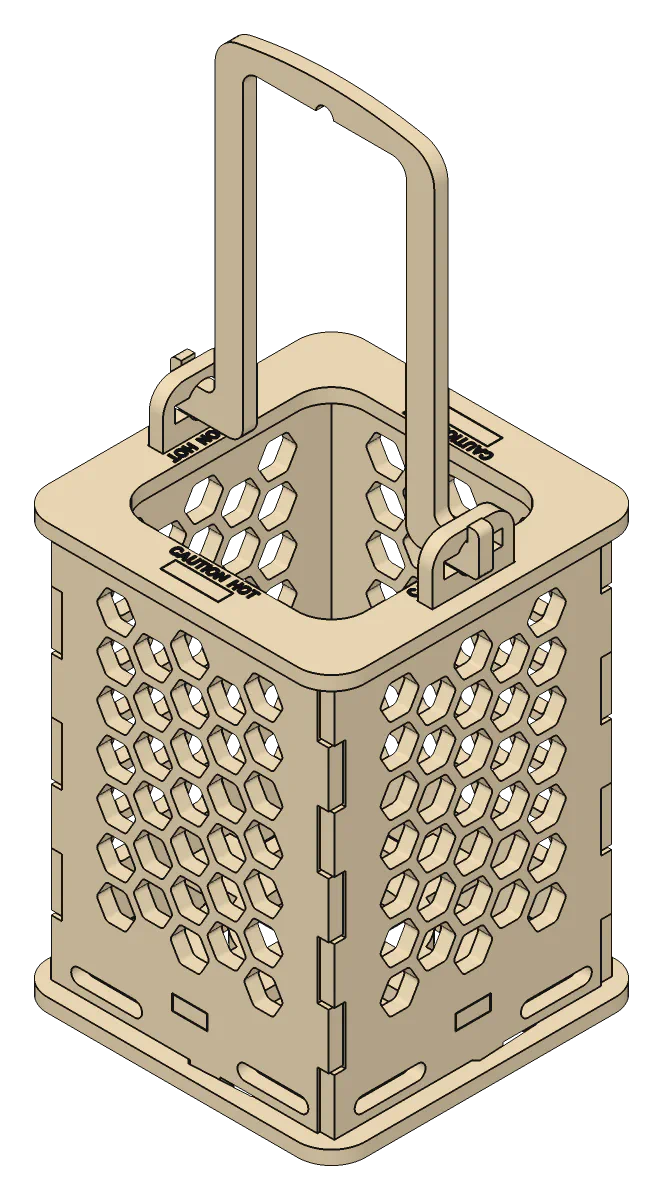

Lantern, window: Hex lattice

Hex lattice

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

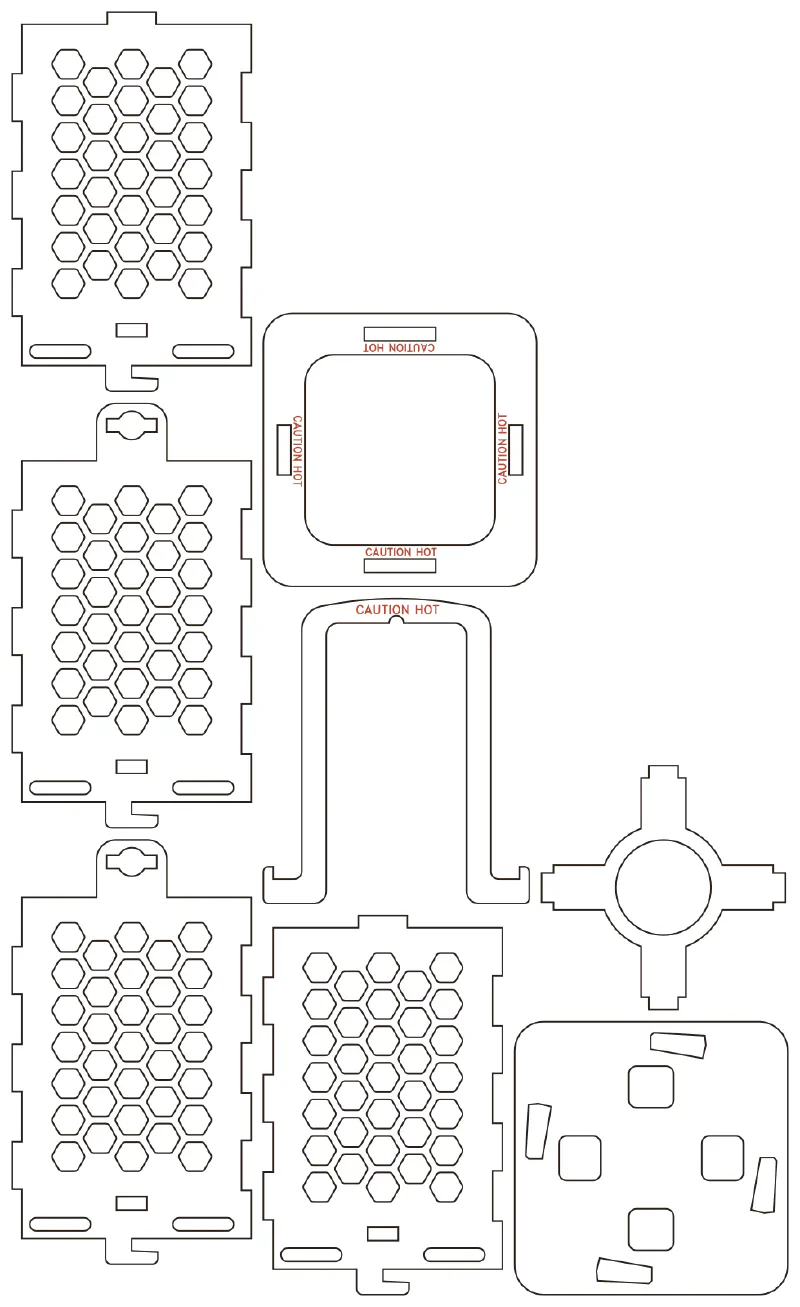

PartsFlat part layout for the Lantern, window: Hex lattice

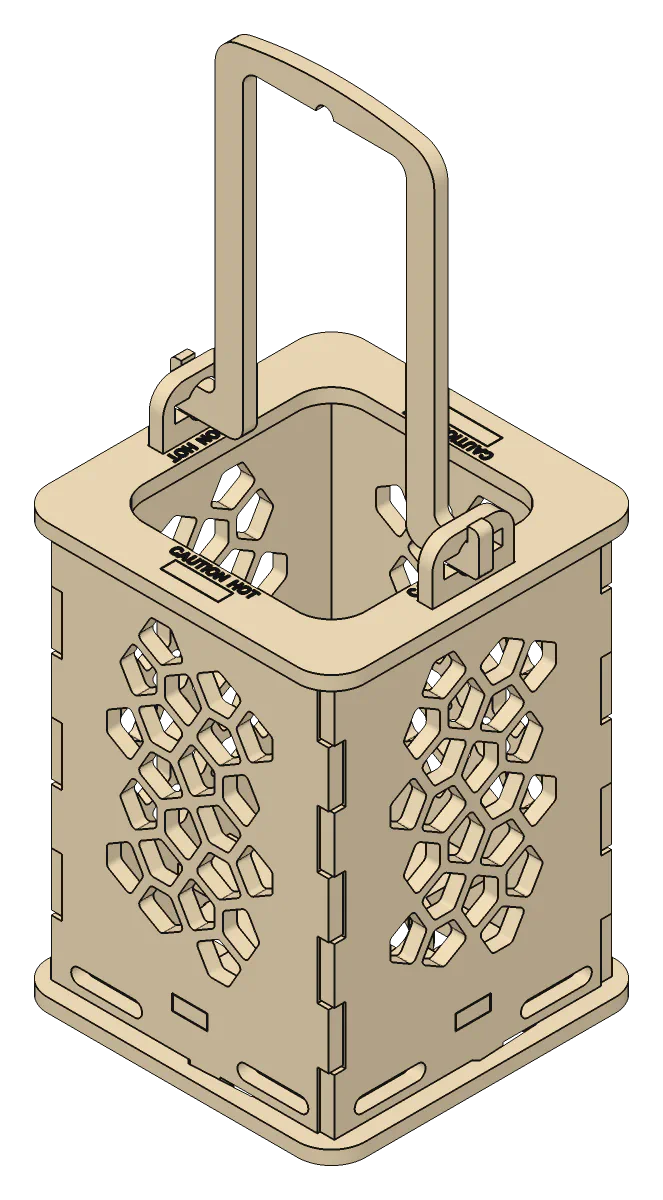

Lantern, window: Cairo lattice

Cairo lattice

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

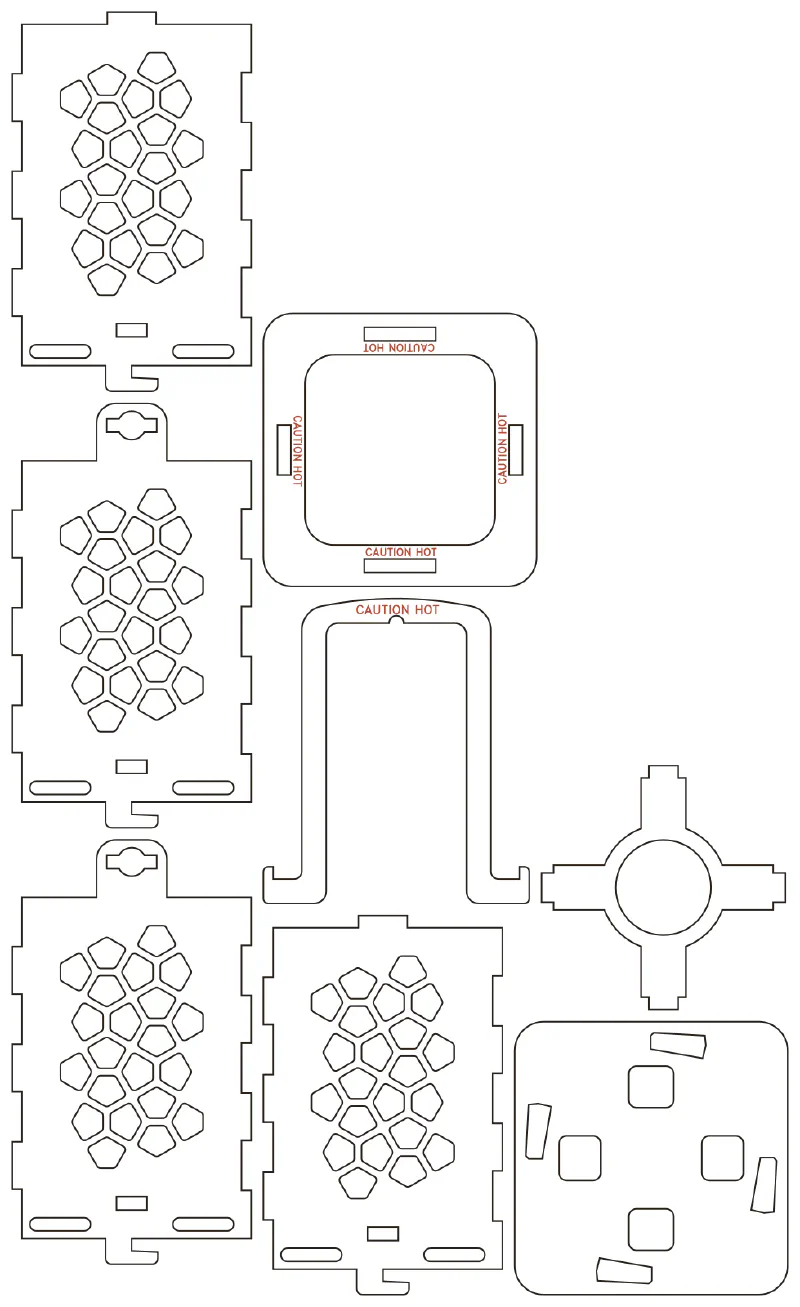

PartsFlat part layout for the Lantern, window: Cairo lattice
Lantern, window: Triangles

Triangles

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

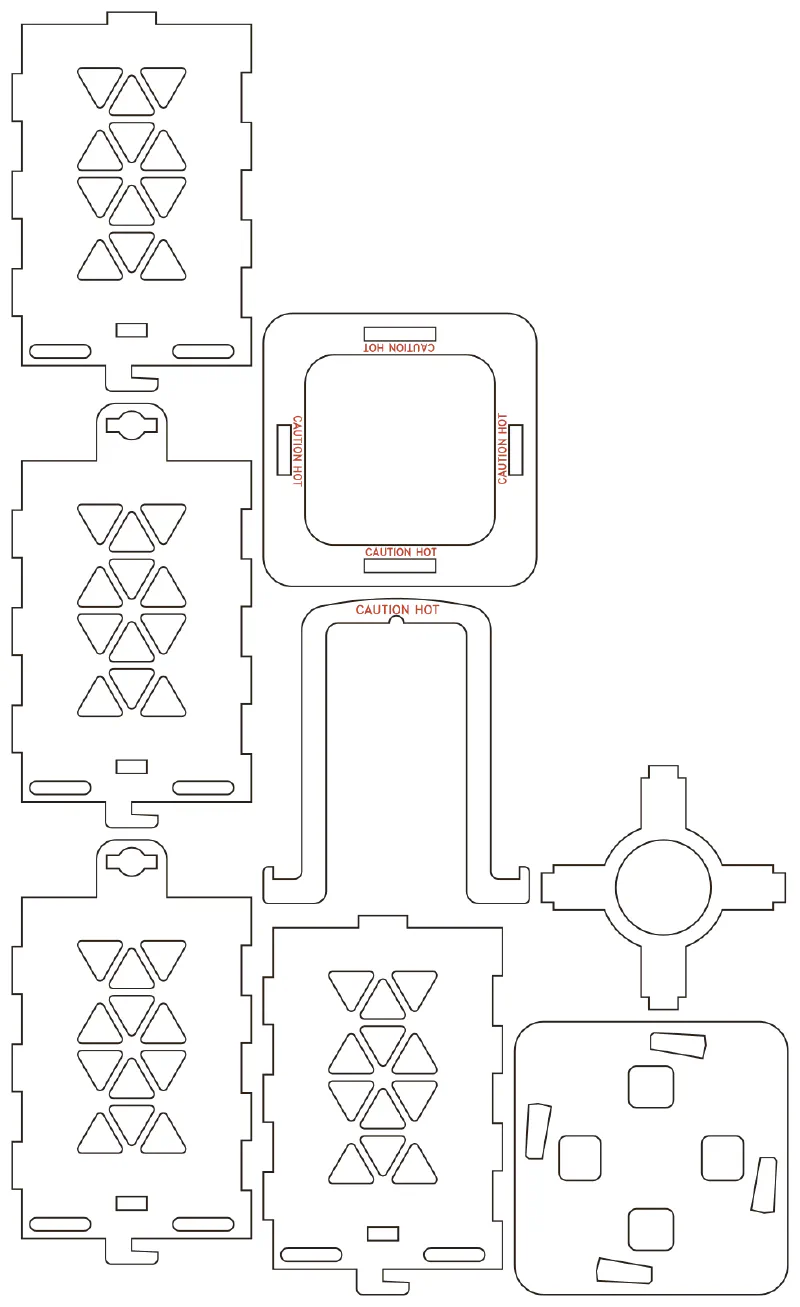

PartsFlat part layout for the Lantern, window: Triangles

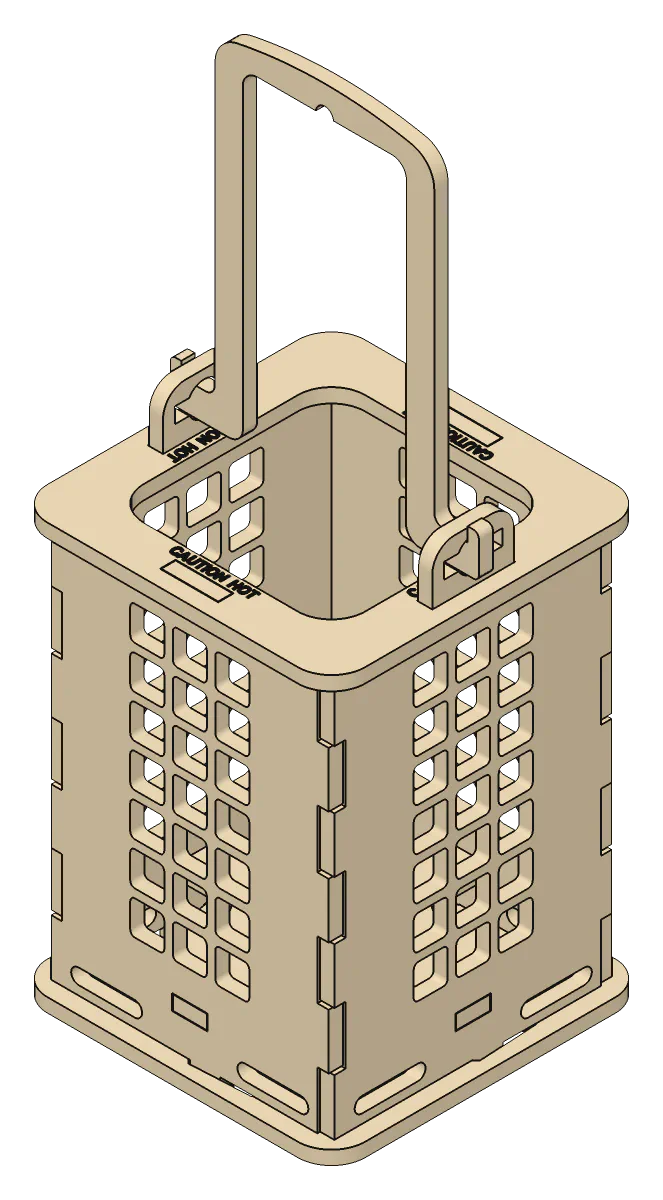

Lantern, window: Squares

Squares

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

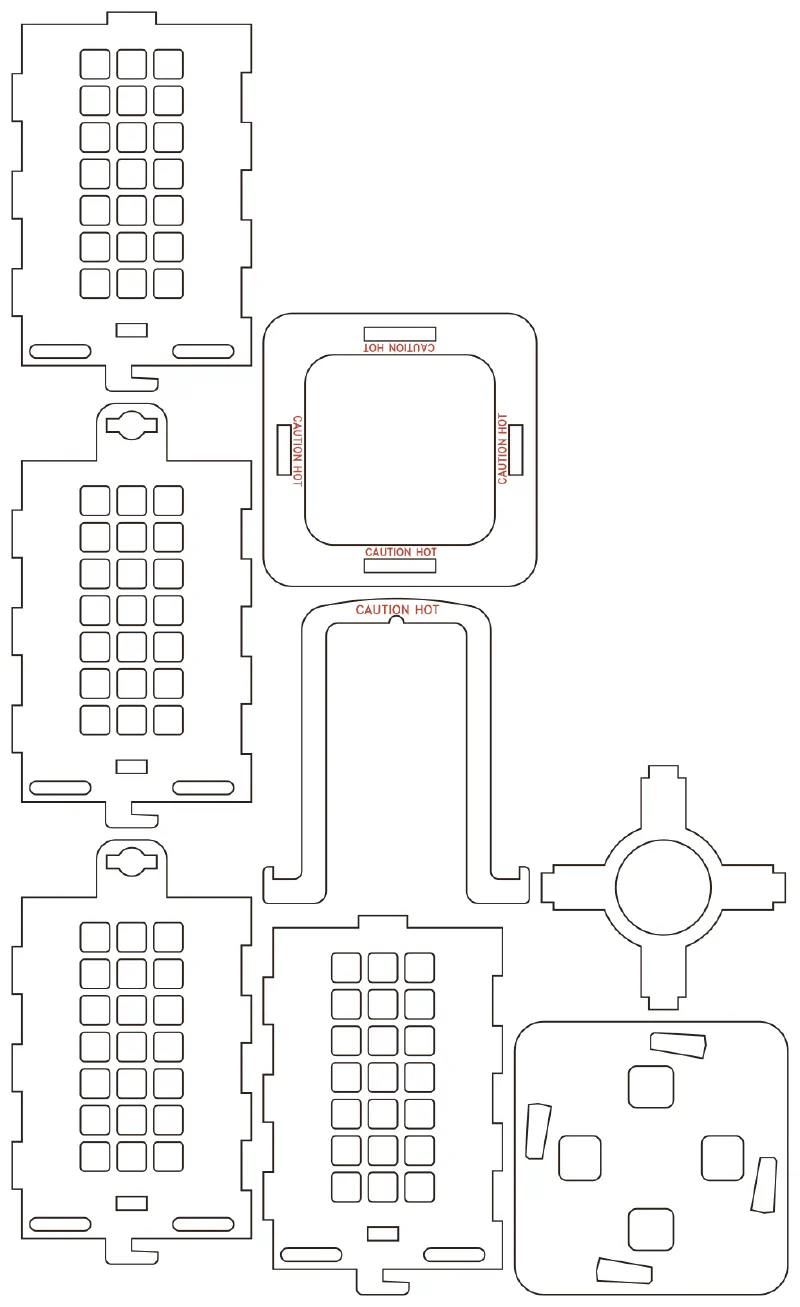

PartsFlat part layout for the Lantern, window: Squares

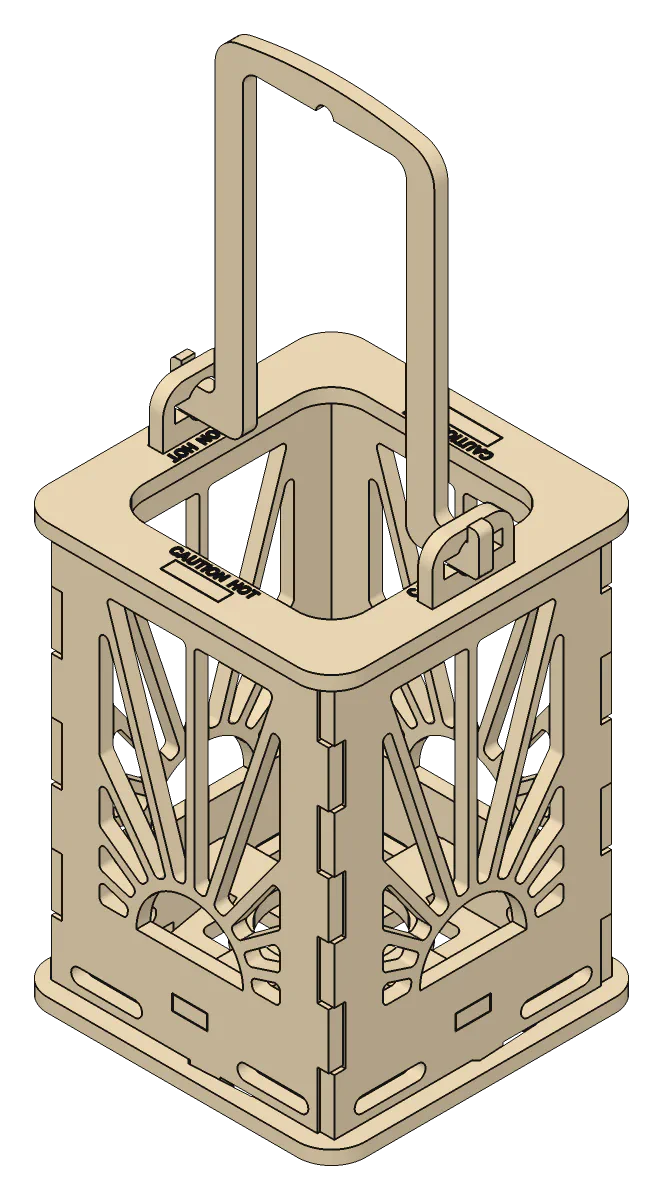

Lantern, window: Sunburst

Sunburst

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

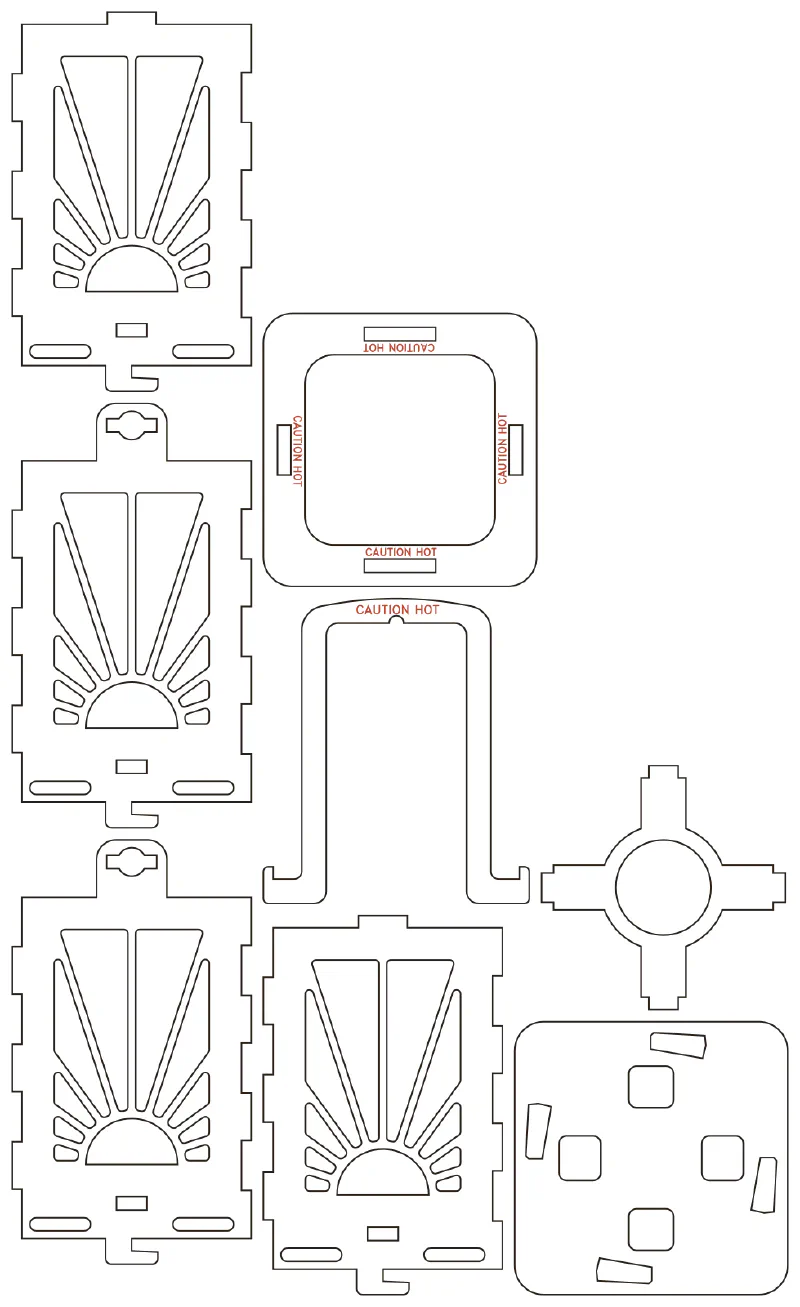

PartsFlat part layout for the Lantern, window: Sunburst

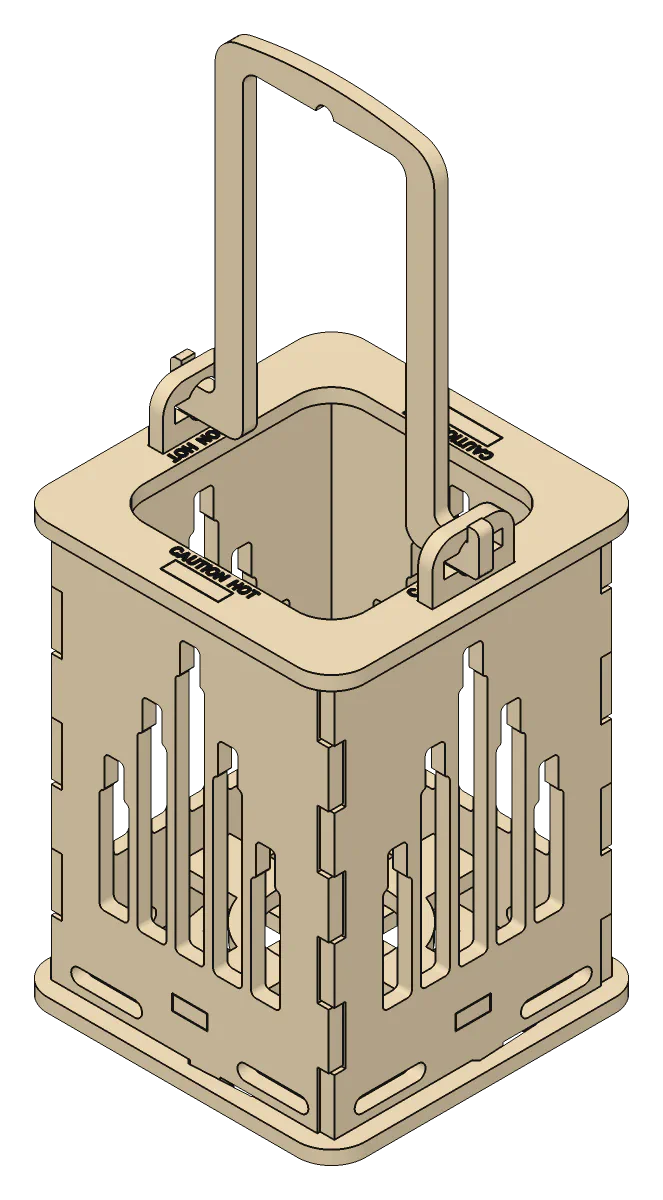

Lantern, window: Skyline

Skyline

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

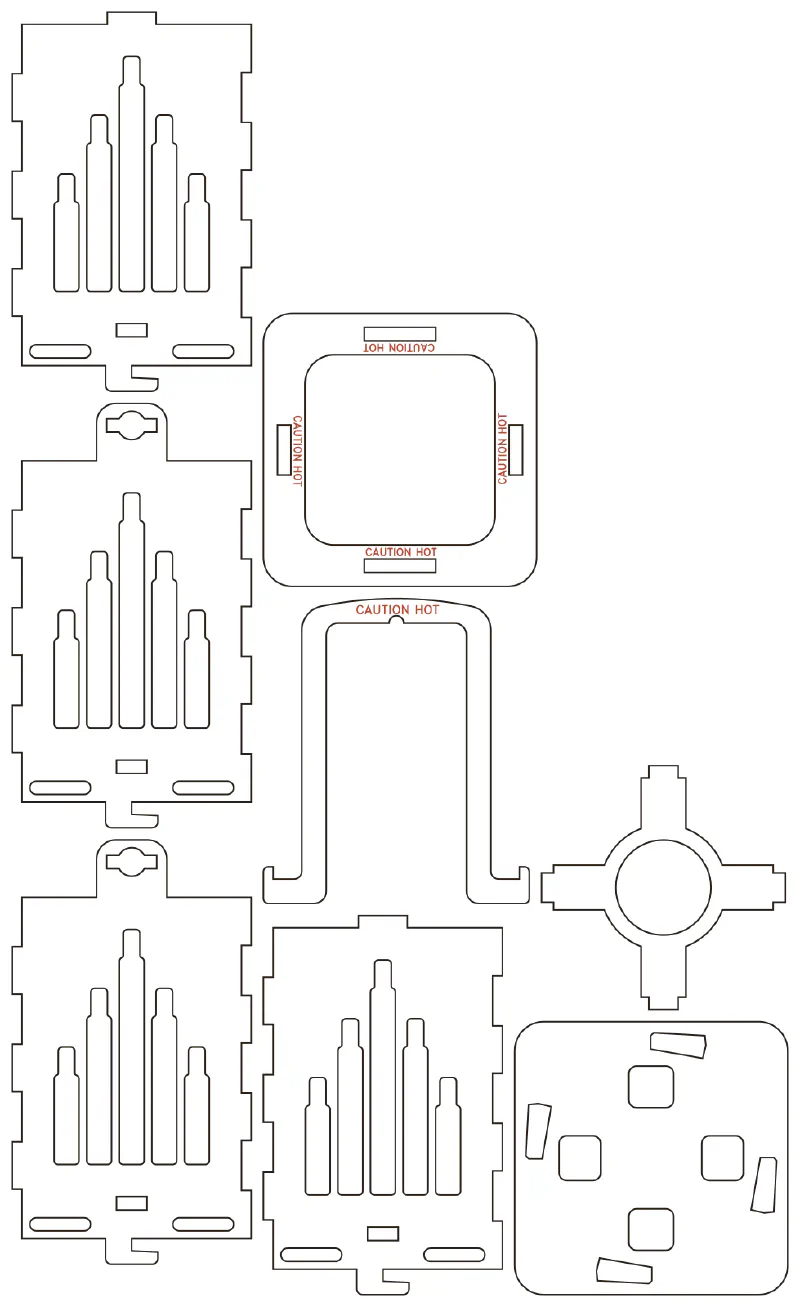

PartsFlat part layout for the Lantern, window: Skyline
Lantern, window: Chevrons

Chevrons

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

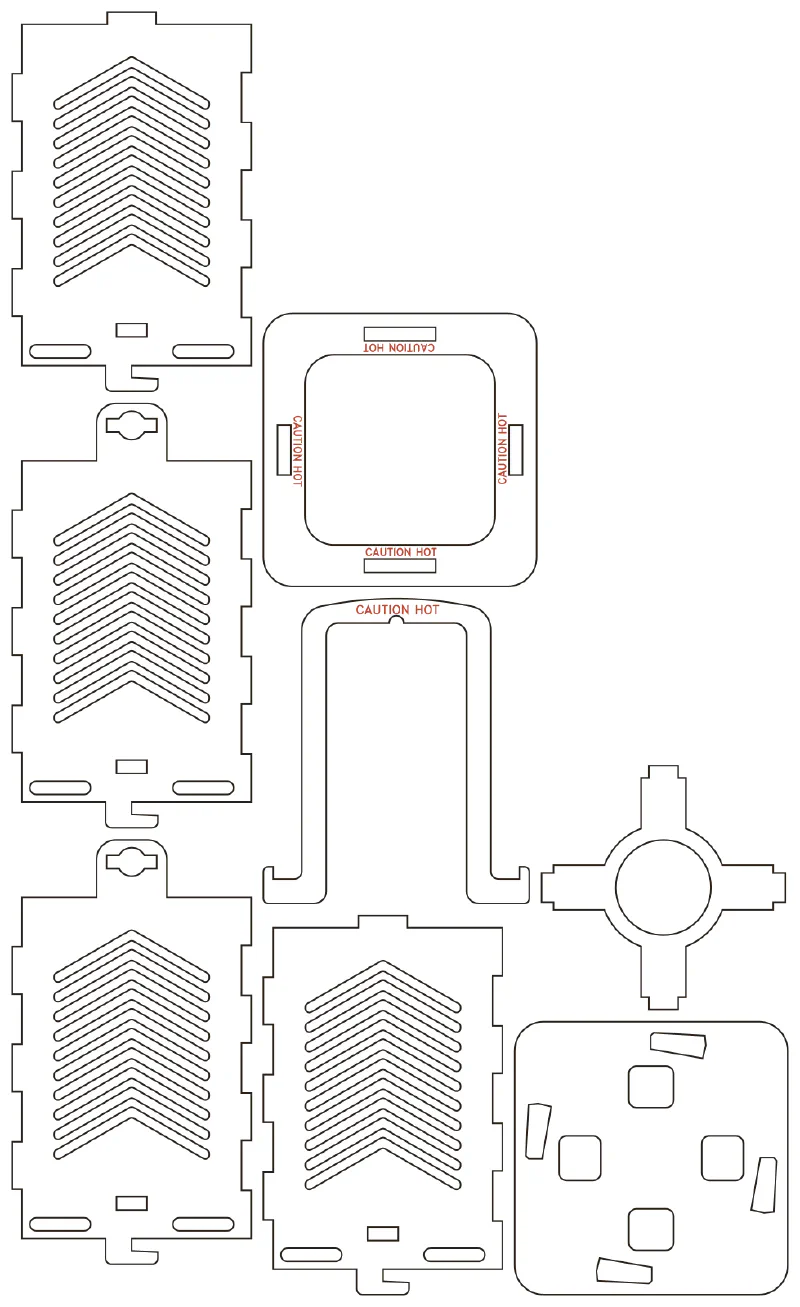

PartsFlat part layout for the Lantern, window: Chevrons
Lantern, window: Starfield

Starfield

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

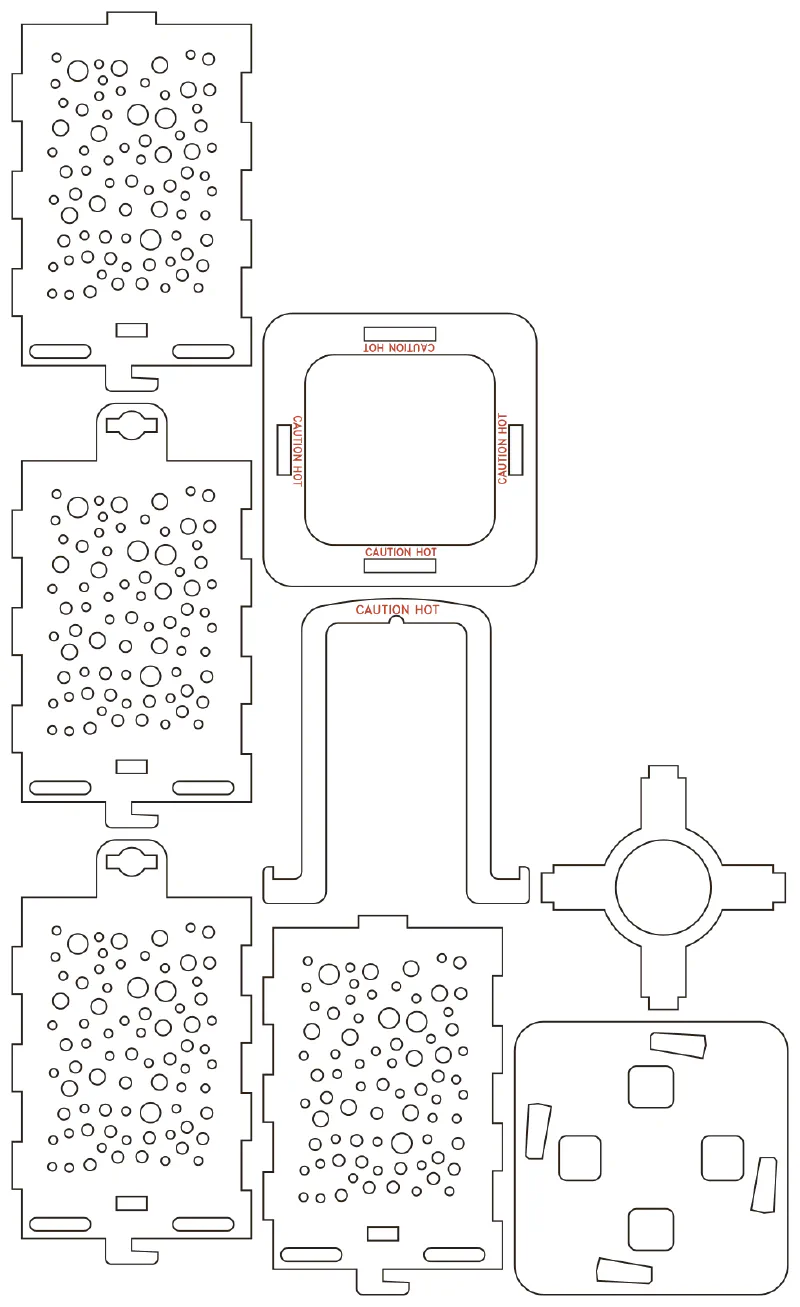

PartsFlat part layout for the Lantern, window: Starfield
Lantern, window: Waves (seigaiha)

Waves (seigaiha)

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

PartsFlat part layout for the Lantern, window: Waves (seigaiha)
Lantern, window: Harlequin

Harlequin

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

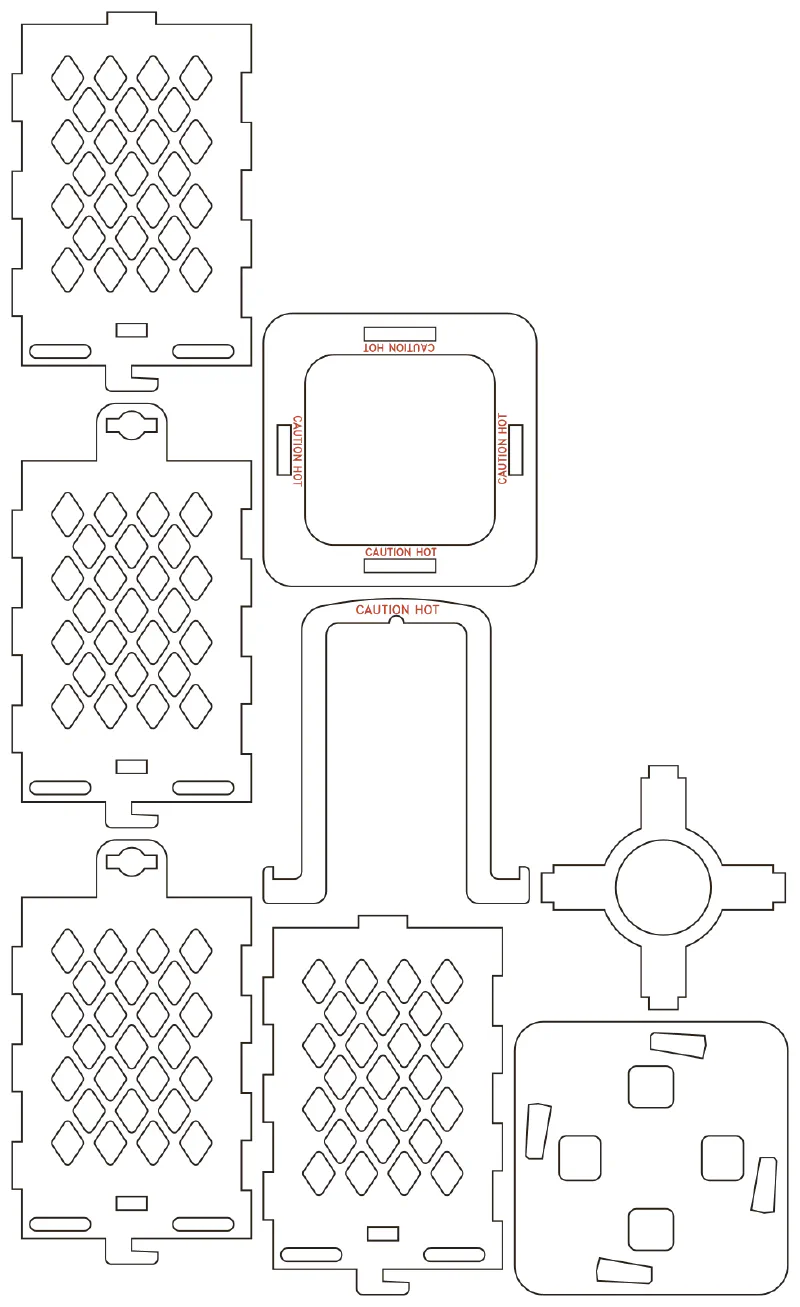

PartsFlat part layout for the Lantern, window: Harlequin
Lantern, window: Eight-point stars

Eight-point stars

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

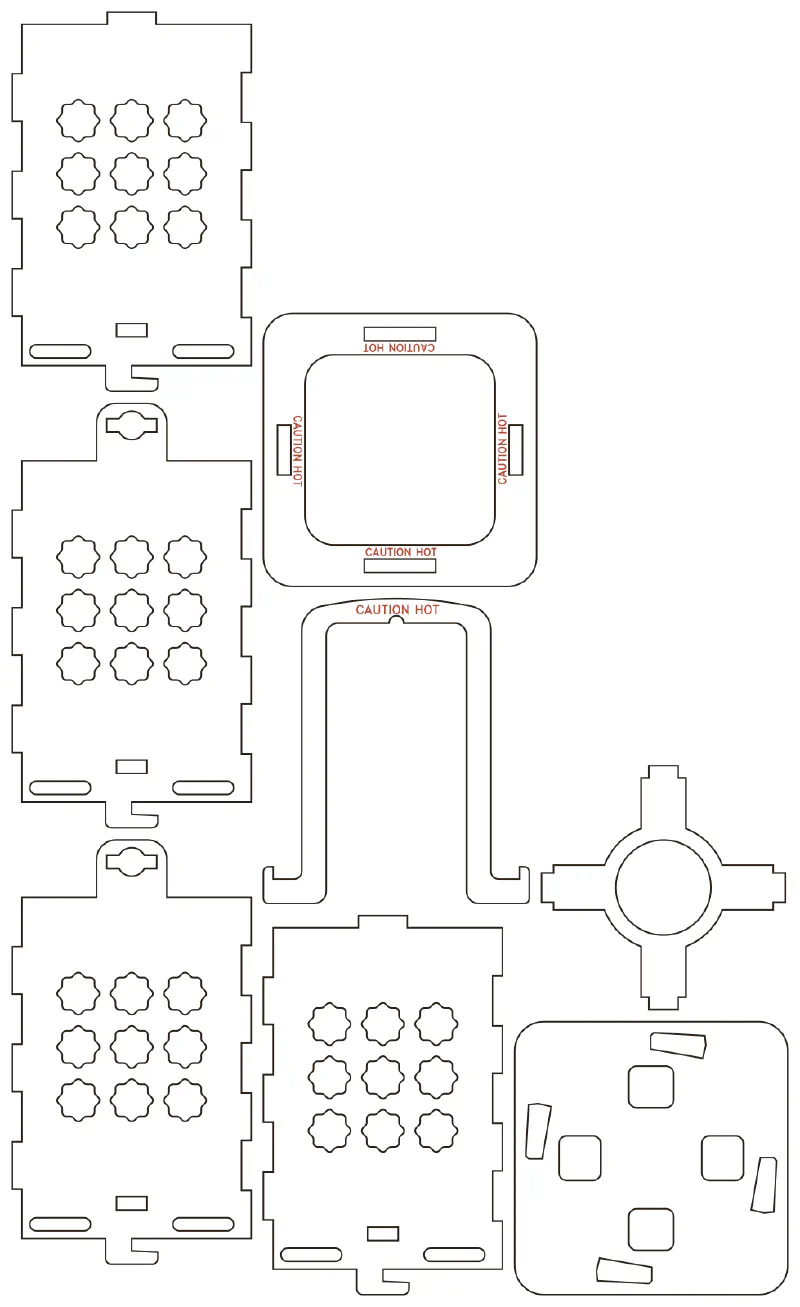

PartsFlat part layout for the Lantern, window: Eight-point stars

Intake

Air slits or holes under the deck, where they cannot reach the flame.

Lantern, intake: Holes

Holes

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

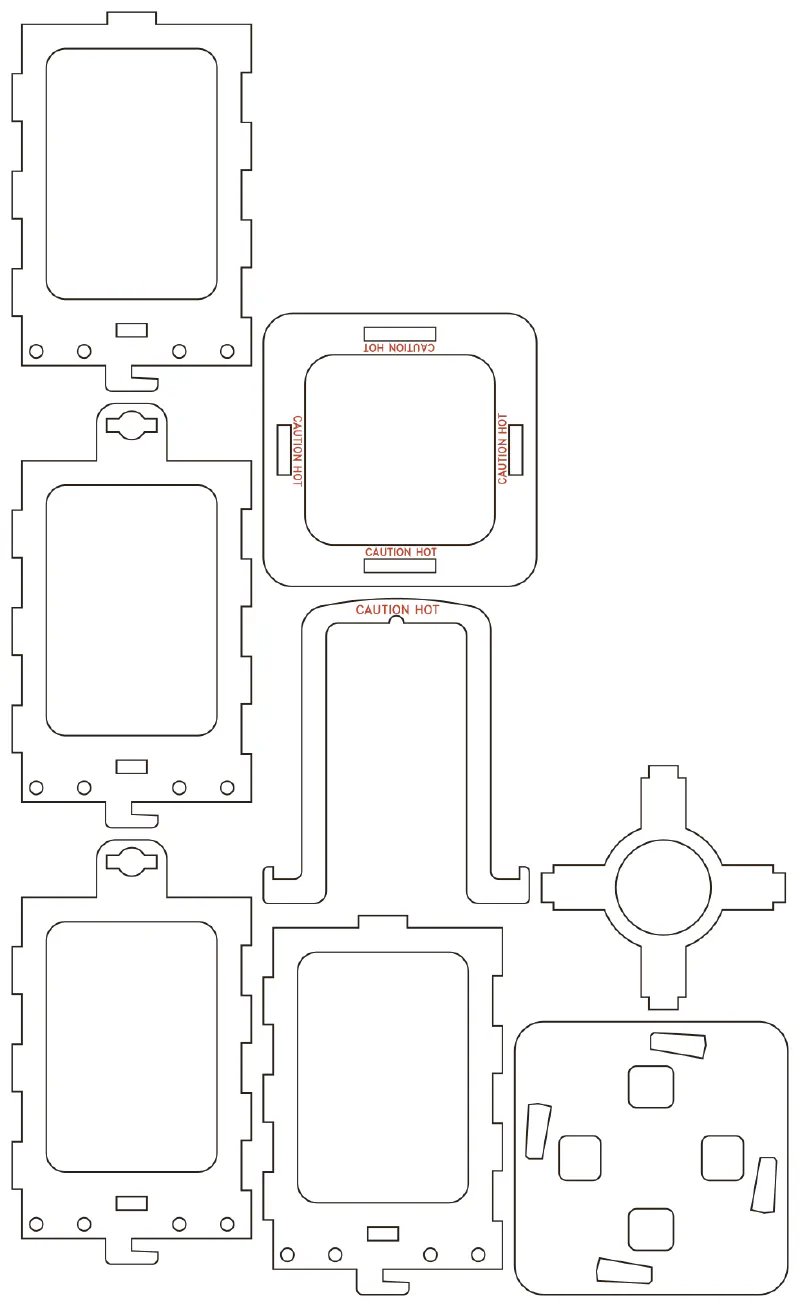

PartsFlat part layout for the Lantern, intake: Holes

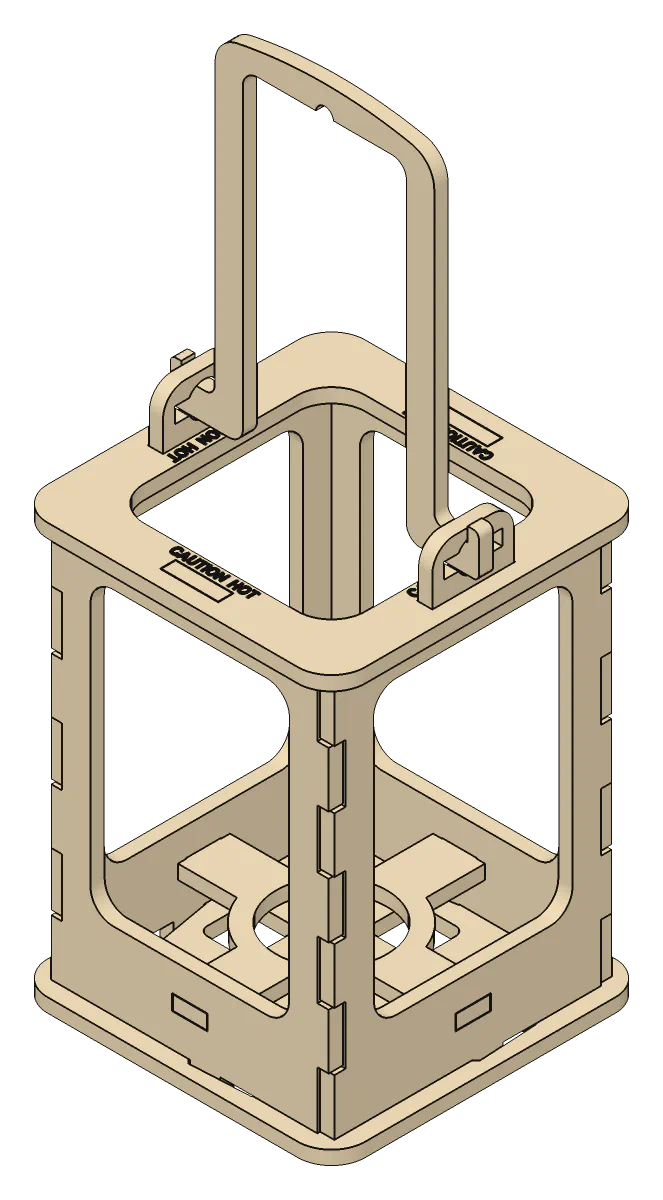

Lantern, intake: None

None

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

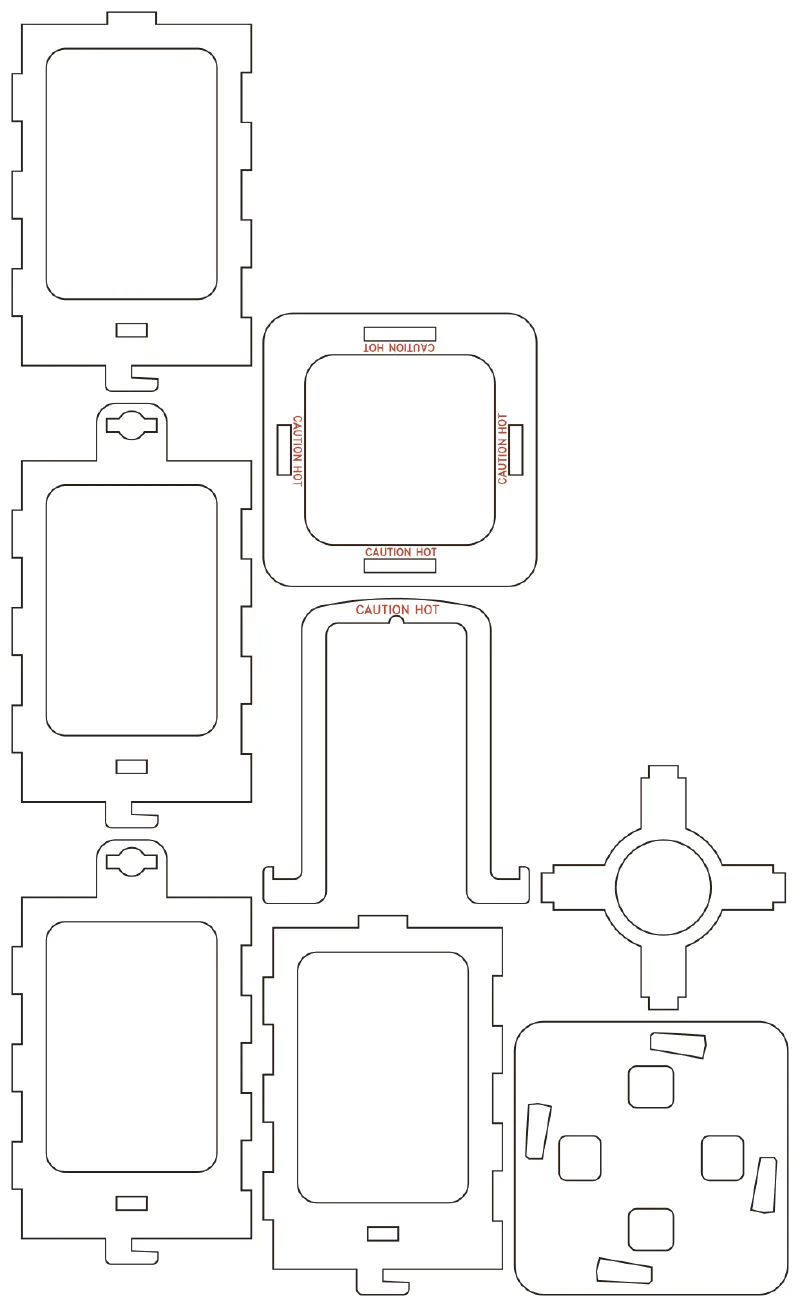

PartsFlat part layout for the Lantern, intake: None

Base vents

A vent through the base under every arm of the deck, or a solid base.

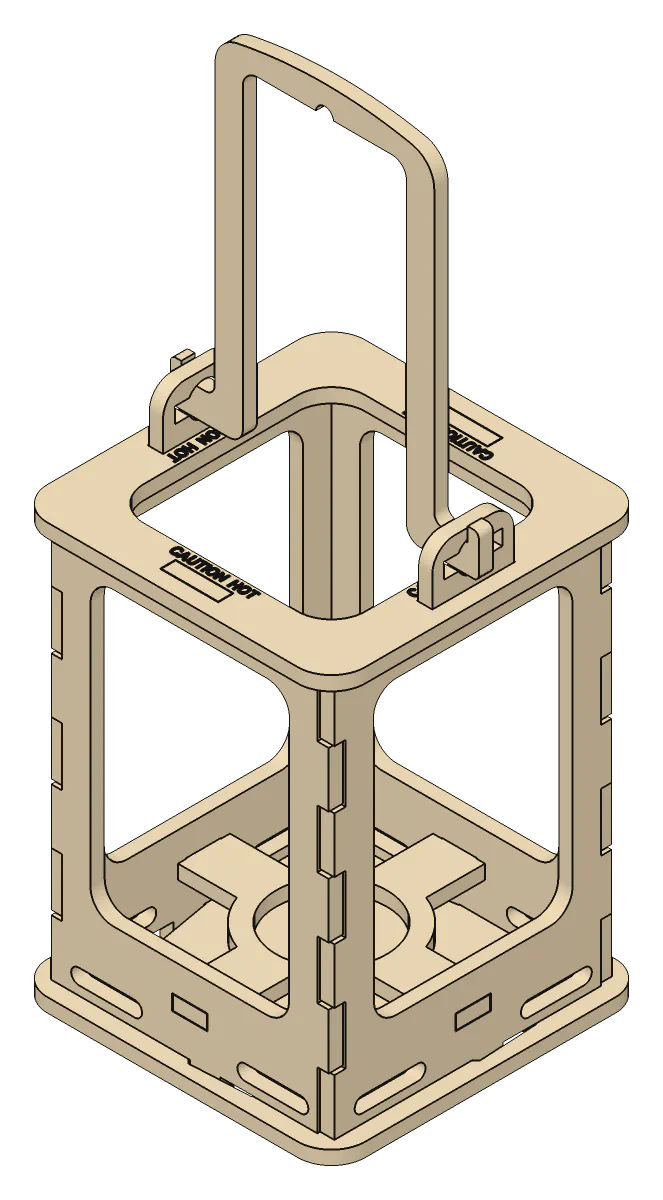

Lantern, base vents: Solid

Solid

Size 112 W × 112 D × 285 H mm · Panels 4 × 95 × 140 mm · Opening 78 mm across · Candle to panel 26 mm · Lock turn 13.5°

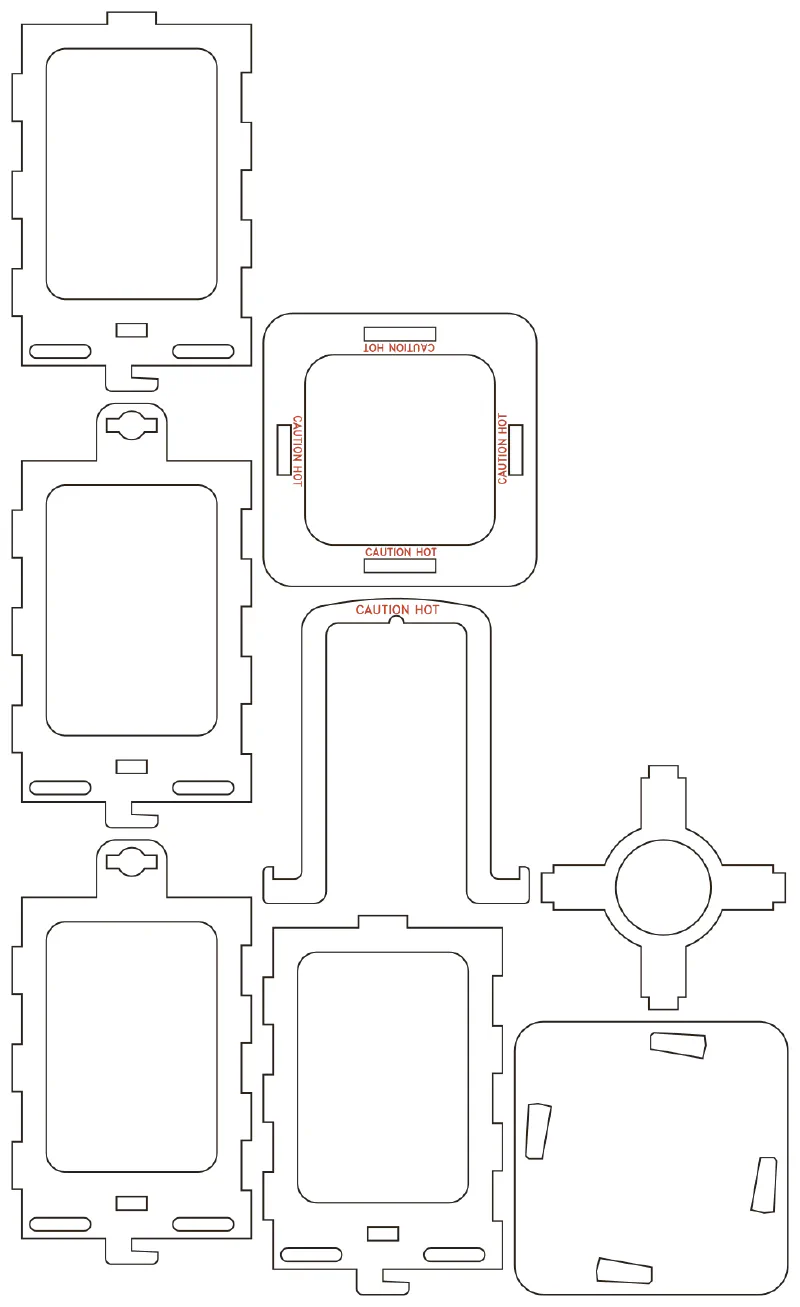

PartsFlat part layout for the Lantern, base vents: Solid
