Flatpak Design Catalogue

Every design here can be cut in our shop or bought as a file for your own machine. Renders and part layouts show each design at its default size; most can be resized and have options.

  • Cut by us: from $50 for a 2’ × 4’ sheet of 1/4" birch plywood and from $35 for 2’ × 2’, filled with as many parts as fit. Densely packed and double-sided sheets cost more.
  • SVG files: $5 for a stock file, or $20 for a layout sized to your material with your text and logo.
  • Design it yourself: every design here is a Tenon product. Tenon sizes them, nests them on your stock and sends the job straight to MapleCAM to cut. Both are free to download.

Boxes

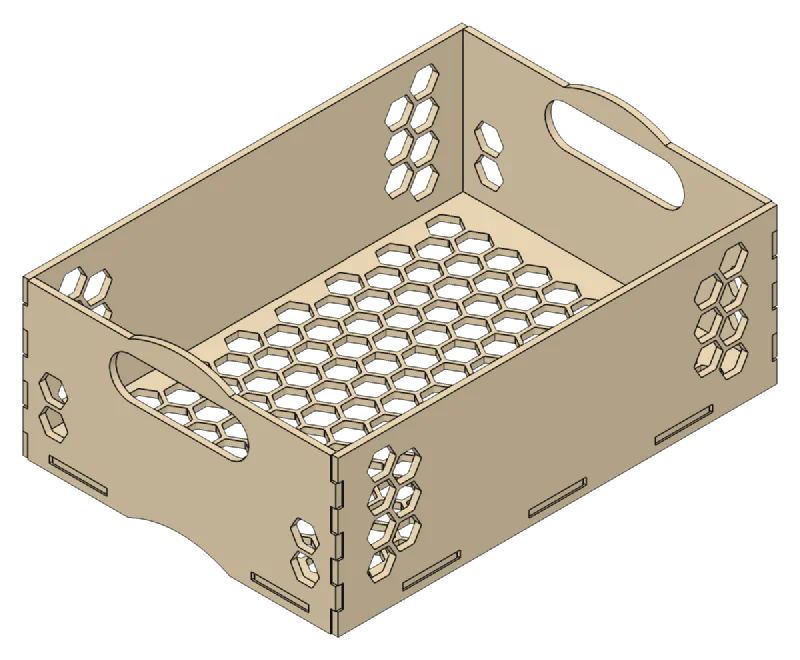

Two produce boxes stacked on a kitchen counter, filled with zucchini

Produce Box

5 pieces · Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

A vented crate for produce and market goods. Its sides and bottom are cut with a strong lattice of vent holes, and its corners are finger-jointed.

Details, 14 options and 3D view →

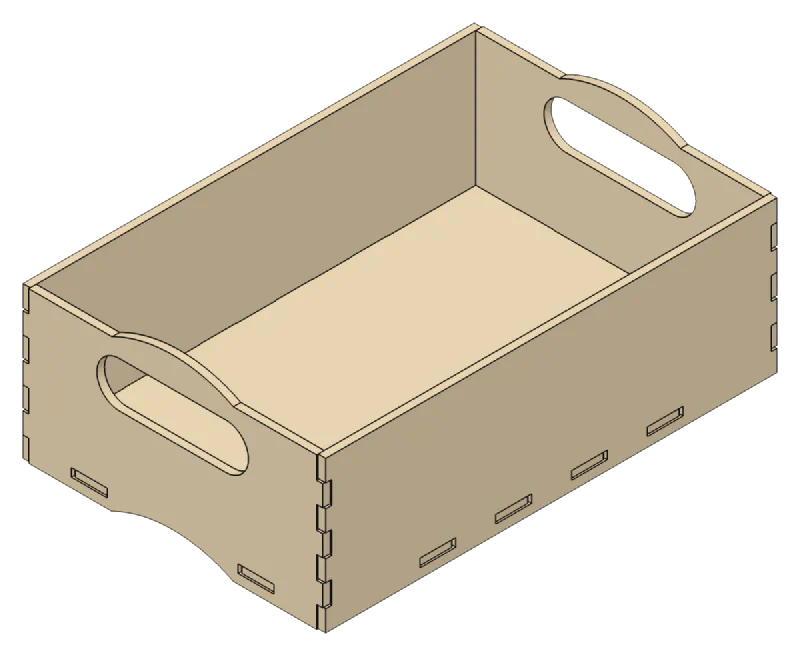

Three project boxes stacked, showing the handle cutouts and tab joinery

Project Box

5 pieces · Outside 340 × 205 × 89 mm · Inside 330 × 195 × 78 mm · Capacity 4.5 L

A glued storage box with finger-jointed corners and a captured bottom. It can take a drop-in lid, a stacking crown and end handles.

Details, 5 options and 3D view →

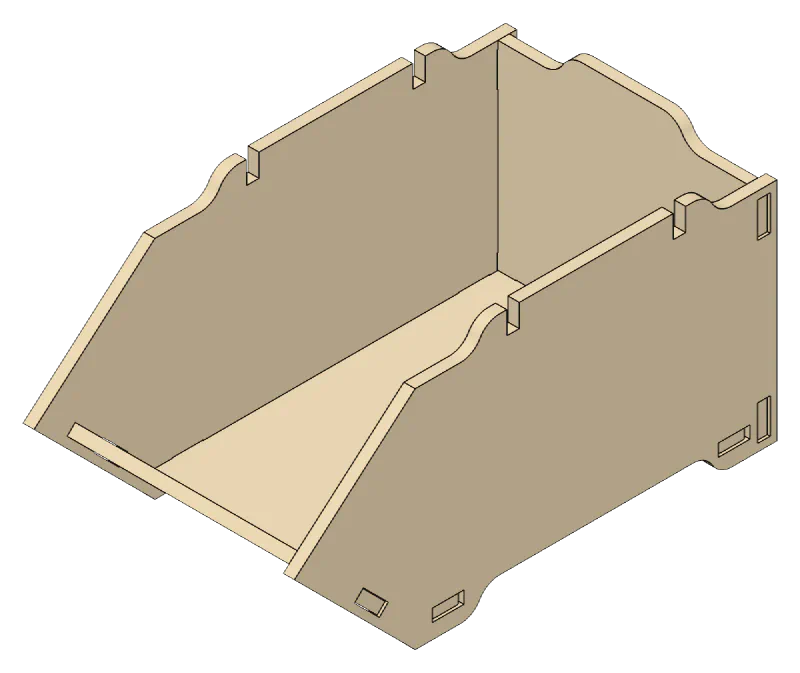

Stackable Bin, made in our shop

Stackable Bin

5 pieces · Outside 112 × 141 × 90 mm

An open-front parts bin with a low sloped front that keeps small parts in. Bins stack: the walls' bottom edges fit over the top edges of the bin below, which holds the bin on it in place. Small clips, cut with it, push onto the touching walls at the back and across the open fronts and link bins side by side.

Details, 9 options and 3D view →

Box Inserts

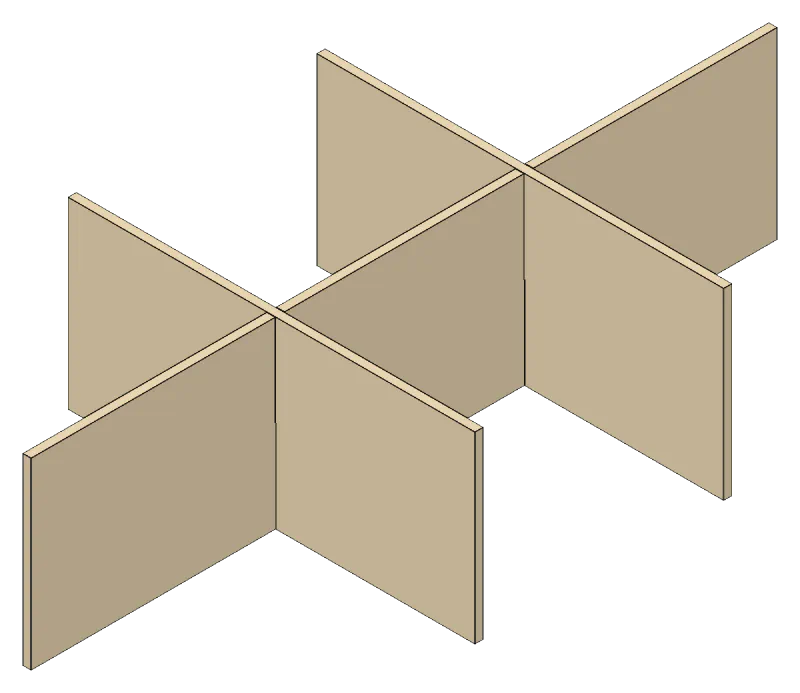

3D render of the Divider design

Divider

3 pieces

An egg-crate divider insert that splits a box into a grid of compartments. Its boards cross in half-lap notches and hold by friction.

Details and 3D view →

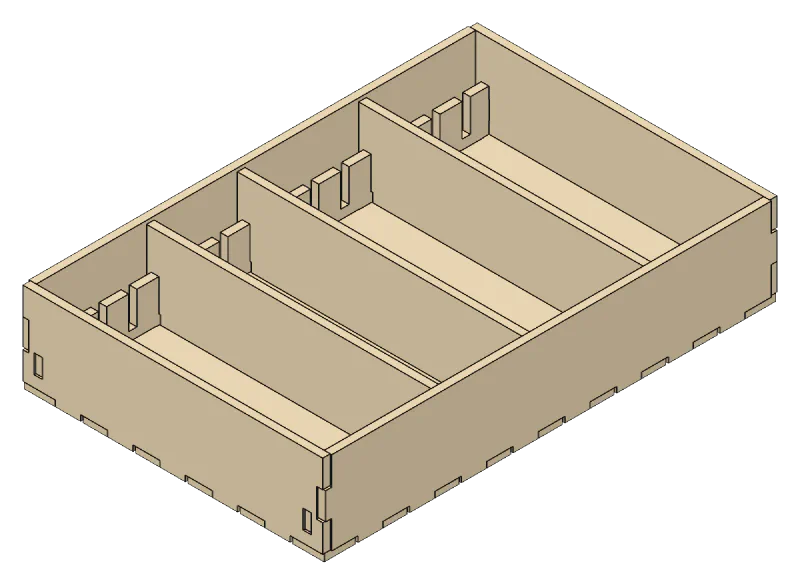

3D render of the Divider Tray design

Divider Tray

10 pieces

A finger-jointed tray whose long walls are lined with notched combs, so its loose dividers drop in anywhere along it and move at will.

Details and 3D view →

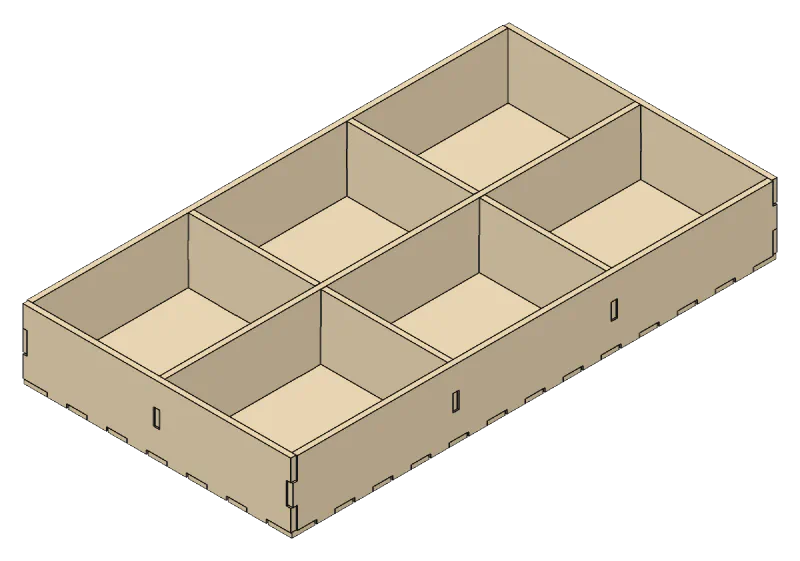

3D render of the Tray design

Tray

8 pieces

A glued organiser tray with a slotted floor. Cross dividers split it into bays, and each bay splits into its own rows.

Details, 1 option and 3D view →

Games & Toys

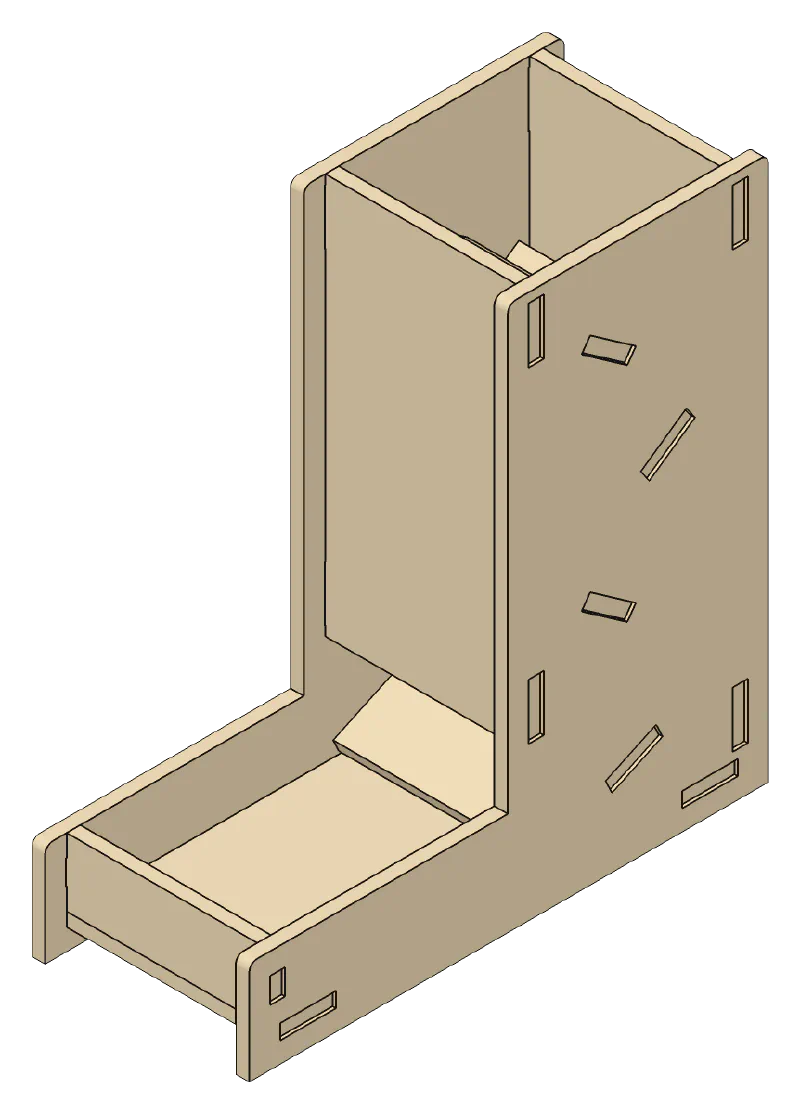

3D render of the Dice Tower design

Dice Tower

9 pieces · Size 61 W × 61 D × 215 H mm · Footprint 61 × 61 × 215 mm tall · Narrowest passage 24 mm, for 24 mm

A dice tower for d6 or d20 dice: dice tumble down baffles that bounce them front to back and side to side, roll off a ramp and out through a slot onto the table.

Details, 8 options and 3D view →

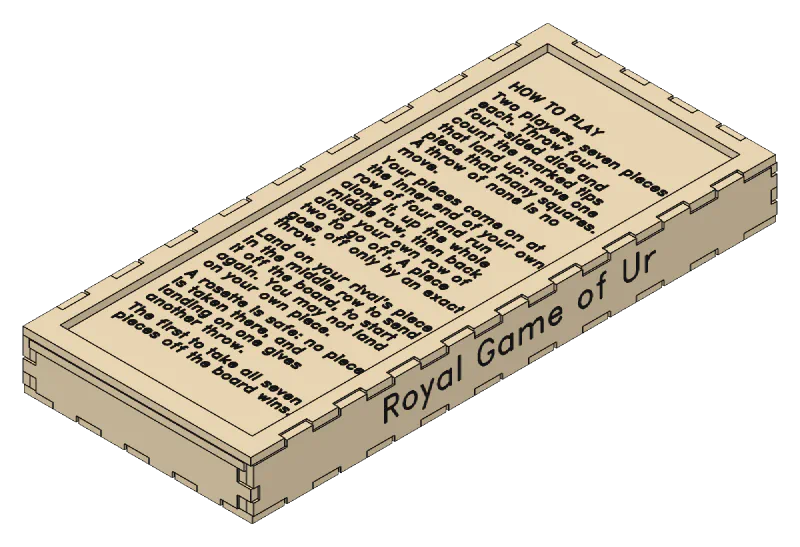

3D render of the Royal Game of Ur design

Royal Game of Ur

23 pieces · Size 91 W × 191 D × 31 H mm · Box 91 × 191 × 31 mm

The Royal Game of Ur in a box: the board of twenty cells and five rosettes engraved on a sliding lid, seen through a window in the top, and seven pieces a side stored inside with four printed tetrahedral dice.

Details and 3D view →

Gifts & Small Goods

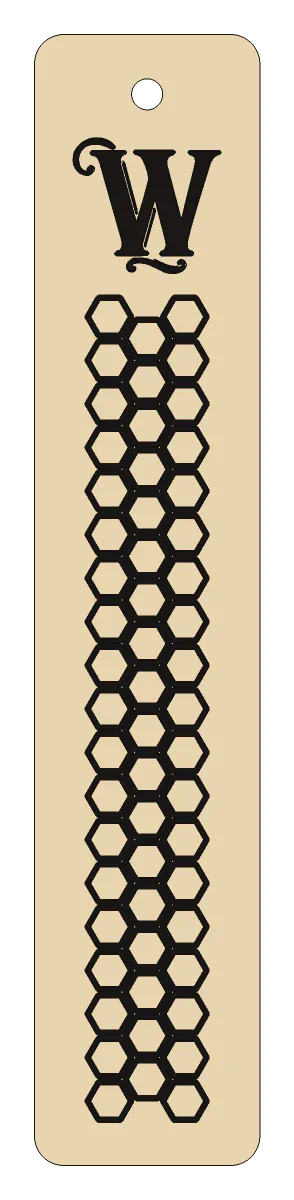

3D render of the Bookmark design

Bookmark

1 pieces · Size 150 × 30 mm, 3 mm thick

A slim wooden bookmark engraved all over with a pattern, a logo set into it, an optional line of your own text, and an optional tassel hole.

Details, 18 options and 3D view →

3D render of the Creator award plate design

Creator award plate

1 pieces · Size 170 × 120 mm, 6 mm thick

A parody milestone award plaque: a play-button badge, the award's title, the recipient and the milestone, engraved solid or in outline to paint in.

Details, 3 options and 3D view →

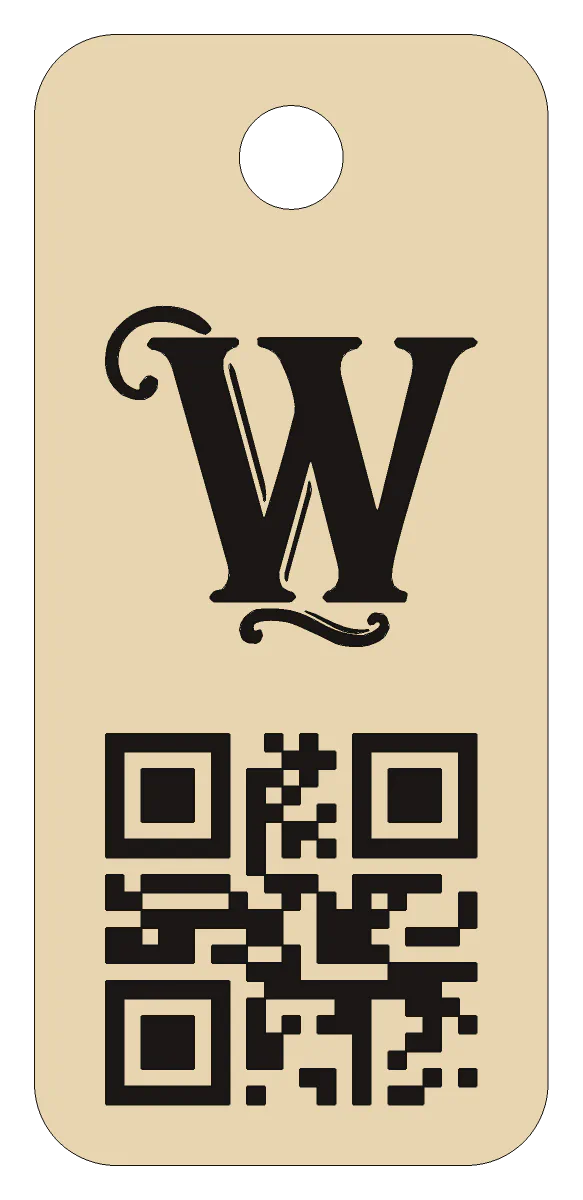

3D render of the Keychain design

Keychain

1 pieces · Size 55 × 25 mm, 3 mm thick · QR modules 0.72 mm modules (marginal)

An upright keychain fob with a logo over a QR code, an optional line of text, and a hole at the top for a split ring.

Details, 9 options and 3D view →

3D render of the Pattern Sampler design

Pattern Sampler

1 pieces · Size 50 × 50 mm, 3 mm thick

A small plate showing one engraving pattern on each face, each named along its foot, for a sample set of every pattern.

Details, 31 options and 3D view →

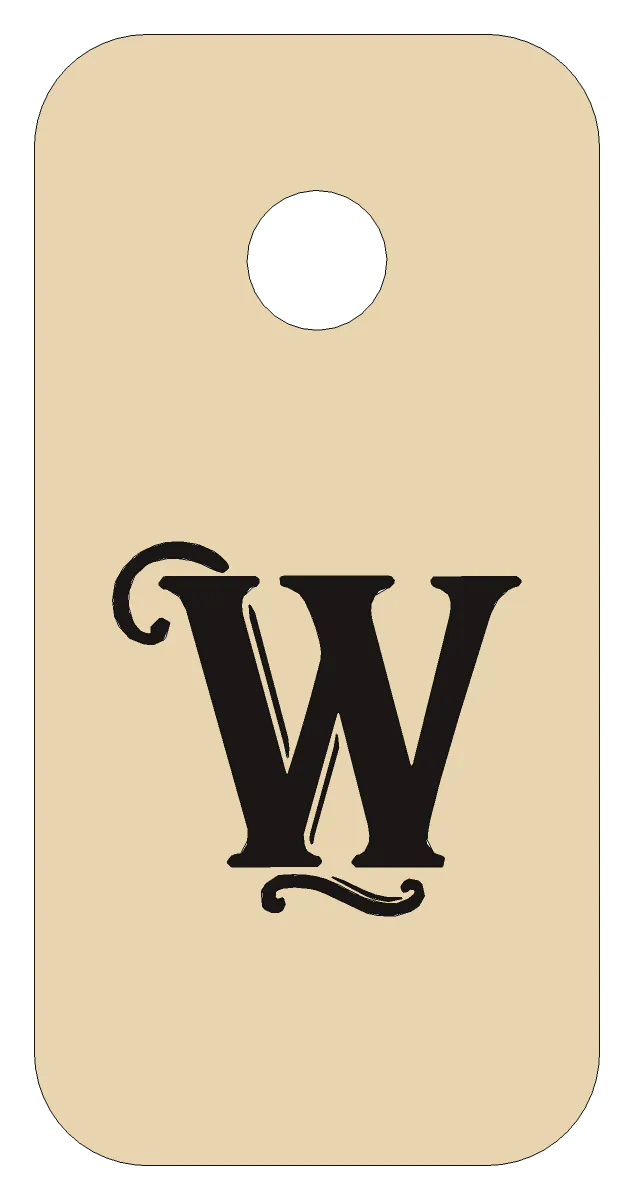

3D render of the Zipper pull design

Zipper pull

1 pieces · Size 30 × 15 mm, 3 mm thick · Cord hole 3.68 mm (3.175 mm bit + 0.5 mm)

A tiny upright fob for a zipper or cord, carrying a logo, a QR code or a word. It fills the smallest leftover pockets.

Details, 4 options and 3D view →

Halloween

3D render of the Jack-o'-lantern design

Jack-o'-lantern

12 pieces · Size 134 W × 134 D × 169 H mm · Panels 4 × 98 × 110 mm · Chimney 20 mm across · Candle to panel 27 mm · Slide 5.0 mm · Light LED tealight only

A ribbed jack-o'-lantern for an LED tealight that goes together without glue: a carved face on the front, walls that finger together and slide onto T-shaped feet in a lobed base, a lid they spring into, and a stem that hooks into the lid and curls round an eye to hang it from.

Details, 7 options and 3D view →

Skadis

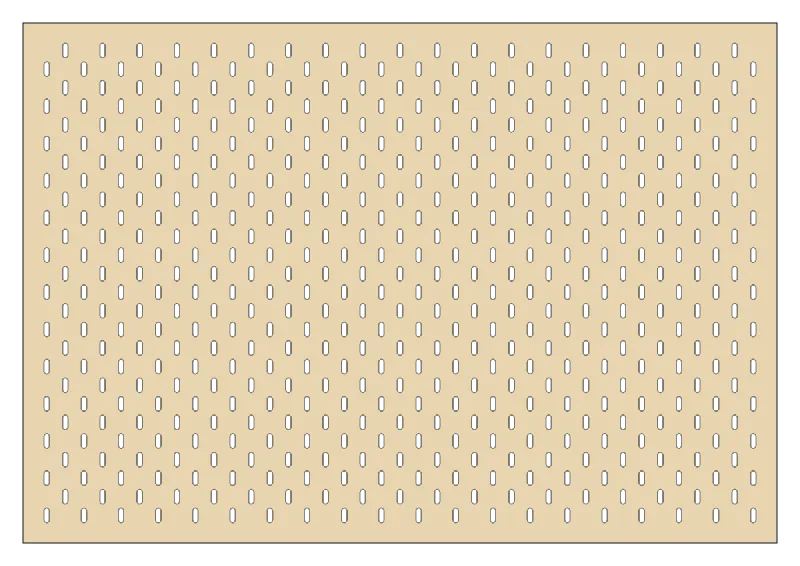

3D render of the Skadis Panel design

Skadis Panel

1 pieces · Size 1160 × 560 mm, 5 mm thick · Panel 560 × 1160 mm · Slots 728 · Borders L 27.5 · R 27.5 · B 22.5 · T 22.5 mm

A pegboard panel cut with the IKEA Skadis slot pattern. Standard Skadis hooks and accessories clip straight in. Aligned panels hang side by side or stacked as one continuous pegboard, screwed through the gaps between the slots to strapping on the wall.

Details, 2 options and 3D view →

Misc

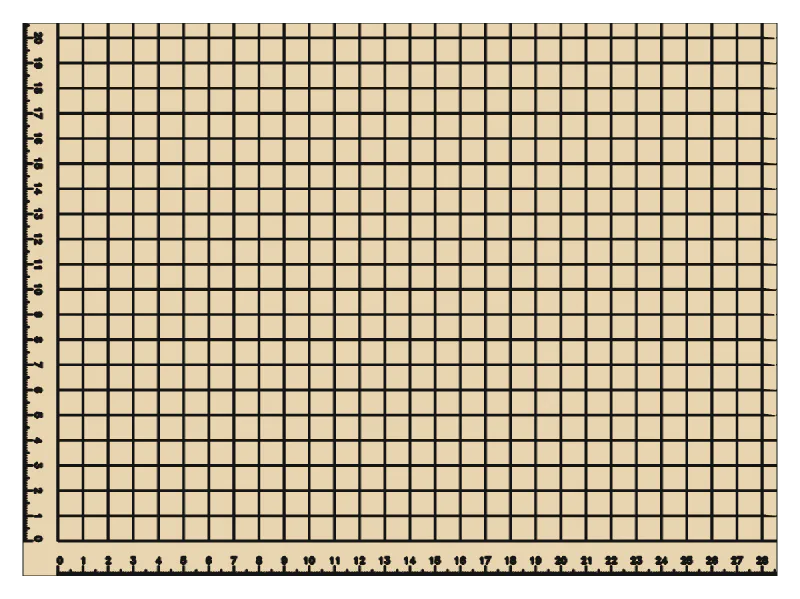

3D render of the Cutting board design

Cutting board

1 pieces · Size 300 × 220 mm, 5 mm thick

A flat cutting mat engraved with rulers along two edges and a 10 mm alignment grid. It turns leftover sheet into a useful shop aid.

Details, 5 options and 3D view →

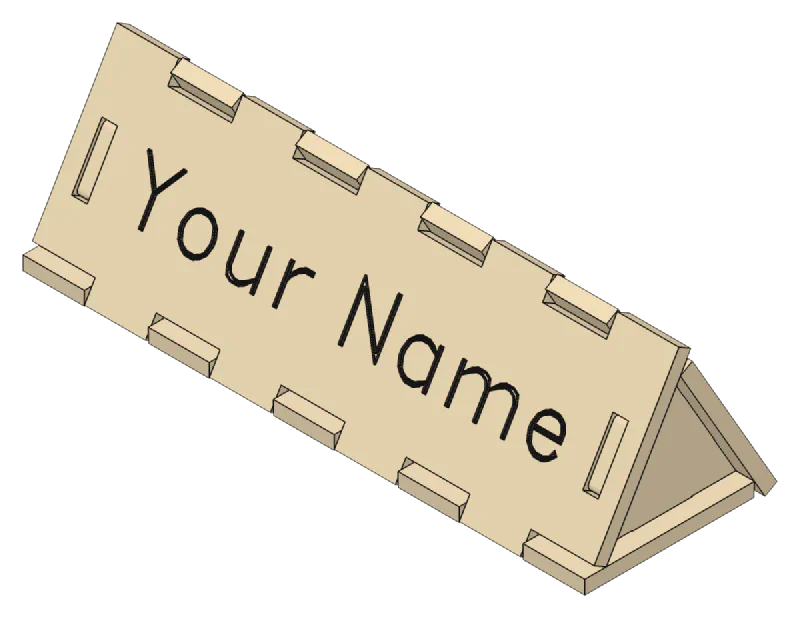

3D render of the Desk Sign design

Desk Sign

5 pieces · Size 200 long × 70 deep × 61 tall mm · Text height 19.7 mm

A name plate for a desk: a triangular prism with a line or two of engraved text on both sloping faces, so it reads from either side.

Details, 3 options and 3D view →

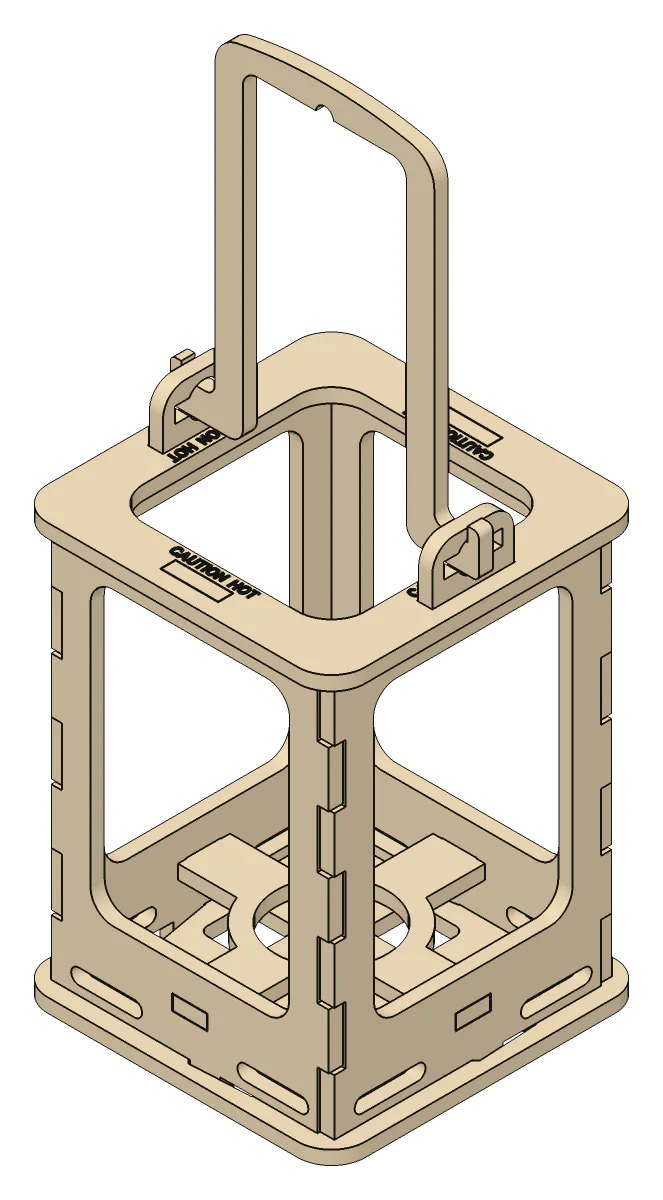

Lantern, made in our shop

Lantern

10 pieces · Size 103 W × 100 D × 289 H mm · Panels 4 × 78 × 140 mm · Opening 56 mm across · Candle to panel 17 mm · Slide 5.0 mm

An open-topped tealight lantern that goes together without glue. Its panels finger together and stand on T-shaped feet slid into the base, a skeleton deck holds the candle, and a captive bail carries it.

Details, 31 options and 3D view →

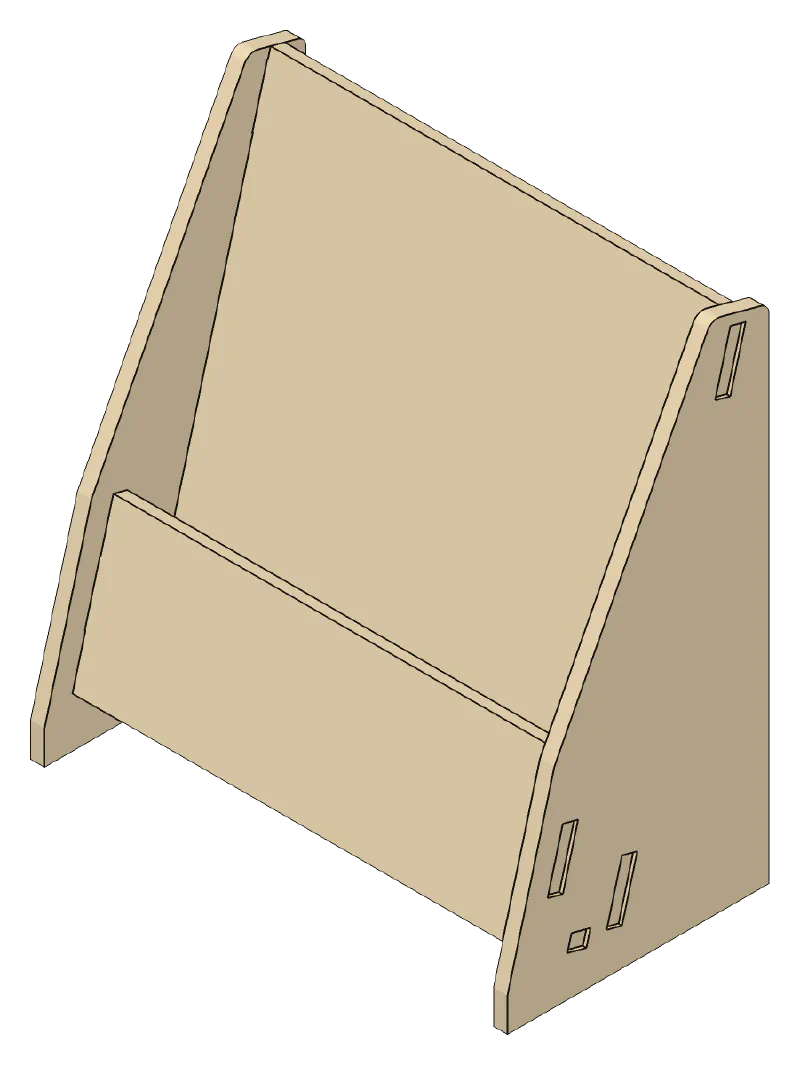

3D render of the Leaflet Display design

Leaflet Display

5 pieces · Size 166 W × 91 D × 179 H mm · Pocket 156 × 20 mm

A counter-top stand that holds a stack of flyers, brochures or business cards leaning back: a pocket of back, front and floor boards tabbed between two cheeks.

Details, 4 options and 3D view →

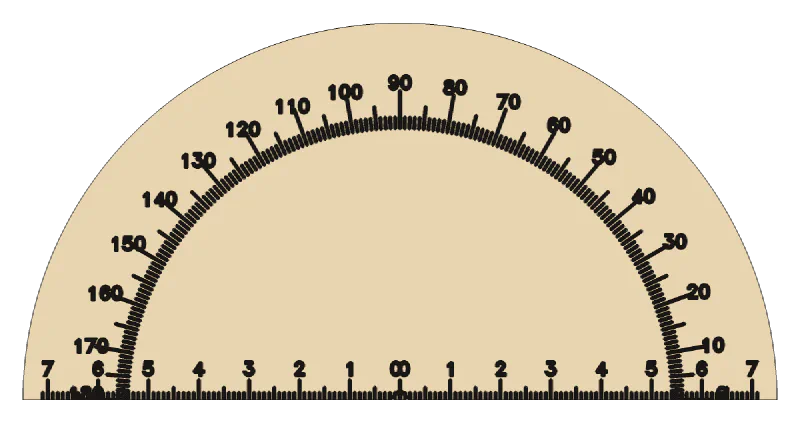

3D render of the Protractor design

Protractor

1 pieces · Size 100 × 56 mm, 5 mm thick

A semicircular protractor engraved with degree ticks around its arc.

Details, 1 option and 3D view →

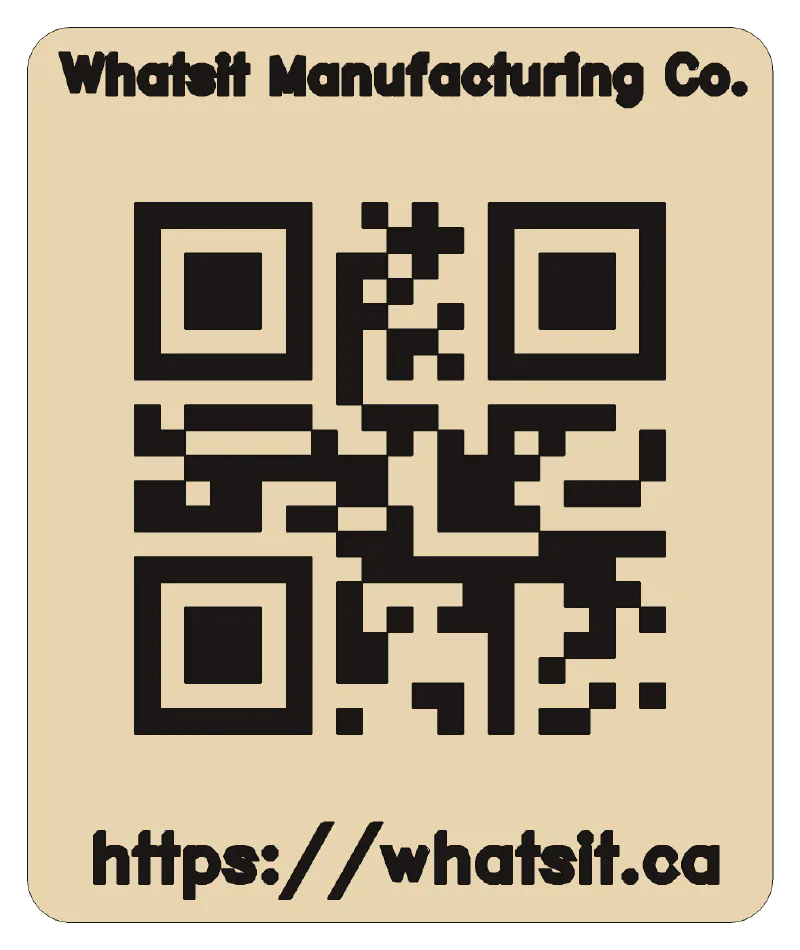

3D render of the QR plate design

QR plate

1 pieces · Size 60 × 50 mm, 5 mm thick · QR modules 1.52 mm modules (best)

A rectangular or round plate engraved with a QR code for any link or text, with a line of text above the code and one below.

Details, 2 options and 3D view →

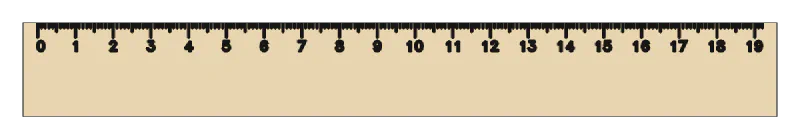

3D render of the Ruler design

Ruler

1 pieces · Size 200 × 25 mm, 5 mm thick

A thin ruler engraved with a centimetre scale, an inch scale, or both. It uses up long narrow offcuts.

Details, 4 options and 3D view →

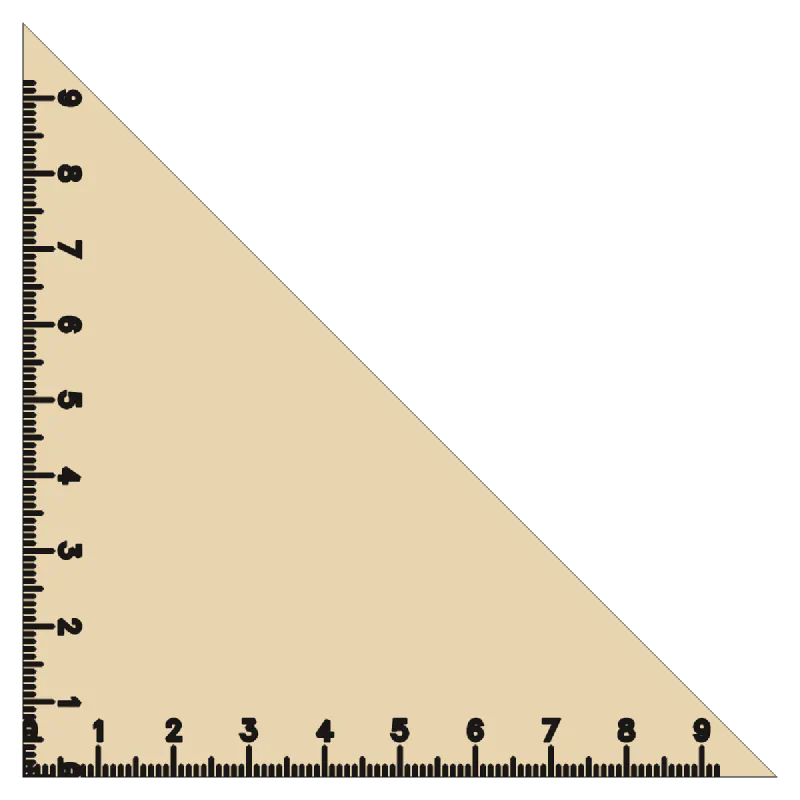

3D render of the Set square design

Set square

1 pieces · Size 80 × 80 mm, 5 mm thick

A drafting set square in 45-45-90 or 30-60-90 form, engraved with millimetre ticks along both legs and degrees along the hypotenuse, a ticked triangular cutout in the middle.

Details, 4 options and 3D view →

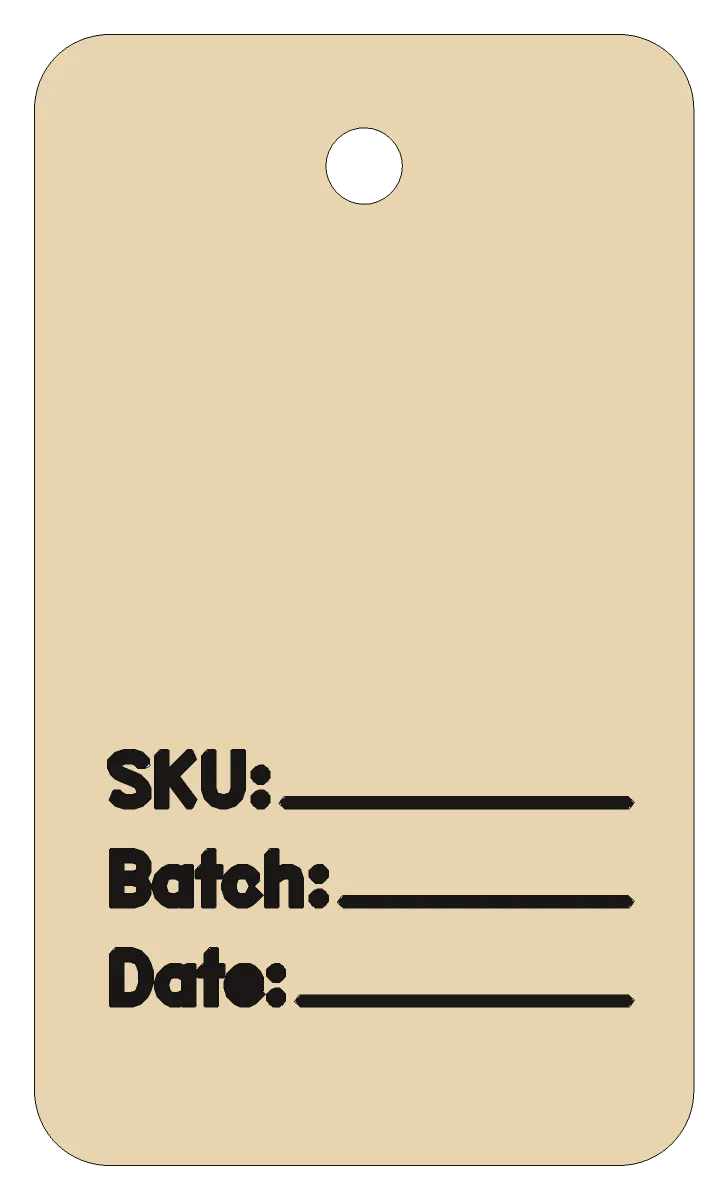

3D render of the Tag design

Tag

1 pieces · Size 60 × 35 mm, 3 mm thick

A tag for a product or a bag: the shop's logo, ruled lines to write on, labelled or plain, and a hole for string or a strap.

Details, 5 options and 3D view →

Server Rack

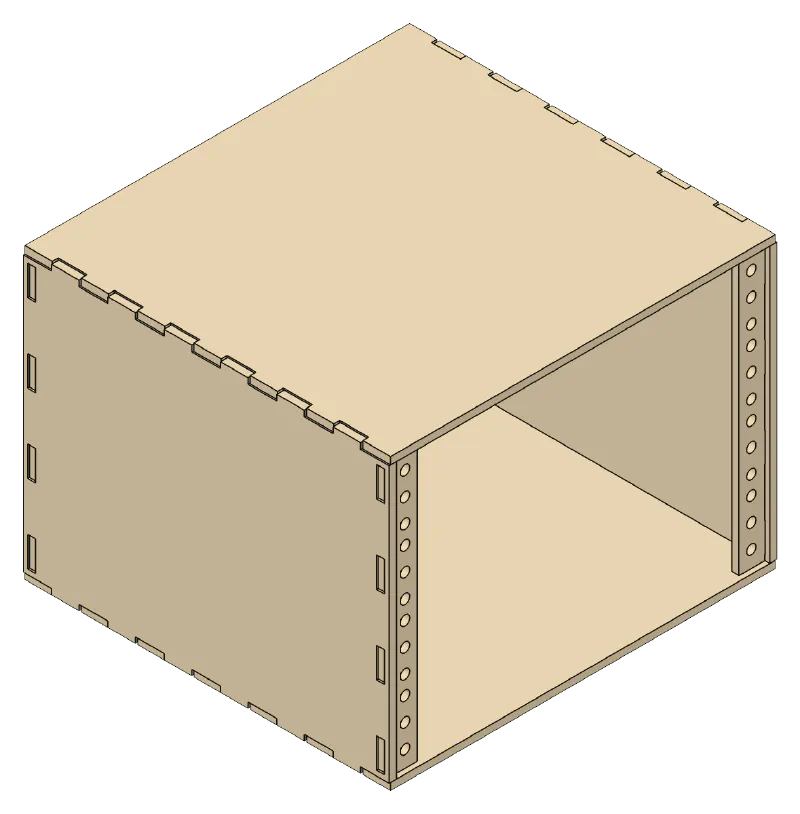

3D render of the 10" Mini Rack design

10" Mini Rack

8 pieces · Rack 4U, 10" · Outside 265 × 198 × 250 mm · Rail holes 48 × M6, nuts behind

A small 10" rack: a finger-jointed box open front and back, with two rails drilled at every rack hole for 10" gear to bolt to.

Details, 4 options and 3D view →

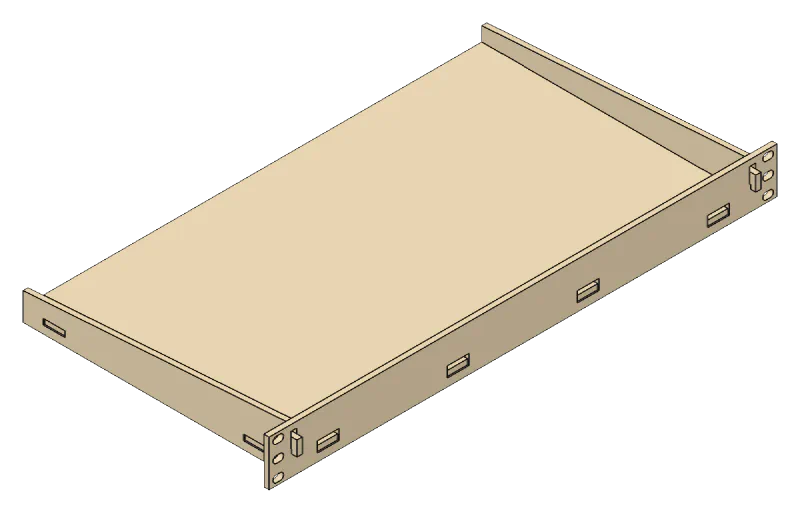

3D render of the Cantilever Rack Shelf design

Cantilever Rack Shelf

4 pieces · Size 260 W × 483 D × 44 H mm · Panel 482.6 × 43.7 mm · Screws 6 slots for M6 × 16 mm · Deck 431 × 250 mm

A 19" or 10" rack shelf hung from the front rails: a deck between two sides that hook onto the face, with an optional back, openings and vents. For light gear such as a modem, a Pi or a small switch.

Details, 1 option and 3D view →

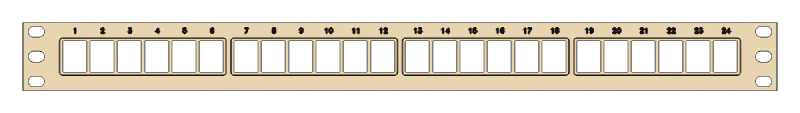

3D render of the Keystone Patch Panel design

Keystone Patch Panel

1 pieces · Size 483 × 44 mm, 5 mm thick · Panel 482.6 × 43.7 mm · Screws 6 slots for M6 × 16 mm · Ports 24 in 4 groups · Pocket depth 3.0 mm

A 19" or 10" keystone patch panel, each group of jack openings sunk in a pocket so the jacks latch on a thin web. Cut on a router.

Details and 3D view →

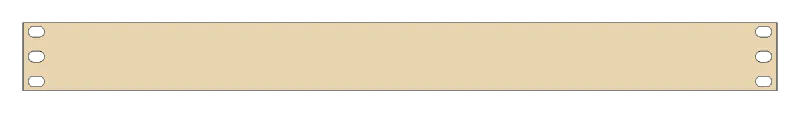

3D render of the Rack Blanking Panel design

Rack Blanking Panel

1 pieces · Size 483 × 44 mm, 5 mm thick · Panel 482.6 × 43.7 mm · Screws 6 slots for M6 × 16 mm

A 19" or 10" rack blanking panel, solid, vented, or cut for standard case fans. It screws to the rails with M6 cage nuts, one screw per unit each side.

Details, 15 options and 3D view →

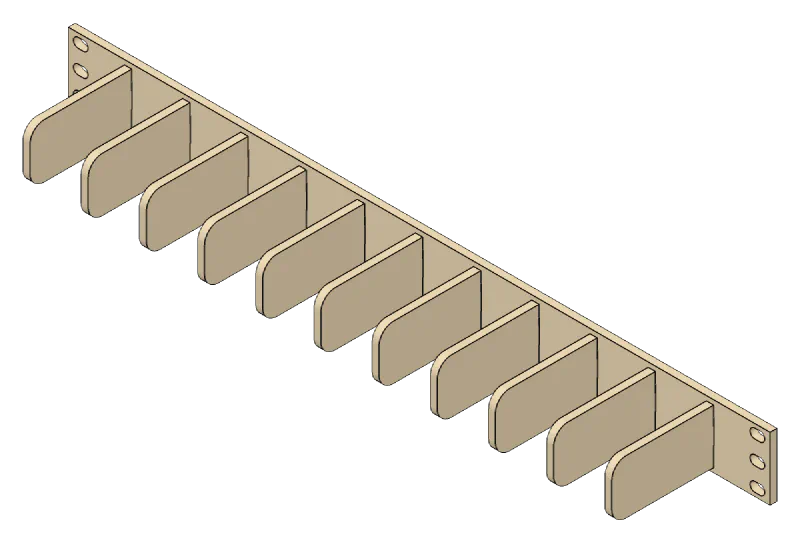

3D render of the Rack Cable Manager design

Rack Cable Manager

12 pieces · Size 483 W × 80 D × 44 H mm · Panel 482.6 × 43.7 mm · Screws 6 slots for M6 × 16 mm · Fingers 11 × 70 mm

A 19" or 10" rack panel with a row of rounded fingers hooked on in front, so patch cords drop between them and run sideways.

Details and 3D view →

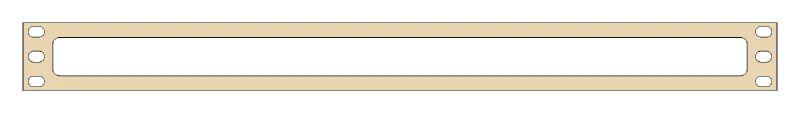

3D render of the Rack Cable Pass-Through design

Rack Cable Pass-Through

1 pieces · Size 483 × 44 mm, 5 mm thick · Panel 482.6 × 43.7 mm · Screws 6 slots for M6 × 16 mm · Opening 443.7 × 24.0 mm

A 19" or 10" rack panel with one plain opening across it for running cables front to back.

Details and 3D view →

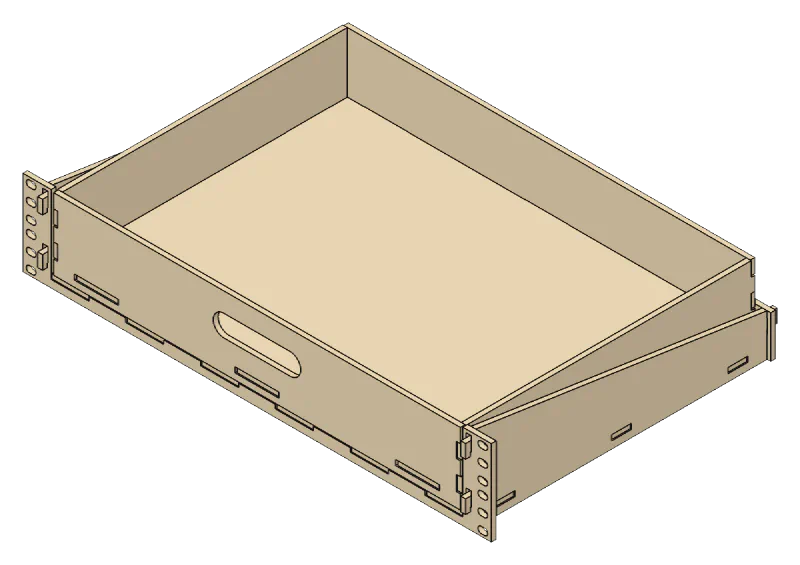

3D render of the Rack Drawer design

Rack Drawer

10 pieces · Size 483 W × 320 D × 88 H mm · Panel 482.6 × 88.1 mm · Screws 12 slots for M6 × 16 mm · Deck 431 × 300 mm · Drawer box 422 × 304 × 74 mm

A 19" or 10" rack drawer: a drawer box sitting in a cantilever rack shelf hung on the front posts, the shelf's face open at the top so the box shows its full height, and a back that catches it.

Details and 3D view →

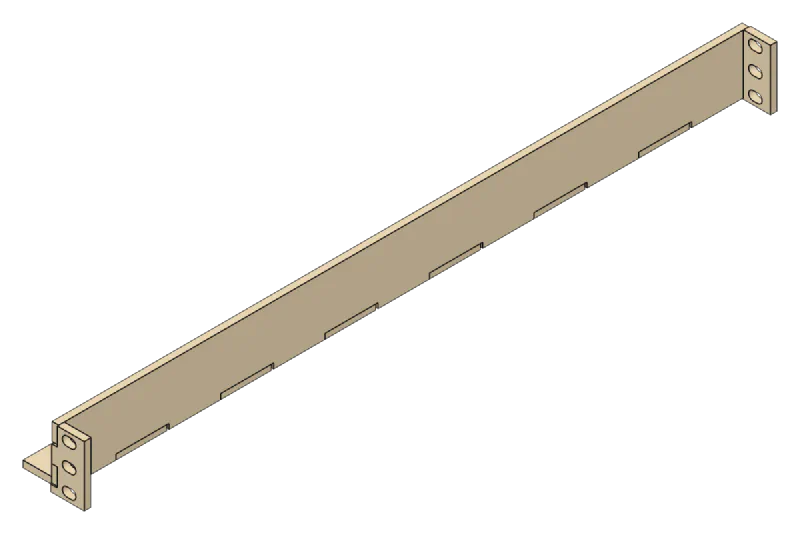

3D render of the Rack Rail design

Rack Rail

4 pieces · Size 49 W × 500 D × 44 H mm · Rail 500 mm deep, 1U · Screws 6 a rail, M6 or 10-32

A shelf rail for a four-post rack: a finger-jointed web and ledge with an ear at each end that screws to the posts through three M6 or 10-32 slots a unit. Cut two for a set.

Details and 3D view →

Want something that isn't here? Bespoke work is most of what we do.

Request a Quote
